1996 Yamaha Vmax 600 DX (VX600DXW) Ski Diagram

← All diagrams

Find the part on the Ski diagram for your 1996 Yamaha Vmax 600 DX (VX600DXW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

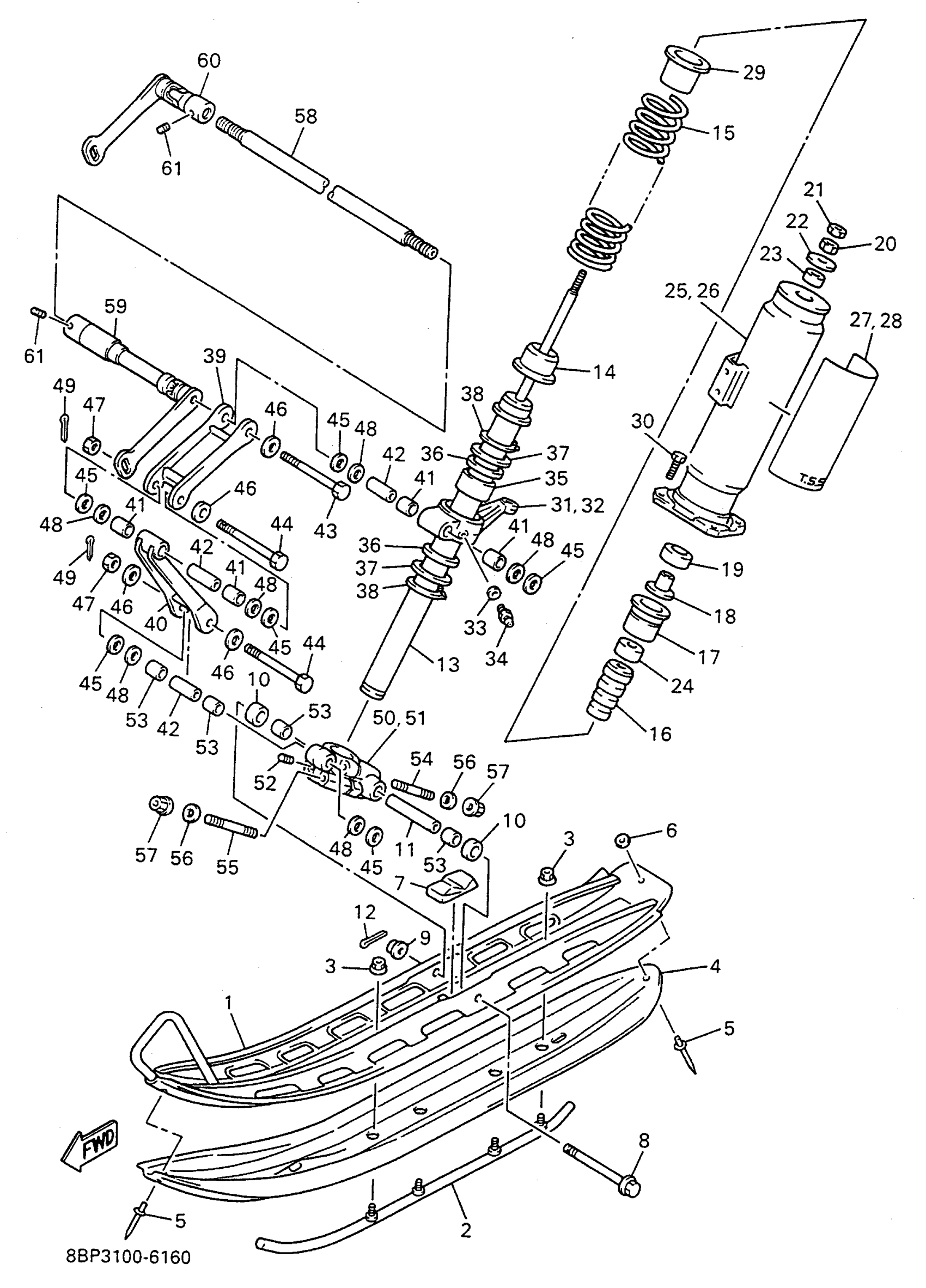

1996 Yamaha Vmax 600 DX (VX600DXW) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8AB-23710-01-00

1
Out of stock

2

RUNNER 1 (8CM-23731-00-00)

8CM-23731-00-XX

1
Out of stock

3

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

4

RUNNER 2

8AB-23732-11-RD

1
Out of stock

5

RIVET, BLIND(89A)

90267-48160-00

1
Out of stock

6

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

7

STOPPER 1

8AB-23743-01-00

1
Out of stock

8

BOLT, WASHER BASED(8AB)

90105-10712-00

1
Out of stock

9

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

10

COLLAR

90387-1402C-00

1
Out of stock

11

COLLAR(8AB)

90387-1002P-00

1
Out of stock

12

PIN, COTTER

91490-20025-00

1
Out of stock

13

DAMPER SUB ASSEMBLY

8BN-22401-00-00

1
Out of stock

14

SEAT, SPRING 2

82M-23777-00-00

—
Out of stock

15

SPRING, COMPRESSION

90501-783J6-00

1
Out of stock

16

BUMP, STOP

89L-22493-00-00

—
Out of stock

17

PLATE, BACK UP

8AB-23788-00-00

1
Out of stock

18

COLLAR(82M)

90387-084R1-00

—
Out of stock

19

WASHER

82M-23779-00-00

—
Out of stock

20

. NUT

90170-08220-00

1
Out of stock

21

NUT(6TA)

95337-08600-00

—
Out of stock

22

WASHER, PLATE(82M)

90201-080L1-00

—
Out of stock

23

COLLAR

90387-1702A-00

1
Out of stock

24

COLLAR

90387-1102B-00

1
Out of stock

25

HOLDER,ABSORBER

8AB-2376J-10-00

1
Out of stock

26

HOLDER,ABSORBER 2

8AB-2377J-10-00

1
Out of stock

27

EMBLEM 15

8BB-77371-00-00

1
Out of stock

28

EMBLEM 15

8BB-77371-00-00

1
Out of stock

29

PROTECTOR

8AB-2376R-01-00

1
Out of stock

29

PROTECTOR

8CA-2376R-00-00

1
Out of stock

30

BOLT, HEXAGON

97017-06020-00

—
Out of stock

31

ARM, OUTSIDE 1

82M-23851-00-00

—
Out of stock

32

ARM, OUTSIDE 2 (R, H)

82M-23852-00-00

1
Out of stock

33

WASHER, PLATE (8U7)

90201-067F9-00

—
Out of stock

34

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

35

BUSH, BIMETAL FORMED (8U7)

90384-53175-00

—
Out of stock

36

OIL SEAL (8U7)

93109-53036-00

—
Out of stock

37

WASHER, PLATE(8W1)

90201-535H6-00

—
Out of stock

37

WASHER, PLATE (8L9)

90201-536A1-00

—
Out of stock

38

CIRCLIP (8L9)

93410-52061-00

—
Out of stock

39

ARM, FRONT 1

8AB-2382E-00-00

1
Out of stock

40

ARM, FRONT 2

8AB-2382F-00-00

1
Out of stock

41

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

—
Out of stock

42

COLLAR(89A)

90387-101Y9-00

—
Out of stock

43

BOLT

90101-10040-00

1
Out of stock

44

BOLT, WITH HOLE

90102-10077-00

1
Out of stock

45

WASHER, PLATE (8M6)

90201-105A8-00

—
Out of stock

46

WASHER, PLATE (8M6)

90201-115A7-00

—
Out of stock

47

NUT, SELF LOCKING (3G1)

90185-10091-00

—
Out of stock

48

WASHER(82M)

90209-14296-00

—
Out of stock

49

PIN, COTTER

91490-20025-00

1
Out of stock

50

BRACKET 1

84M-2376E-00-00

—
Out of stock

51

BRACKET 2

84M-2377E-00-00

—
Out of stock

52

BOLT, SET (8K2)

90113-06039-00

—
Out of stock

53

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

—
Out of stock

54

BOLT, STUD 3

95617-08655-00

—
Out of stock

55

BOLT, STUD 3

95617-08640-00

—
Out of stock

56

WASHER(6TA)

92907-08600-00

—
Out of stock

57

NUT, NYLON

95717-08300-00

—
Out of stock

58

BAR,STABLZR FRONT

8AB-2386E-01-00

1
Out of stock

59

JOINT, STABILIZER 1

8CL-2385L-00-00

—
Out of stock

60

JOINT, STABILIZER 2

8CL-2385M-00-00

1
Out of stock

61

BOLT, SET (8K2)

90113-06039-00

—
Out of stock
