SECONDARY SHEAVE

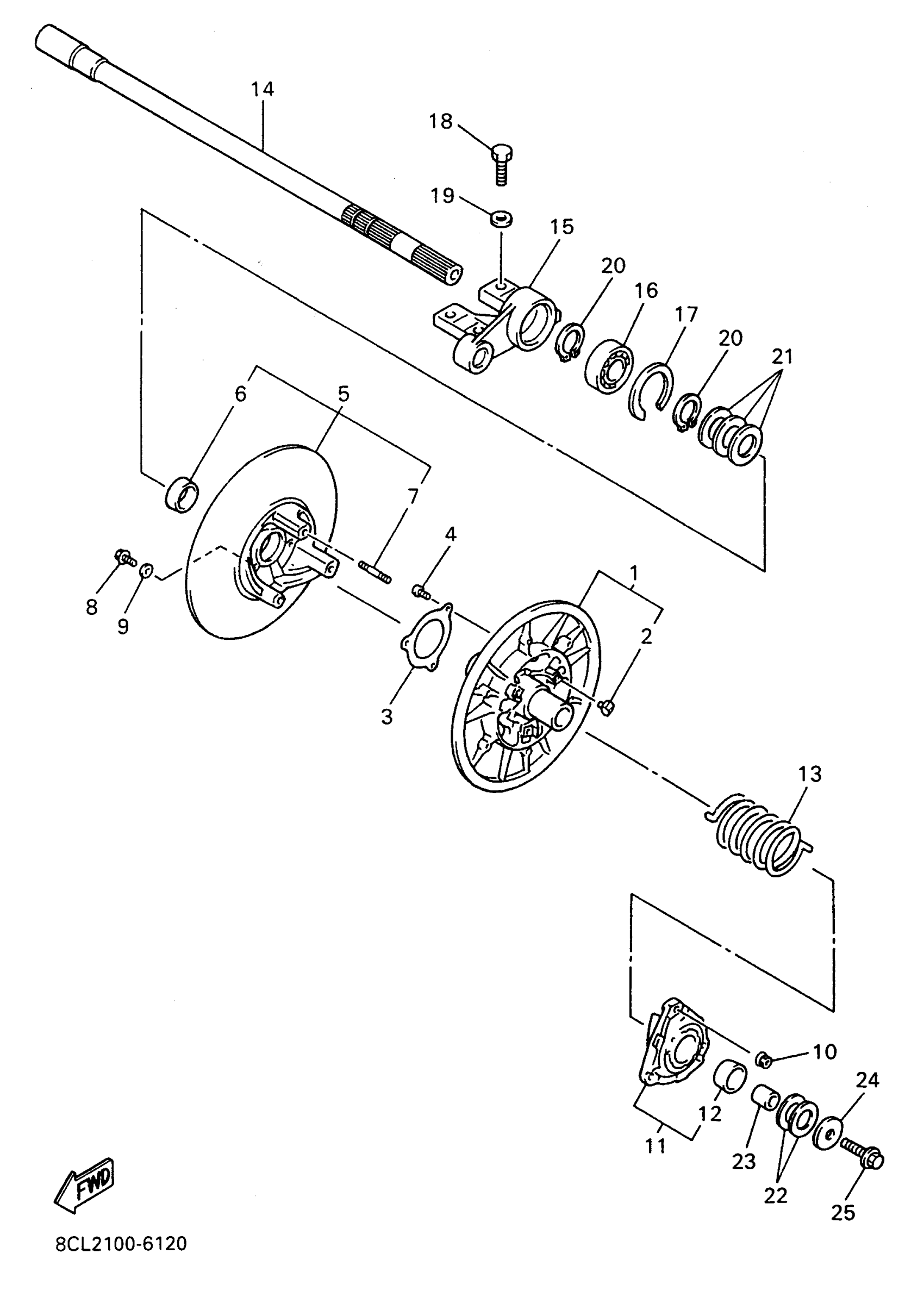

Yamaha VX600DXW (VMAX 600 DX) 1996 SECONDARY SHEAVE Diagram
#
1
SECONDARY FIXED SHEAVE COMP.
8BV-17660-10-00
Unavailable
2
SHOE, RAMP
8AV-17688-10-00
$32.99
3
STOPPER, HOLDER
8BV-17656-00-00
$22.99
4
SCREW, BINDING
98907-06016-00
$9.49
5
SECONDARY SLIDING SHEAVE
8BV-17670-10-00
Unavailable
6
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
7
BOLT, STUD 3
95617-08630-00
$4.99
8
BOLT, WASHER BASED(8BN)
90105-06734-00
$3.50
9
WASHER, PLATE (22K)
90201-061H1-00
$4.72
9
WASHER, PLATE (371)
90201-06431-00
$5.60
10
NUT(8BN)
90179-08655-00
$10.49
11
SEAT SPRING SET
8BV-17604-11-00
Unavailable
11
SEAT SPRING SET
8BV-17604-31-00
$159.99
11
SEAT SPRING SET
8BV-17604-91-00
Unavailable
12
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
13
SPRING, TORSION(8BF)
90508-500B1-00
Unavailable
13
SPRING, TORSION(8AB)
90508-536A9-00
Unavailable
13
SPRING, TORSION(8BN)
90508-556A2-00
Unavailable
13
SPRING, TORSION(8BT)
90508-556A7-00
Unavailable
14
SHAFT,SECONDARY
8CL-17681-01-00
Unavailable
15
HOUSING, BEARING
8AB-47631-00-00
Unavailable
16
BEARING(83R)
93306-20582-00
Unavailable
17
CIRCLIP(26H)
99009-52500-00
Unavailable
18
BOLT, HEXAGON
97017-08020-00
Unavailable
19
WASHER(6TA)
92907-08600-00
Unavailable
20
CIRCLIP (256)
93410-25017-00
Unavailable
21
WASHER, PLATE (8R6)
90201-252F1-00
Unavailable
21
WASHER, PLATE (888)
90201-25526-00
Unavailable
21
WASHER, PLATE (888)
90201-25527-00
Unavailable
22
WASHER, PLATE (T=0.5)
90201-222F0-00
Unavailable
22
WASHER, PLATE (8L8)
90201-225A4-00
Unavailable
23
COLLAR
90387-1405J-00
Unavailable
24
WASHER, PLATE(42X)
90201-105H3-00
Unavailable
25
BOLT, WASHER BASED
90105-10741-00
Unavailable
