Description

Price

1

FRAME, SLIDING

8CR-W4741-00-00

$328.83

2

136 (DZ) RED HYFAX

SMA-8CW92-70-DZ

Unavailable

3

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

4

RUNNER, SLIDING 2

8ED-47422-00-00

$42.54

5

RIVET BLIND

90267-48194-00

$2.20

6

WASHER, PLATE(8CM)

90201-047R8-00

$2.31

7

DAMPER 2

8CM-47457-00-00

$8.78

8

SPACER

8CM-47341-00-00

$7.37

9

PLATE, DAMPER

8AX-47458-00-00

$8.08

10

RIVET, BLIND (8K4)

90267-48062-00

$3.38

11

ARM, PIVOT 1

8CV-47331-01-00

$286.00

12

DAMPER 1

8DF-47456-10-00

Unavailable

13

WASHER, PLATE(8CJ)

90201-210U0-00

$7.77

14

SHAFT 1

8CR-47465-00-00

$77.26

15

BUSH, SOLID(8CJ)

90381-19111-00

$11.82

16

BOLT (8V0)

90109-10771-00

$5.00

17

BOLT, FLANGE

90105-10029-00

$3.23

18

COLLAR(8CJ)

90387-1009T-00

$19.80

19

BUSH, SOLID(8CJ)

90381-15112-00

$7.03

20

BRACKET 1

8CR-47415-00-00

Unavailable

21

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

22

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

23

HOOK 3

8CR-47448-00-00

$14.94

24

NUT, FLANGE(JN5)

95707-08500-00

$1.49

25

STOPPER 1

8CR-47495-00-00

$58.96

26

BOLT, HEXAGON

97017-06025-00

$2.98

27

WASHER, PLATE

90201-06747-00

$6.17

28

NUT, NYLON

95707-06300-00

$3.20

29

SHOCK ABSORBER 2

8CR-47481-00-00

Unavailable

30

COLLAR (8U7)

90387-145G7-00

$9.65

31

COLLAR (8U7)

90387-105G5-00

$7.35

32

BOLT(88R)

90101-10738-00

$6.28

33

NUT, SELF LOCKING (23X)

90185-10120-00

$4.91

34

NUT, U

95617-10100-00

$6.18

35

BRACKET 4

8CR-47418-10-00

Unavailable

36

BRACKET 5

8DF-47463-01-00

Unavailable

37

BRACKET 6

8DF-47464-01-00

Unavailable

38

BOLT, FLANGE

95817-10030-00

$6.17

39

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

40

SHAFT 4

8CR-47486-00-00

Unavailable

41

WASHER, PLATE (17K)

90201-106F2-00

$7.66

42

BOLT, FLANGE

95817-10030-00

$6.17

43

BRACKET 2

8CR-47416-10-00

Unavailable

44

SHAFT 6

8CR-47488-00-00

Unavailable

45

BUSH, SOLID(8CM)

90381-22099-00

$9.85

46

WASHER, PLATE(1KE)

90201-207J5-00

$2.32

47

BOLT (8V0)

90109-10771-00

$5.00

48

ARM, PIVOT 2

8CR-47332-10-00

$225.54

49

SHAFT 2

8CR-47475-00-00

$105.03

50

WASHER, PLATE (8V2)

90201-251G8-00

$7.49

51

WASHER, PLATE(8CJ)

90201-250T6-00

$7.43

52

BOLT (8V0)

90109-10771-00

$5.00

53

BUSH, SOLID(8CJ)

90381-28108-00

$12.18

54

BRACKET, REAR 1

8CR-47426-11-00

Unavailable

55

BRACKET, REAR 2

8CR-47425-00-00

Unavailable

56

BRACKET 3

8CR-47417-01-00

Unavailable

57

BOLT, FLANGE

95817-10030-00

$6.17

58

SHAFT 3

82M-47485-02-00

Unavailable

59

WASHER PLATE (789)

90201-10136-00

$7.26

60

NUT, SELF-LOCKING

90185-08169-00

$7.09

61

BOLT, FLANGE

95827-08220-00

Unavailable

62

COLLAR (8U7)

90387-083G6-00

$9.75

63

SHOCK ABSORBER

8CR-47480-01-00

Unavailable

64

SPRING 1

8CR-47489-00-00

$260.91

64

SPRING 1 (K=34-52N/MM)

8CR-47489-10-00

Unavailable

65

BOLT

90101-10782-00

Unavailable

66

COLLAR(8CJ)

90387-1009S-00

$18.00

67

WASHER, PLATE(8BT)

90201-100U1-00

Unavailable

68

BUSH, SOLID(8CM)

90381-14101-00

$7.48

69

COLLAR(8CM)

90387-1404R-00

$28.72

70

NUT, U

95617-10100-00

$6.18

71

ROD, RELAY

8CR-47494-01-00

Unavailable

72

BUSH, SOLID(8CJ)

90381-14109-00

$7.60

73

COLLAR(87A)

90387-100X3-00

$3.49

74

BOLT, FLANGE

95817-10035-00

$6.85

75

BOLT, FLANGE

95814-10040-00

$3.69

76

WASHER, PLATE(8BT)

90201-100U1-00

Unavailable

77

BOLT(88R)

90101-10738-00

$6.28

78

COLLAR (8U7)

90387-105G5-00

$7.35

79

ROD, CONTROL 1

8CR-4745A-01-00

$68.28

80

ROD, CONTROL 2

8CR-4745B-00-00

Unavailable

81

BUSH, BIMETAL FORMED(8CJ)

90384-16251-00

$6.17

82

WASHER, PLATE(8BT)

90202-16232-00

$6.82

83

WASHER, PLATE(8CJ)

90202-16231-00

Unavailable

84

WASHER, PLATE (17K)

90201-106F2-00

$7.66

85

BOLT(6TD)

97017-10025-00

$6.82

86

NIPPLE, GREASE

93700-06M03-00

$7.15

87

BUSH, SOLID(8CM)

90380-22232-00

$20.92

88

BUSH, SOLID(8CJ)

90380-28235-00

$24.80

89

SCREW, REAR PIVOT

8DF-47367-09-00

$19.29

90

WASHER, PLATE(JN9)

90201-100S2-00

$6.14

91

WASHER, PLATE

90201-101U2-00

$5.37

92

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

93

COLLAR 3

8K2-47479-01-00

$25.69

94

NUT, NYLON

95707-10300-00

$6.68

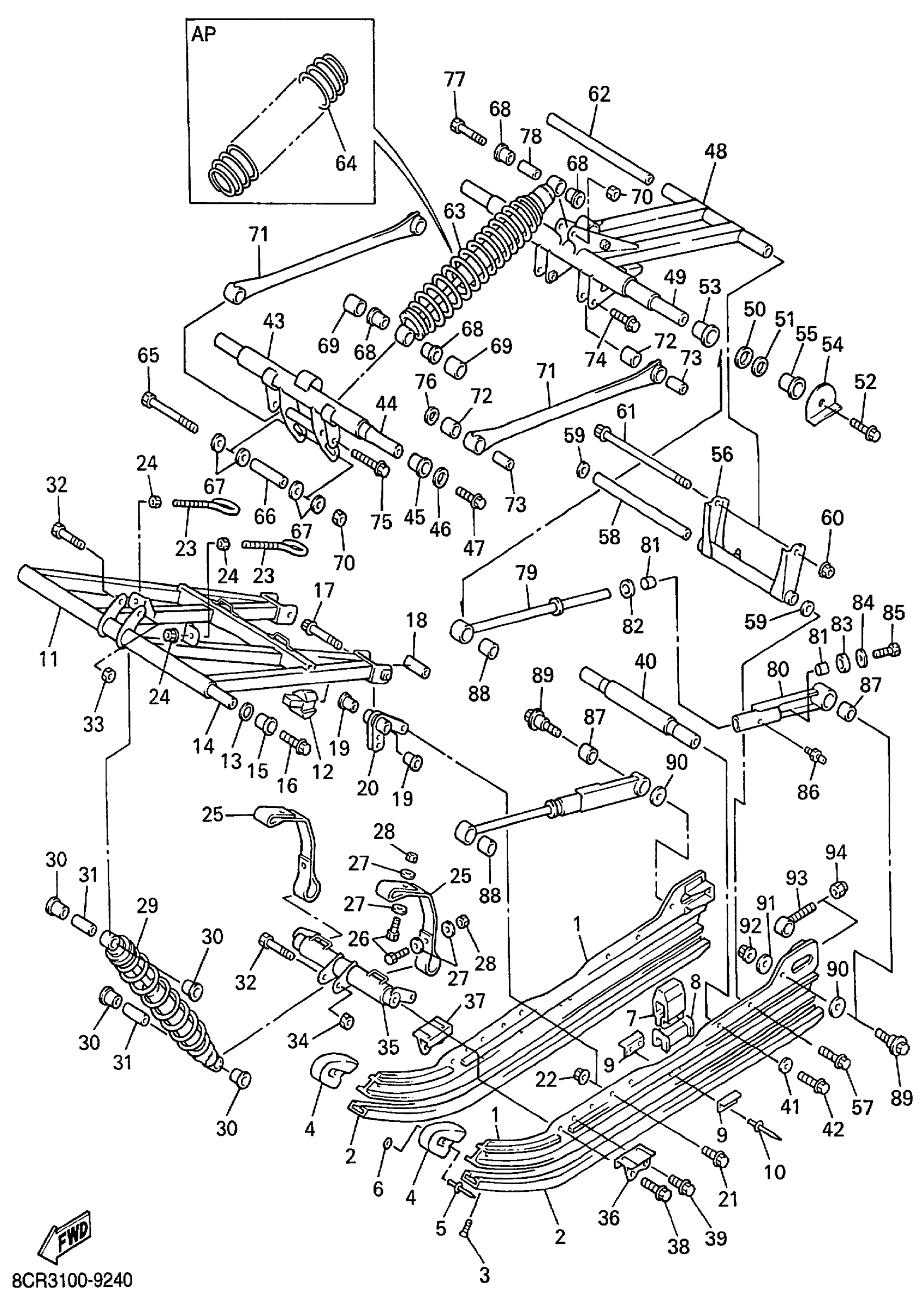

Yamaha VX600C (VMAX 600) 8CR3 1999 TRACK SUSPENSION 2 Diagram

FRAME, SLIDING

136 (DZ) RED HYFAX

SCREW, CROSSRECESS (8G6)

RUNNER, SLIDING 2

RIVET BLIND

WASHER, PLATE(8CM)

DAMPER 2

SPACER

PLATE, DAMPER

RIVET, BLIND (8K4)

ARM, PIVOT 1

DAMPER 1

WASHER, PLATE(8CJ)

SHAFT 1

BUSH, SOLID(8CJ)

BOLT (8V0)

BOLT, FLANGE

COLLAR(8CJ)

BUSH, SOLID(8CJ)

BRACKET 1

BOLT, FLANGE(3GD)

NUT, SELF-LOCKING(JN5)

HOOK 3

NUT, FLANGE(JN5)

STOPPER 1

BOLT, HEXAGON

WASHER, PLATE

NUT, NYLON

SHOCK ABSORBER 2

COLLAR (8U7)

COLLAR (8U7)

BOLT(88R)

NUT, SELF LOCKING (23X)

NUT, U

BRACKET 4

BRACKET 5

BRACKET 6

BOLT, FLANGE

BOLT, FLANGE(8AB)

SHAFT 4

WASHER, PLATE (17K)

BOLT, FLANGE

BRACKET 2

SHAFT 6

BUSH, SOLID(8CM)

WASHER, PLATE(1KE)

BOLT (8V0)

ARM, PIVOT 2

SHAFT 2

WASHER, PLATE (8V2)

WASHER, PLATE(8CJ)

BOLT (8V0)

BUSH, SOLID(8CJ)

BRACKET, REAR 1

BRACKET, REAR 2

BRACKET 3

BOLT, FLANGE

SHAFT 3

WASHER PLATE (789)

NUT, SELF-LOCKING

BOLT, FLANGE

COLLAR (8U7)

SHOCK ABSORBER

SPRING 1

SPRING 1 (K=34-52N/MM)

BOLT

COLLAR(8CJ)

WASHER, PLATE(8BT)

BUSH, SOLID(8CM)

COLLAR(8CM)

NUT, U

ROD, RELAY

BUSH, SOLID(8CJ)

COLLAR(87A)

BOLT, FLANGE

BOLT, FLANGE

WASHER, PLATE(8BT)

BOLT(88R)

COLLAR (8U7)
