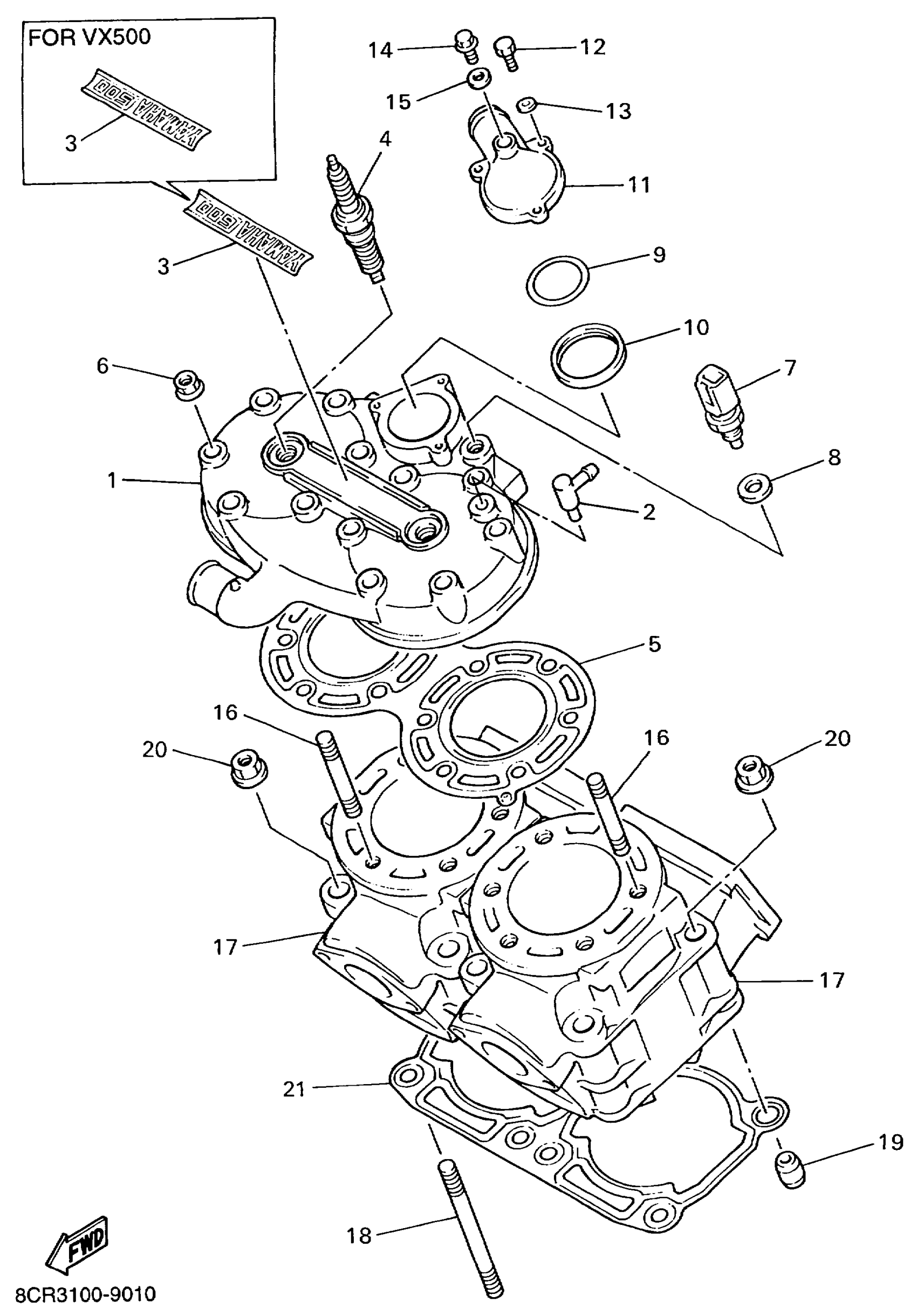

Yamaha VX600C (VMAX 600) 8CR3 1999 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

99999-03190-00

$485.63

1

HEAD, CYLINDER 1

8CR-11111-10-00

Unavailable

2

JOINT 1

8CH-12469-00-00

$31.77

3

EMBLEM

8CJ-1111K-00-00

Unavailable

3

EMBLEM

8CR-1111K-00-00

Unavailable

4

BR9ECS NGK SPLUG 10PK

BR9-ECS0P-C0-00

$7.06

4

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

$3.96

5

GASKET, CYLINDER HEAD 1

8AB-11181-00-00

Unavailable

5

GASKET, CYLINDER HEAD 1

8CR-11181-00-00

$101.43

6

NUT, FLANGE(JN5)

95707-08500-00

$1.49

7

THERMOSENSOR ASSY

8CC-85790-01-00

$86.91

8

WASHER, PLATE

90201-12790-00

$6.85

9

WASHER, PLATE (8U9)

90201-345G2-00

$10.68

10

SEAL, THERMOSTAT

8A7-12412-01-00

$14.25

11

COVER, THERMOSTAT

82M-12413-00-00

Unavailable

12

BOLT, HEXAGON

97017-06020-00

$2.55

13

WASHER(6TA)

92907-06600-00

$0.78

14

BOLT, FLANGE

95817-06012-00

$1.49

15

GASKET (4V2)

90430-06166-00

$3.45

16

BOLT, STUD (5X4)

90116-08392-00

$3.84

17

CYLINDER 1

8CJ-11311-00-00

Unavailable

17

CYLINDER 1

8CR-11311-00-00

$741.99

18

BOLT, STUD(8AB)

90116-10574-00

Unavailable

19

PIN, DOWEL

99530-14016-00

$3.20

20

NUT, FLANGE(8AB)

95707-10500-00

$1.66

21

GASKET, CYLINDER

8CR-11351-00-00

$53.63
