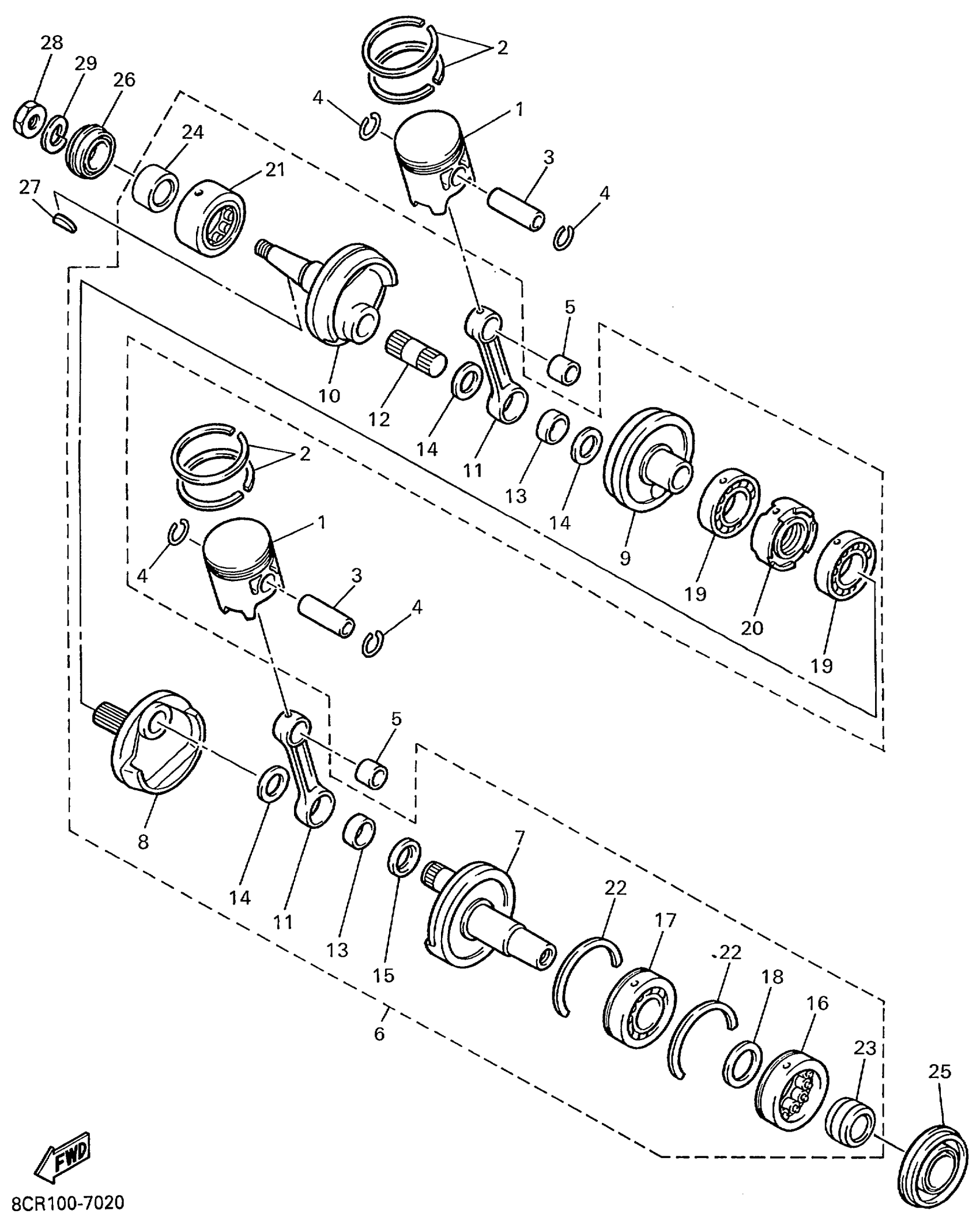

Yamaha VX600C (VMAX 600) 8CR3 1999 CRANKSHAFT PISTON Diagram

#

Description
Price

1

PISTON (STD)

8CJ-11631-00-A0

$168.25

1

PISTON (STD)

8CR-11631-10-D0

$269.82

2

PISTON RING SET (STD)

8AB-11603-01-00

$64.34

2

PISTON R1NG SET (STD)

8CW-11603-00-00

$96.51

3

PIN, PISTON

8CA-11633-00-00

Unavailable

3

PIN, PISTON

8H8-11633-00-00

$30.72

4

CIRCLIP (8H0)

93450-21053-00

$3.43

5

BRG,CYL-CAL ROLLER 25G KY

93310-320G0-00

$40.32

6

CRANKSHAFT ASSY

8CR-11400-02-00

Unavailable

7

CRANK 1

82M-11412-02-00

Unavailable

8

. CRANK 2

82M-11422-00-00

Unavailable

9

. CRANK 3

82M-11432-00-00

Unavailable

10

. CRANK 4

82M-11442-00-00

Unavailable

11

. ROD, CONNECTING

82M-11651-00-00

Unavailable

12

. PIN, CRANK 1

82M-11681-00-00

Unavailable

13

BEARING,CYL.(8AB)

93310-525S1-00

Unavailable

14

WASHER(8AY)

90209-25325-00

$17.08

15

WASHER, CRANK PIN

8AY-11685-00-00

Unavailable

16

BEARING(8CJ)

93399-99944-00

$210.45

17

. BEARING

93306-30720-00

Unavailable

18

WASHER, PLATE (8R9)

90201-357E4-00

$2.95

19

BEARING (8U9)

93306-20712-00

$69.76

20

SEAL, LABYRINTH 1

82M-11515-00-00

$61.55

21

BEARING(8CJ)

93399-99945-00

$347.26

22

CIRCLIP (834)

93440-80023-00

$12.78

23

BEARING 1

8CR-11428-01-00

Unavailable

24

. BEARING 2

8CR-11429-00-00

Unavailable

25

OIL SEAL(8AV)

93103-35176-00

$43.54

26

OIL SEAL(82M)

93103-32153-00

$26.02

27

KEY, WOODRUFF (8R9)

90280-05033-00

$9.10

28

NUT

90170-16425-00

$6.60

29

WASHER(6TD)

92907-16600-00

$5.86
