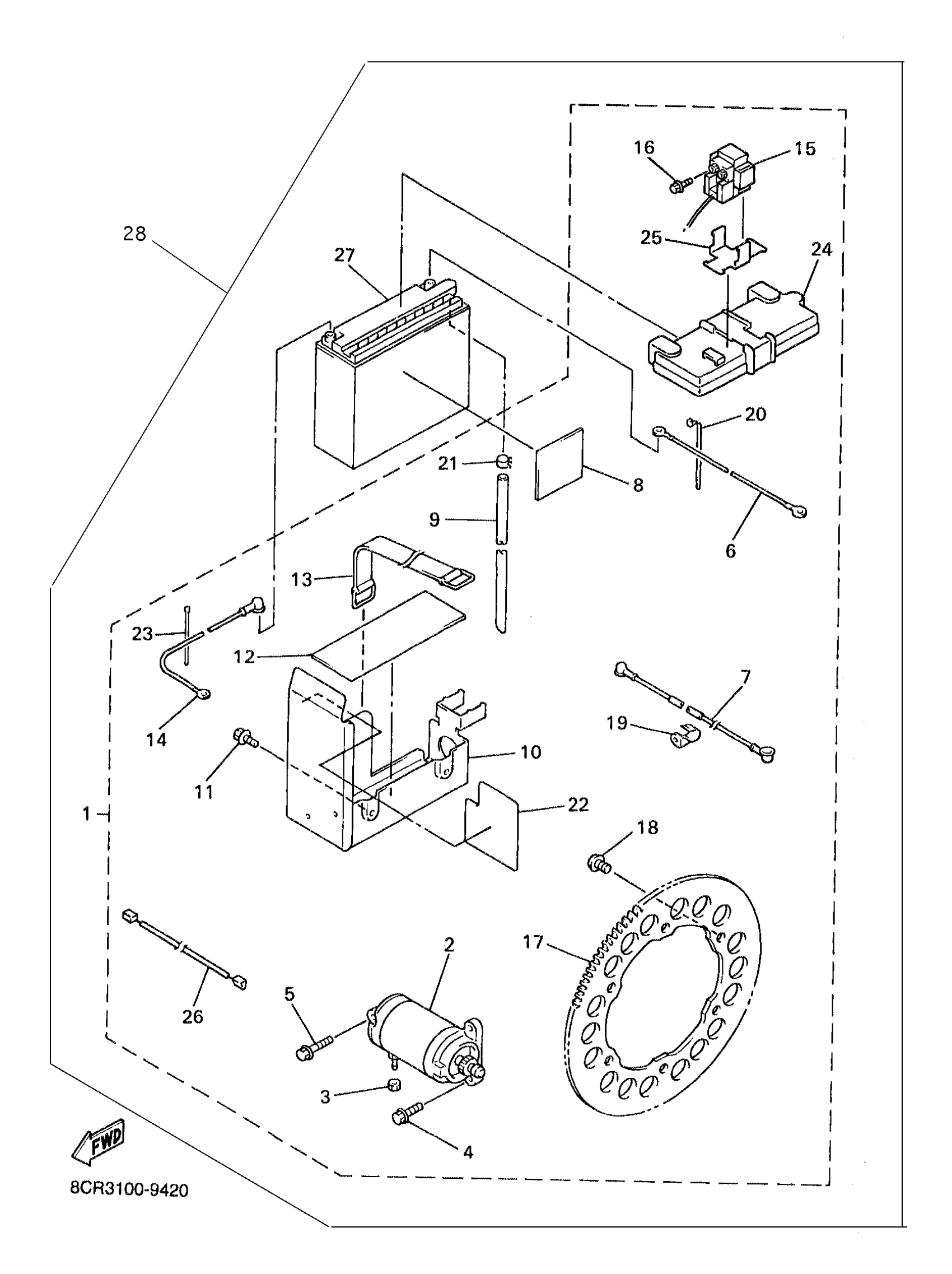

Yamaha VX600C (VMAX 600) 8CR3 1999 ALTERNATE ELECTRICAL 1 Diagram

#

Description
Price

1

ELECTRIC STARTER KIT

8CR-W8180-10-00

Unavailable

2

STARTING MOTOR ASSY

8CW-81800-01-00

Unavailable

3

NUT(6TA)

95317-06600-00

$2.69

4

BOLT, SMALL FLANGE

95027-08030-00

$3.00

5

BOLT, FLANGE(4ES)

95027-08080-00

$6.80

6

WIRE, MINUS LEAD

8CY-82116-00-00

Unavailable

7

. WIRE, LEAD

8DY-82117-00-00

Unavailable

8

DAMPER

8CW-82176-00-00

$6.14

9

PIPE (L320)

8CW-8235W-01-00

Unavailable

10

. BRACKET, BATTERY

8CW-2199G-00-00

Unavailable

11

BOLT (796)

90109-06513-00

Unavailable

12

SEAT, BATTERY

84N-82122-00-00

$4.38

13

BAND, BATTERY

1E6-82131-00-00

$21.34

14

WIRE, PLUS LEAD

8DY-82115-00-00

$21.60

15

STARTER RELAY ASSY (RC19-016)

3EL-81940-02-00

$28.11

16

BOLT, SMALL FLANGE

95027-06008-00

$5.60

17

GEAR 1

8DM-1760A-18-00

$377.09

18

BOLT,CAP

8DV-17617-10-00

$3.49

19

. CLAMP

90465-10381-00

Unavailable

20

CLAMP(4FM)

90464-15195-00

$2.77

21

CLIP(41W)

90467-08092-00

$6.86

22

. SHIELD, HEAT

8CW-2199H-00-00

Unavailable

23

CLAMP(4FM)

90464-15195-00

$2.77

24

COVER, BATTERY

8DX-82129-01-00

Unavailable

25

. HOLDER, RELAY

8CY-81952-00-00

Unavailable

26

. WIRE, SUB LEAD

8DY-82509-00-00

Unavailable

27

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

$152.99

28

STARTING MOTOR KIT

8CR-W8180-15-KT

Unavailable
