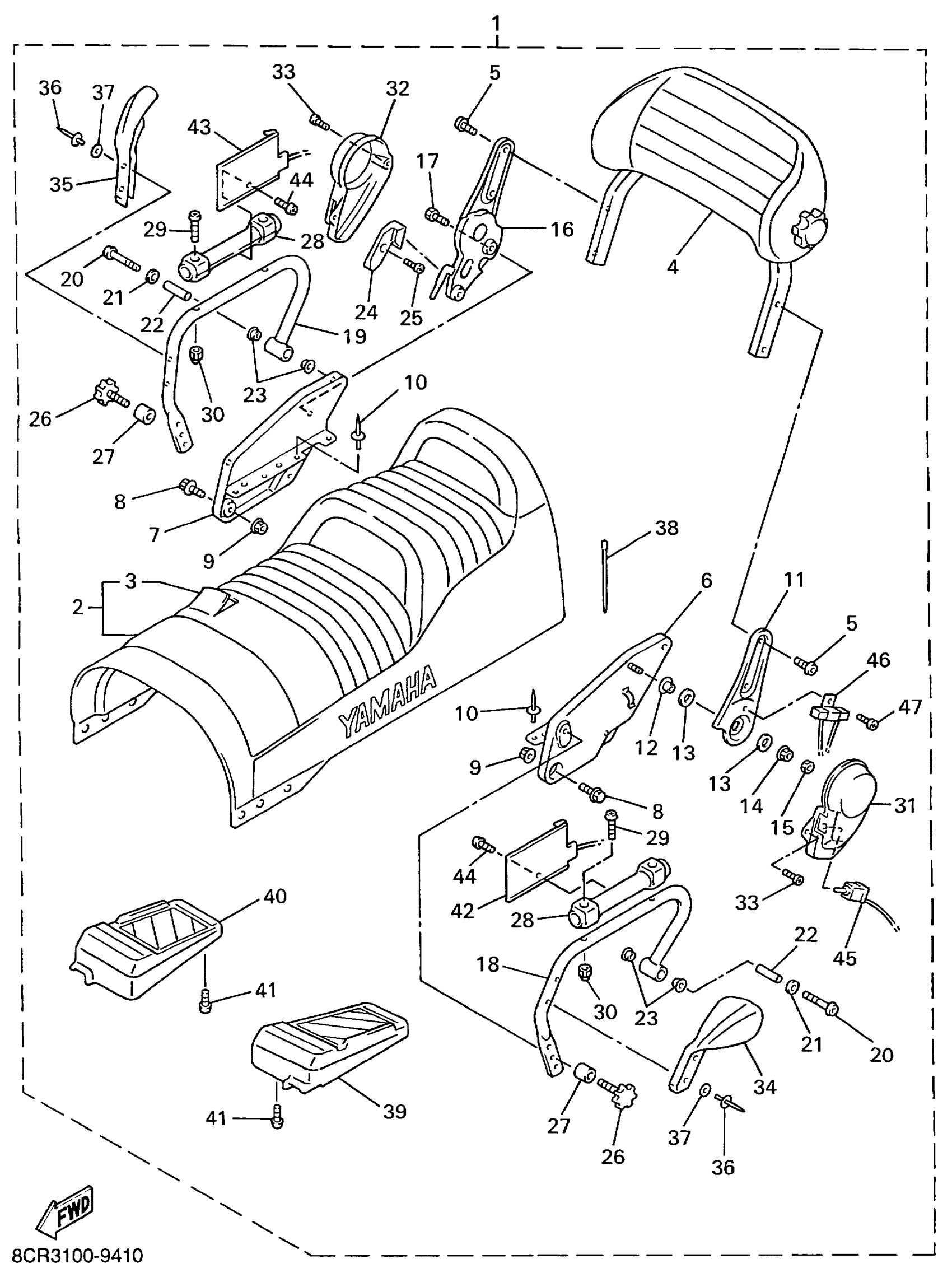

Yamaha VX600C (VMAX 600) 8CR3 1999 ALTERNATE DX SEMI DOUBLE SEAT Diagram

#

Description
Price

1

DELUXE 2-UP SEAT ASSY

8CR-W247R-10-00

Unavailable

2

. DOUBLE SEAT ASSY

8CW-24730-20-00

Unavailable

3

.. COVER, SEAT

8CW-2470F-20-00

Unavailable

4

SEAT BACK ASSY

8DM-24790-00-00

Unavailable

5

BOLT, BUTTON HEAD

92017-10016-00

$6.42

6

STAY, FRONT 1

8DM-2474F-00-00

$103.98

7

STAY, FRONT 2

8DM-2474G-00-00

$103.98

8

BOLT, FLANGE

95817-08014-00

$1.94

9

NUT, FLANGE(JN5)

95707-08500-00

$1.49

10

RIVET, BLIND(8CH)

90267-47187-00

$1.84

11

ARM 2

8DM-2477R-00-00

$24.69

12

COLLAR(4BP)

90387-083Y8-00

$5.32

13

WASHER, PLATE

90202-12236-00

$3.60

14

NUT, FLANGE(JN5)

95707-08500-00

$1.49

15

NUT, HEXAGON SMALL

95317-08700-00

$7.05

16

SEAT LEVER ASSY

8DM-24760-00-00

$203.83

17

BOLT, HEXAGON

97027-10014-00

$2.20

18

BRACKET, ASSIST GRIP 1

8DM-2474H-10-00

$78.20

19

. BRACKET, ASSIST GRIP 2

8DM-2474J-10-00

Unavailable

20

BOLT,BUTTON

92017-10070-00

$4.14

21

WASHER, PLATE(3BM)

90201-105R9-00

$6.58

22

COLLAR 802473690000

90387-10090-00

$17.48

23

COLLAR (8U7)

90387-145G7-00

$9.65

24

LEVER, SEAT

8DM-2477F-00-00

$9.09

25

SCREW, TAPPING(JN5)

97707-40008-00

Unavailable

26

BODY, SEAT LOCK

8CW-2479H-00-00

$25.69

27

DAMPER, SEAT

8CW-24737-00-00

$9.88

28

. ASSIST, GRIP

8CW-2474A-00-00

Unavailable

29

SCREW, BINDING

98907-06035-00

$7.48

30

NUT, CROWN(2GM)

90176-06065-00

$6.91

31

COVER

8DM-24796-00-00

$9.18

32

COVER,2

8DM-2475X-01-00

$16.55

33

SCREW, TRUSS TAP.

97707-40012-00

$6.69

34

PROTECTOR,1

8DM-2476U-00-00

$6.46

35

PROTECTOR,2

8DM-2476V-00-00

$6.46

36

RIVET, BLIND (8M6)

90267-48051-00

$1.88

37

WASHER, PLAIN (3GDF)

90201-051K1-00

$6.46

38

CLAMP(4FM)

90464-15195-00

$2.77

39

FOOTREST, REAR 1

8DM-27431-03-00

$30.91

40

FOOTREST, REAR 2

8DM-27441-03-00

$34.34

41

SCREW, TAPPING(4TV)

90167-05078-00

$5.12

42

ASSIST GRIP WARMER ASSY, 1

8DM-2474B-00-00

Unavailable

43

ASSIST GRIP WARMER ASSY, 2

8DM-2474C-00-00

$209.82

44

SCREW, TRUSS TAP.

97707-40016-00

$6.18

45

SWITCH

8DM-82917-01-00

$118.26

46

RESISTOR ASSY

8DM-85370-00-00

$38.49

47

SCREW, BINDING

98907-06012-00

$7.14
