- VX500XTW (VMAX 500 XT PROACTION PLUS) 1996
TRACK SUSPENSION 2

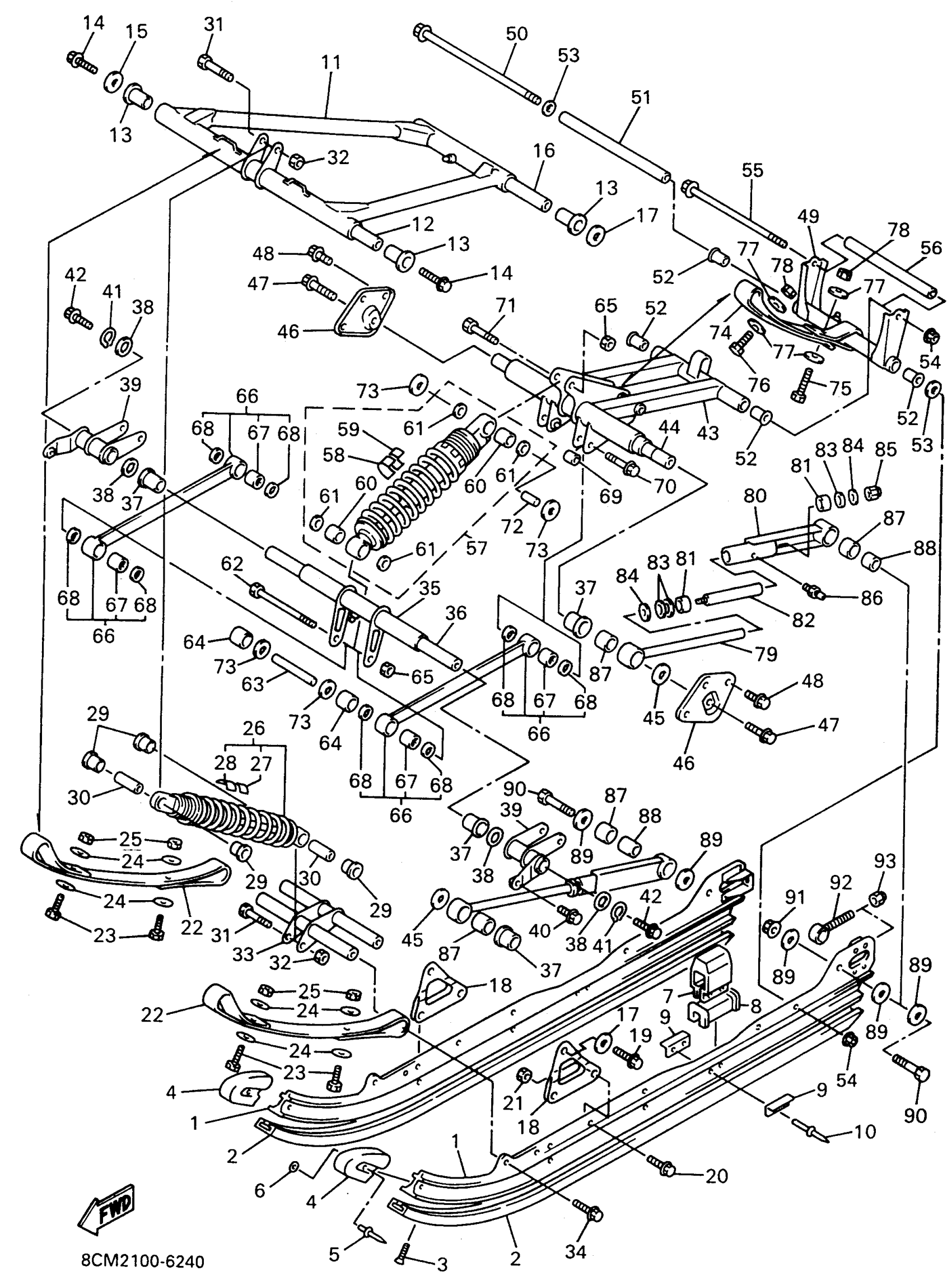

Yamaha VX500XTW (VMAX 500 XT PROACTION PLUS) 1996 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING
8CM-W4741-10-00
Unavailable
2
136 (DZ) RED HYFAX
SMA-8CW92-70-DZ
Unavailable
2
136 (DZ) RED HYFAX
SMA-8CW92-70-DZ
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
5
RIVET, BLIND (8K4)
90267-48062-00
$3.66
6
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
7
DAMPER 2
8CM-47457-00-00
$16.49
8
SPACER
8CM-47341-00-00
$16.49
9
PLATE, DAMPER
8AX-47458-00-00
$10.99
10
RIVET, BLIND (8K4)
90267-48062-00
$3.66
11
ARM, PIVOT 1
8CM-47331-10-00
Unavailable
12
SHAFT 1
8CM-47465-10-00
Unavailable
13
BUSH, SOLID(8CM)
90381-19098-00
$4.77
14
BOLT (8V0)
90109-10771-00
$5.60
15
WASHER, PLATE (856)
90201-10321-00
Unavailable
16
SHAFT 3
82M-47485-02-00
Unavailable
17
WASHER, PLATE(8BV)
90201-100S7-00
Unavailable
18
BRACKET 1
8CM-47415-10-00
Unavailable
19
BOLT, FLANGE
95817-10030-00
Unavailable
20
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
21
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
22
STOPPER 1
8CM-47495-10-00
Unavailable
23
BOLT, HEXAGON
97017-06025-00
Unavailable
24
WASHER, PLATE
90201-06747-00
Unavailable
25
NUT, NYLON
95707-06300-00
Unavailable
26
SHOCK ABSORBER 2
8CM-47481-10-00
Unavailable
26
SHOCK ABSORBER 2
8CM-47481-B0-00
Unavailable
27
. LABEL, WARNING
4AA-22259-00-00
Unavailable
28
. LABEL, WARNING
4AA-22259-10-00
Unavailable
29
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
30
COLLAR (8U7)
90387-105G5-00
Unavailable
31
BOLT(88R)
90101-10738-00
Unavailable
32
NUT, U
95617-10100-00
Unavailable
33
BRACKET 4
8CM-47418-10-00
Unavailable
34
BOLT, FLANGE
95817-10030-00
Unavailable
35
BRACKET 2
8CM-47416-10-00
Unavailable
36
SHAFT 6
8CM-47488-10-00
Unavailable
37
BUSH, SOLID(8CM)
90381-22099-00
Unavailable
38
WASHER, PLATE (8L8)
90201-225A4-00
Unavailable
39
BRACKET 5
8CM-47463-10-00
Unavailable
40
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
41
CIRCLIP(1EY)
99009-22400-00
Unavailable
42
BOLT (8V0)
90109-10771-00
$5.60
43
ARM, PIVOT 2
8CM-47332-10-00
Unavailable
44
SHAFT 2
8CM-47475-10-00
Unavailable
45
WASHER, PLATE (856)
90201-10321-00
Unavailable
46
BRACKET,REAR 2
8AB-47425-00-00
Unavailable
47
BOLT, FLANGE
95817-10030-00
Unavailable
48
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
49
BRACKET 3
8CM-47417-10-00
Unavailable
50
BOLT, WASHER BASED(51X)
90105-08346-00
Unavailable
51
COLLAR
90387-08632-00
Unavailable
52
BUSH, SOLID
90381-12100-00
Unavailable
53
WASHER (1T1)
90201-08649-00
Unavailable
54
NUT, SELF-LOCKING
90185-08169-00
Unavailable
55
BOLT, FLANGE
95827-08220-00
Unavailable
56
COLLAR (8U7)
90387-083G6-00
Unavailable
57
SHOCK ABSORBER
8CM-47480-10-00
Unavailable
57
SHOCK ABSORBER
8CM-47480-20-00
Unavailable
57
SHOCK ABSORBER
8CM-47480-30-00
Unavailable
57
SHOCK ABSORBER
8CM-47480-A0-00
Unavailable
57
SHOCK ABSORBER
8CM-47480-B0-00
Unavailable
58
. LABEL, WARNING
4AA-22259-00-00
Unavailable
59
. LABEL, WARNING
4AA-22259-10-00
Unavailable
60
BEARING, CYLINDRICAL(8CM)
93315-21454-00
Unavailable
61
OIL SEAL (2K8)
93109-14021-00
Unavailable
62
BOLT
90101-10747-00
Unavailable
63
COLLAR
90387-1007P-00
Unavailable
64
COLLAR(8CM)
90387-1404R-00
Unavailable
65
NUT, U
95617-10100-00
Unavailable
66
RELAY ROD ASSEMBLY
8CM-47490-10-00
Unavailable
67
BEARING, CYLINDRICAL(8CM)
93315-21455-00
Unavailable
68
OIL SEAL (2K8)
93109-14021-00
Unavailable
69
COLLAR
90387-1007M-00
Unavailable
70
BOLT, FLANGE
95817-10035-00
Unavailable
71
BOLT(88R)
90101-10738-00
Unavailable
72
COLLAR(8CM)
90387-1007N-00
Unavailable
73
WASHER, PLATE(8CM)
90202-14226-00
Unavailable
74
STOPPER 2
8CM-47496-10-00
Unavailable
75
BOLT(21W)
97017-06035-00
Unavailable
76
BOLT, HEXAGON
97017-06025-00
Unavailable
77
WASHER, PLATE
90201-06747-00
Unavailable
78
NUT, NYLON
95707-06300-00
Unavailable
79
VX-XT SUSP-PERF KT
90891-50132-00
Unavailable
80
ROD,CONTROL 2
8CM-4745B-19-00
Unavailable
81
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
82
VX-XT SUSP-PERF KT
90891-50132-00
Unavailable
83
WASHER, PLATE(8CM)
90202-14226-00
Unavailable
84
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
85
NUT, U
95617-10100-00
Unavailable
86
NIPPLE, GREASE
93700-06M03-00
Unavailable
87
BUSH, SOLID(8CM)
90380-22232-00
Unavailable
88
COLLAR
90387-1006U-00
Unavailable
89
WASHER, PLATE(8CM)
90201-100S0-00
Unavailable
90
BOLT
90101-10773-00
Unavailable
91
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
92
COLLAR 3
8K2-47479-01-00
Unavailable
93
NUT, NYLON
95707-10300-00
Unavailable
