TRACK SUSPENSION 1

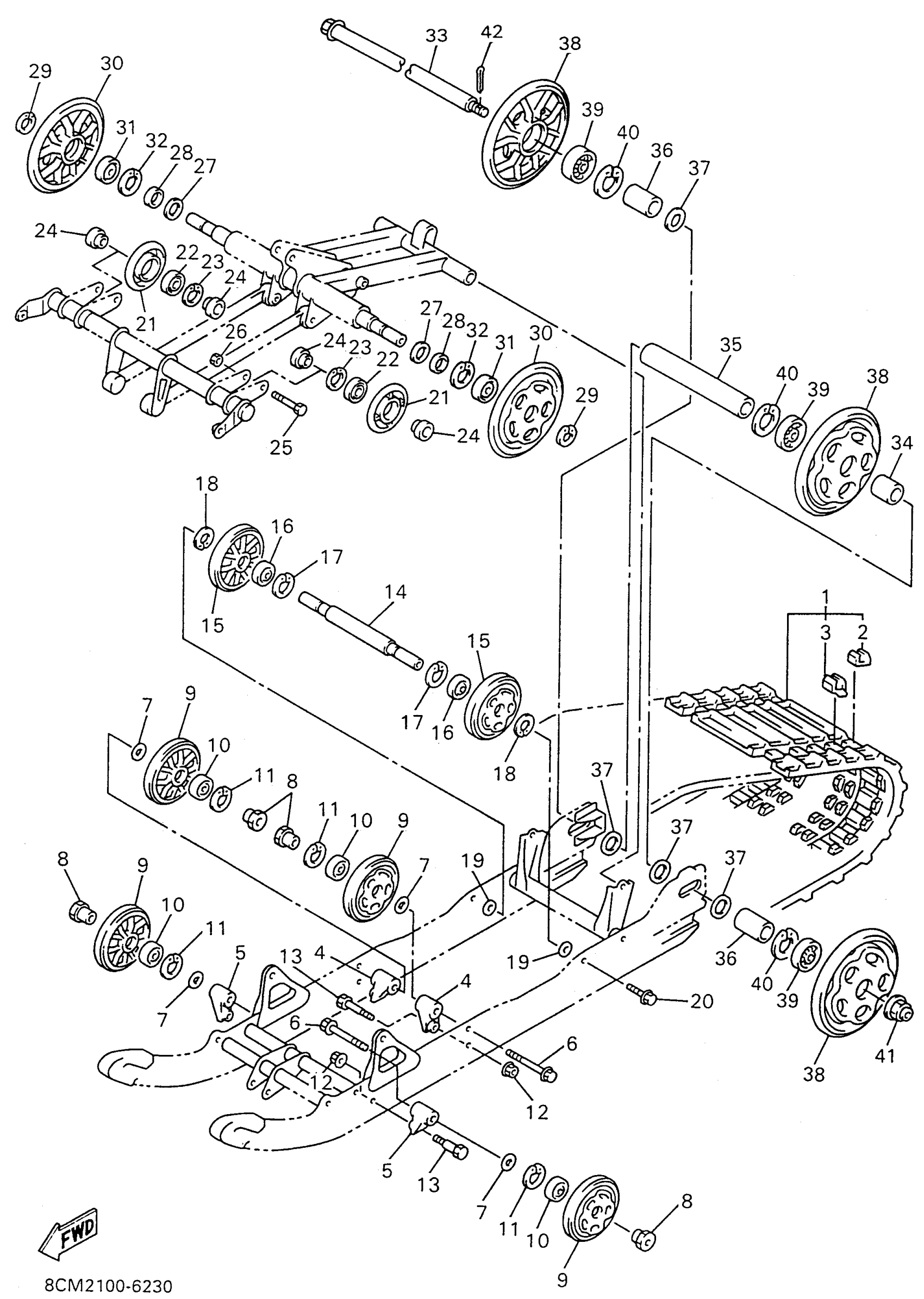

Yamaha VX500XTW (VMAX 500 XT PROACTION PLUS) 1996 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASY
8CA-47110-10-00
Unavailable
2
PLATE, REINFORCEMENT
89A-47113-00-00
$5.49
3
METAL, SLIDE
89A-47115-01-00
Unavailable
4
BRACKET 7
8CM-47419-10-00
$39.99
5
BRACKET 7
8CM-47419-20-00
Unavailable
6
BOLT, FLANGE
90105-10029-00
$5.60
7
WASHER, PLATE (17K)
90201-106F2-00
$10.49
8
NUT(8CM)
90179-10670-00
$12.49
9
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
10
BEARING(8AB)
93306-00444-00
$41.99
11
CIRCLIP(5U8)
99009-42500-00
$8.49
12
NUT, SELF-LOCKING
90185-08169-00
$8.49
13
BOLT(8CM)
90101-08774-00
$7.49
14
SHAFT 4
84J-47486-00-00
Unavailable
15
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
16
BEARING(8AB)
93306-00444-00
$41.99
17
CIRCLIP(5U8)
99009-42500-00
$8.49
18
CIRCLIP(1AR)
99009-20400-00
Unavailable
19
WASHER, PLATE (17K)
90201-106F2-00
$10.49
20
BOLT, FLANGE
95817-10030-00
Unavailable
21
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
22
BEARING(8AB)
93306-00444-00
$41.99
23
CIRCLIP(5U8)
99009-42500-00
$8.49
24
COLLAR
90387-1007W-00
Unavailable
25
BOLT(88R)
90101-10738-00
Unavailable
26
NUT, U
95617-10100-00
Unavailable
27
WASHER, PLATE(1KE)
90201-207J5-00
Unavailable
28
COLLAR(8AB)
90387-2004V-00
Unavailable
29
CIRCLIP(1AR)
99009-20400-00
Unavailable
30
SUSPENSION WHEEL COMP.
88R-47320-00-00
Unavailable
31
BEARING(8AB)
93306-00444-00
$41.99
32
CIRCLIP(5U8)
99009-42500-00
$8.49
33
REAR AXLE COMP.
8L8-47520-02-00
Unavailable
34
COLLAR
90387-204R3-00
Unavailable
35
COLLAR
90387-20023-00
Unavailable
36
COLLAR
90387-20022-00
Unavailable
37
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
38
GUIDE WHEEL COMP.
8K2-47530-00-00
Unavailable
39
BEARING(8AE)
93306-20469-00
Unavailable
40
CIRCLIP(48Y)
99009-47500-00
Unavailable
41
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
42
PIN, COTTER
91490-30030-00
Unavailable
