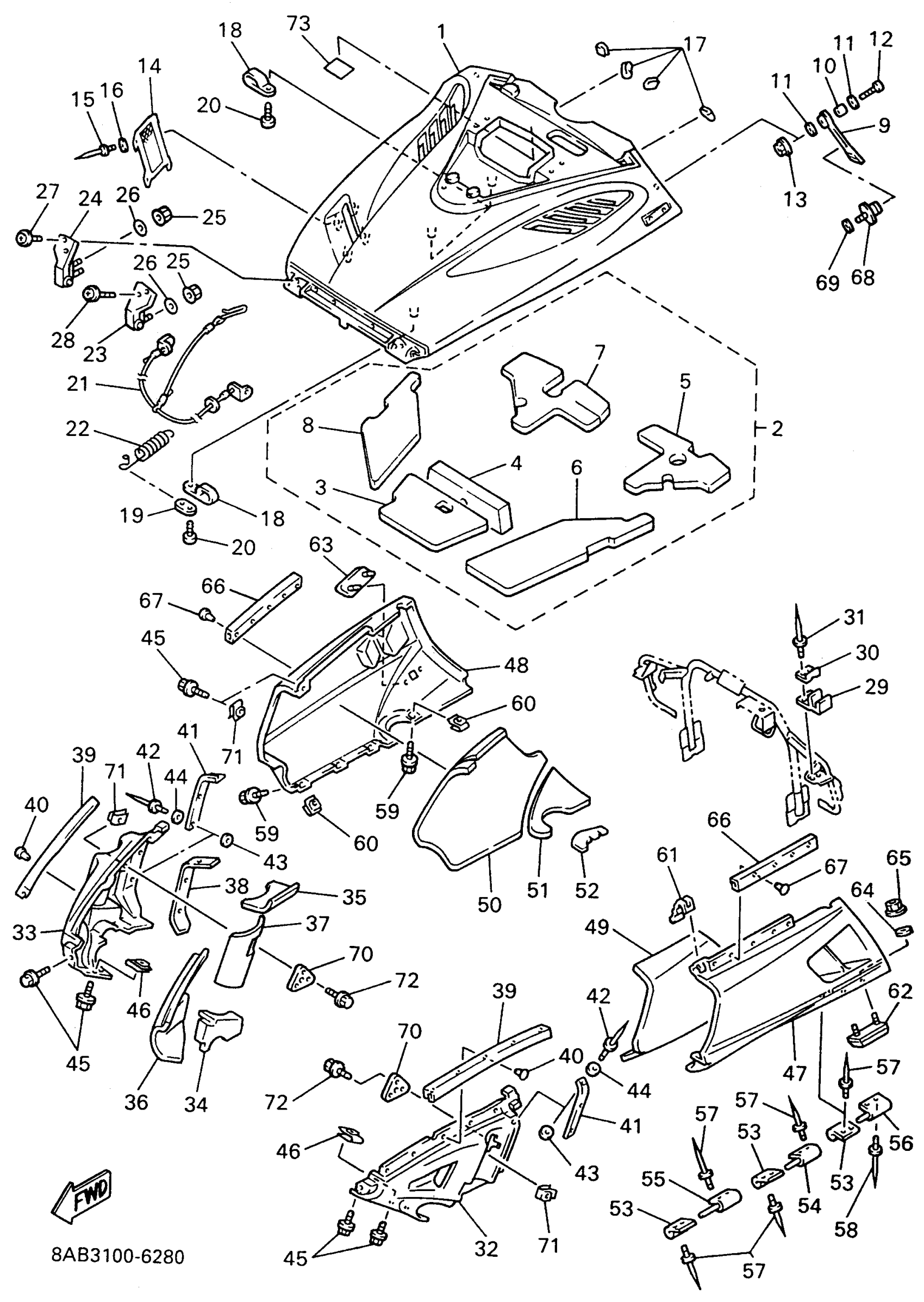

Yamaha VX500XTW (VMAX 500 XT PROACTION PLUS) 1996 SHROUD Diagram
#
1
SHROUD
8CM-77111-10-00
Unavailable
2
LINING SET
8AB-W7726-00-00
Unavailable
3
. LINING, SHROUD 1
8AB-77261-00-00
Unavailable
4
. LINING, SHROUD 3
8AB-77263-00-00
Unavailable
5
. LINING, SHROUD 4
8AB-77264-00-00
Unavailable
6
. LINING, SHROUD 5
8AB-77265-00-00
Unavailable
7
. LINING, SHROUD 6
8AB-77266-00-00
Unavailable
8
. LINING, SHROUD 7
8AB-77267-00-00
Unavailable
9
BODY, LATCH 1
8V0-77171-00-00
$21.99
10
COLLAR (420)
90387-06241-00
$8.49
11
WASHER, PLATE
90201-06020-00
$9.49
12
SCREW, BINDING
98907-06030-00
$8.49
13
NUT, FLANGE(4MV)
95707-06500-00
$1.23
14
PROTECTOR 7
8AB-77557-00-00
Unavailable
15
RIVET, BLIND (8M6)
90267-48051-00
$1.49
16
WASHER, PLAIN (3GDF)
90201-051K1-00
Unavailable
17
TRIM 6
89A-77226-00-00
Unavailable
18
CLAMP(8BN)
90461-08134-00
Unavailable
19
WASHER, SPECIAL
8AB-77116-00-00
Unavailable
20
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
21
STOPPER, SHROUD
8AB-77118-00-00
Unavailable
22
CLAMP, ROD
89A-77159-00-00
Unavailable
23
HINGE ASSY
89A-77140-00-00
Unavailable
24
HINGE ASSY 2
89A-7714A-00-00
Unavailable
25
NUT, NYLON
95707-06300-00
Unavailable
26
WASHER(6TA)
92907-06200-00
Unavailable
27
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
28
SCREW, WITH WASHER
90159-06108-00
Unavailable
29
STOPPER
8V0-77188-00-00
Unavailable
30
WASHER, SPECIAL
8V0-77116-01-00
Unavailable
31
RIVET, BLIND (J10)
90267-40077-00
Unavailable
32
HOOD 1
8CM-21982-10-00
Unavailable
33
HOOD 2
8CM-21983-10-00
Unavailable
34
DAMPER, NOISE 12
8AB-77272-00-00
Unavailable
35
DAMPER, NOISE 13
8AB-77273-00-00
Unavailable
36
DAMPER, NOISE 11
8AB-77271-00-00
Unavailable
37
DAMPER, NOISE 14
8AB-77274-00-00
Unavailable
38
DAMPER, NOISE 18
8AB-77278-00-00
Unavailable
39
BUSH, RUBBER 1
8AB-77515-00-00
Unavailable
40
RIVET(81E)
90269-05055-00
Unavailable
41
TRIM 1
82M-2196T-00-00
Unavailable
42
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
43
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
44
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
45
BOLT, WITH WASHER
90119-06226-00
Unavailable
46
NUT, SPRING (26H)
90183-06023-00
Unavailable
47
HOOD 3
8CM-2197H-10-00
Unavailable
48
HOOD 4
8CM-2198H-10-00
Unavailable
49
LINING, SHROUD 2
8AB-77262-00-00
Unavailable
50
DAMPER, NOISE 15
8AB-77275-00-00
Unavailable
51
DAMPER, NOISE 16
8AB-77276-00-00
Unavailable
52
DAMPER, NOISE 17
8AB-77277-00-00
Unavailable
53
BRACKET, 1
88F-2194X-00-00
Unavailable
54
BRACKET 2
88R-2195X-00-00
Unavailable
55
BRACKET 2
88R-2195X-00-00
Unavailable
56
BRACKET 3
88F-2196F-00-00
Unavailable
57
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
58
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
59
BOLT, WITH WASHER
90119-06226-00
Unavailable
60
NUT, SPRING (26H)
90183-06023-00
Unavailable
61
STOPPER
8AB-77188-00-00
Unavailable
62
PROTECTOR 1
85L-77551-00-00
Unavailable
63
PROTECTOR 2
85L-77552-00-00
Unavailable
64
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
65
NUT, NYLON
95707-05300-00
Unavailable
66
BUSH, RUBBER 2
8AB-77516-01-00
Unavailable
67
RIVET(81E)
90269-05055-00
Unavailable
68
HOLDER, LATCH
8V0-77175-00-00
Unavailable
69
PLATE
4U5-2176E-00-00
Unavailable
70
BRACKET 3
8AB-2196F-00-00
Unavailable
71
NUT
83R-77144-00-00
Unavailable
72
BOLT, FLANGE
95817-06010-00
Unavailable
73
LABEL, WARNING
8AB-77768-11-00
Unavailable
