Description

Price

1

SPEEDOMETER ASY

89A-83500-42-00

Unavailable

2

SPEEDOMETER ASSY

8CR-83580-40-00

Unavailable

3

TACHOMETER ASSY

89A-83540-42-00

Unavailable

4

COVER,METER

88R-83559-20-00

Unavailable

5

. CASE, UNDER (8AS-8353H-20-00)

89A-8353H-40-00

Unavailable

6

KNOB, TRIP METER

29L-83578-00-00

Unavailable

7

. SOCKET CORD ASSEMBLY

89A-83509-40-00

Unavailable

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

9

SCREW, PAN HEAD

98517-04012-00

$3.88

10

WASHER(6TA)

92907-04100-00

$8.49

11

WASHER(JF2)

92907-04600-00

$1.71

12

SCREW, TRUSS TAP.

97707-40014-00

Unavailable

13

NUT(6TA)

95307-04600-00

$8.49

14

WASHER(6TA)

92907-04100-00

$8.49

15

WASHER(JF2)

92907-04600-00

$1.71

16

BULB (6V 3W)

4N0-83516-00-00

Unavailable

17

BULB (12V-1.7W)

3GM-83517-00-00

Unavailable

18

SCREW, WITH WASHER(36Y)

90159-03102-00

Unavailable

19

TRIM 5

89A-77225-00-00

Unavailable

20

DAMPER 1

89A-77198-00-00

Unavailable

21

WASHER, PLATE

90201-06020-00

Unavailable

22

NUT(6TA)

95317-06600-00

Unavailable

23

DAMPER

5J0-83513-00-00

Unavailable

24

SPEEDOMETER CABLE ASSEMBLY

8AB-83550-00-00

Unavailable

25

METER GEAR HOUSING COMP

83R-47700-00-00

Unavailable

26

JOINT

8K4-47715-00-00

Unavailable

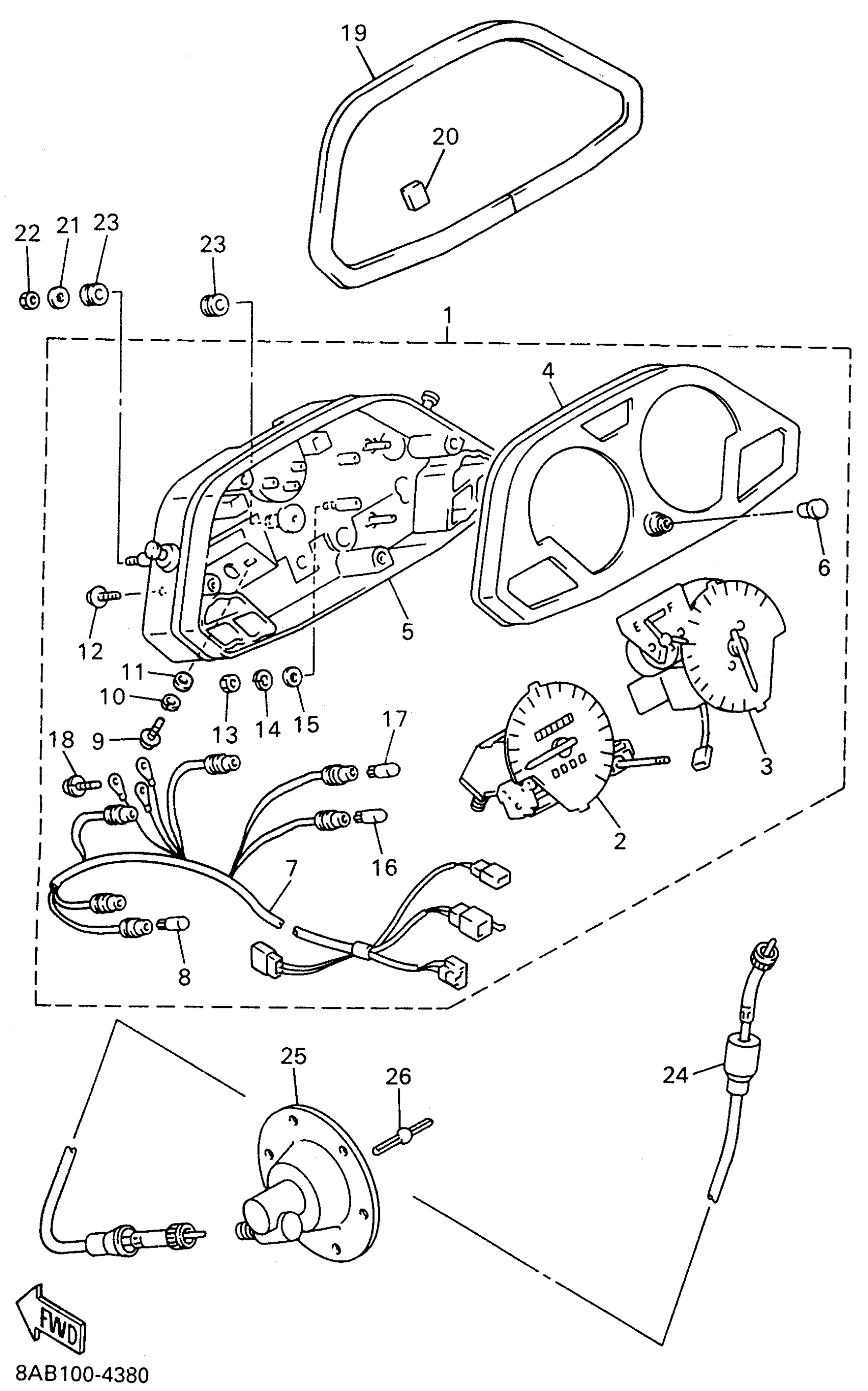

Yamaha VX500XTW (VMAX 500 XT PROACTION PLUS) 1996 METER Diagram

SPEEDOMETER ASY

SPEEDOMETER ASSY

TACHOMETER ASSY

COVER,METER

. CASE, UNDER (8AS-8353H-20-00)

KNOB, TRIP METER

. SOCKET CORD ASSEMBLY

BULB, MTR.12V3.4W

SCREW, PAN HEAD

WASHER(6TA)

WASHER(JF2)

SCREW, TRUSS TAP.

NUT(6TA)

WASHER(6TA)

WASHER(JF2)

BULB (6V 3W)

BULB (12V-1.7W)

SCREW, WITH WASHER(36Y)

TRIM 5

DAMPER 1

WASHER, PLATE

NUT(6TA)

DAMPER

SPEEDOMETER CABLE ASSEMBLY

METER GEAR HOUSING COMP

JOINT
