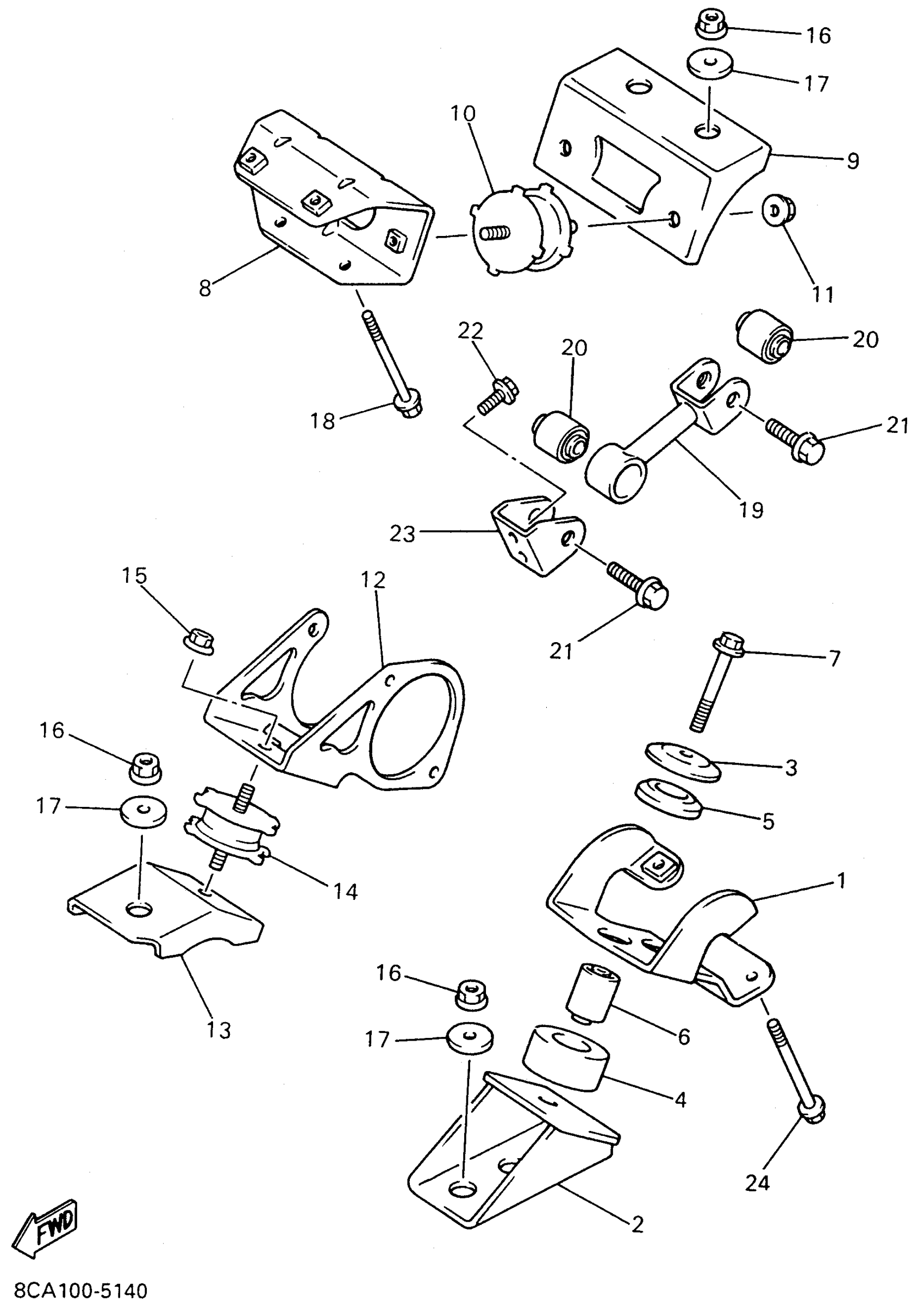

Yamaha VX500XTW (VMAX 500 XT PROACTION PLUS) 1996 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, FRONT UPPER 1

82M-21415-00-00

Unavailable

2

BRACKET, FRONT LOWER 1

8AB-21417-00-00

Unavailable

3

WASHER, CONICAL SPRING

90208-10034-00

Unavailable

4

DAMPER, RUBBER 1

8U9-21485-00-00

Unavailable

5

DAMPER 2

8U9-21486-00-00

Unavailable

6

BUSH, SOLID

90380-10113-00

Unavailable

7

BOLT, FLANGE(8AB)

95817-10050-00

$7.49

8

BRACKET, REAR UPPER 1

82M-21425-00-00

Unavailable

9

BRACKET, REAR LOWER 1

8AB-21427-00-00

Unavailable

10

DAMPER 2

8M6-21486-02-00

Unavailable

11

NUT, FLANGE(8AB)

95707-10500-00

$3.18

12

BRACKET,FRT UPR 2

8AB-21416-01-00

Unavailable

13

BRACKET, FRONT LOWER 1

85L-21417-00-00

Unavailable

14

DAMPER 2

8M6-21486-02-00

Unavailable

15

NUT, FLANGE(8AB)

95707-10500-00

$3.18

16

NUT, FLANGE(8AB)

95707-10500-00

$3.18

17

WASHER, PLATE (856)

90201-10321-00

Unavailable

18

BOLT, WASHER BASED

90105-084A1-00

Unavailable

19

STAY, ENGINE 2

8AB-21315-00-00

Unavailable

20

DAMPER, RUBBER 1

89A-21485-00-00

Unavailable

21

BOLT, SMALL FLANGE

95027-10035-00

Unavailable

22

BOLT, SMALL FLANGE

95027-08020-00

Unavailable

23

BRACKET 1

8AB-2148U-00-00

Unavailable

24

BOLT, FLANGE(JF2)

95817-08080-00

Unavailable
