- VX500W (VMAX 500) 1996
TRACK SUSPENSION 2

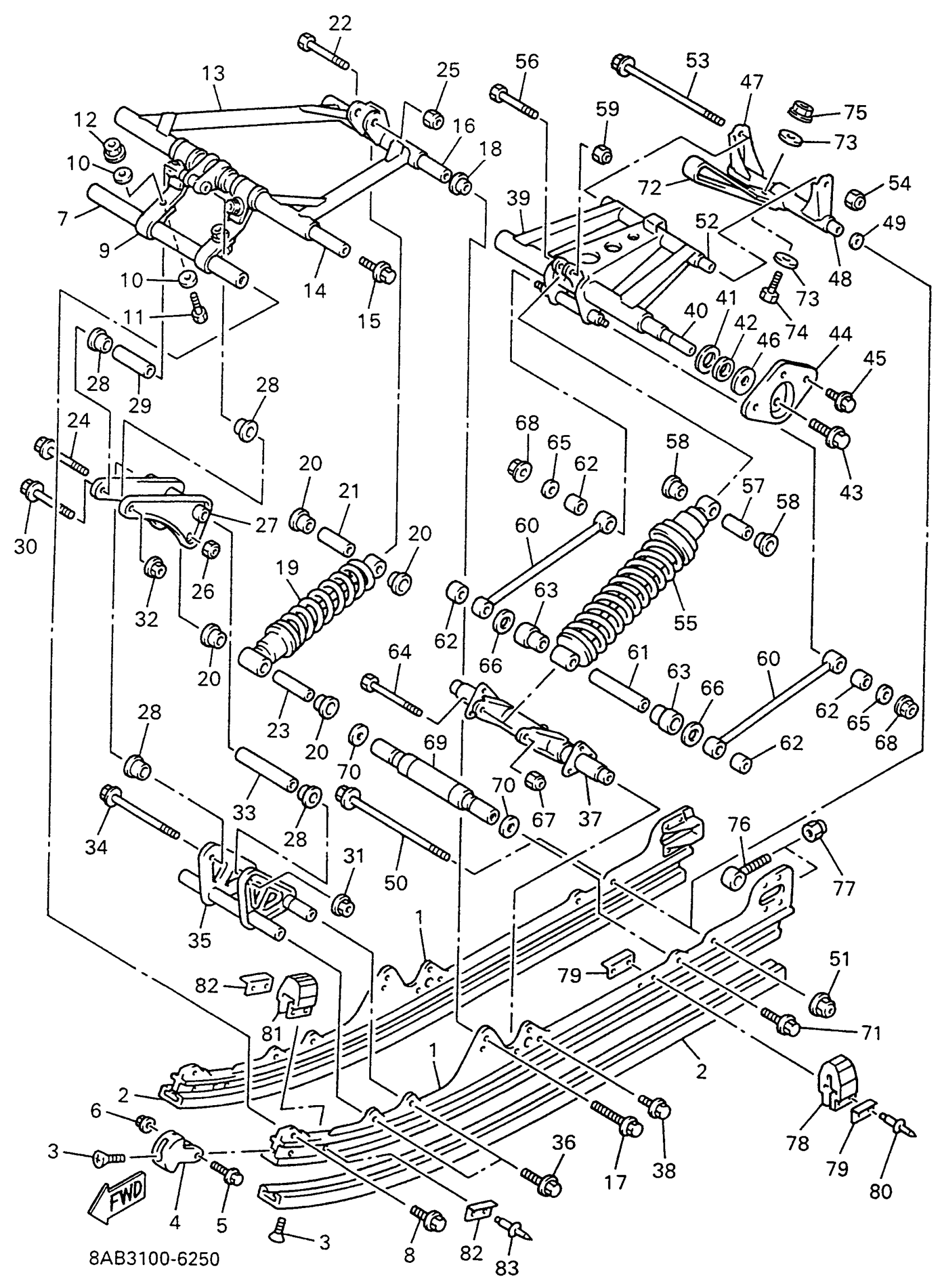

Yamaha VX500W (VMAX 500) 1996 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING
8AX-W4741-00-00
Unavailable
2
RUNNER, SLIDING 1 (8AB-47421-00-00)
8AB-47421-10-XX
Unavailable
3
SCREW, COUNTERSUNK
90151-06057-00
Unavailable
4
RUNNER,SLIDING 2
8AX-47422-01-00
Unavailable
5
BOLT, FLANGE
95817-06040-00
$5.60
6
NUT,SELF-LOCKING
95607-06200-00
$12.49
7
SHAFT 3
82M-47485-02-00
Unavailable
8
BOLT, FLANGE
95817-10030-00
$8.49
9
STOPPER 1
8AB-47495-00-00
Unavailable
10
WASHER, PLATE
90201-06747-00
$8.49
11
BOLT, HEXAGON
97017-06025-00
$4.24
12
NUT, NYLON
95707-06300-00
$3.50
13
ARM,PIVOT 1
89A-47331-03-00
Unavailable
14
SHAFT 6
8CM-47488-10-00
Unavailable
15
BOLT (8V0)
90109-10771-00
$5.60
16
SHAFT 3
82M-47485-02-00
Unavailable
17
BOLT, FLANGE
95817-10030-00
$8.49
18
COLLAR (8U7)
90387-105G6-00
Unavailable
19
SHOCK ABSORBER 2
8AB-47481-00-00
Unavailable
20
COLLAR (8U7)
90387-123G4-00
Unavailable
21
COLLAR
90387-08775-00
Unavailable
22
. BOLT
90101-08557-00
Unavailable
23
COLLAR
90387-08478-00
Unavailable
24
BOLT, WASHER BASED
90105-084A1-00
Unavailable
25
NUT, SELF-LOCKING
90185-08169-00
Unavailable
26
NUT, U
95617-08100-00
Unavailable
27
BRACKET 6
8U7-47464-00-00
Unavailable
28
COLLAR
90387-123G5-00
Unavailable
29
COLLAR
90387-08478-00
Unavailable
30
BOLT, FLANGE(JN5)
95817-08070-00
Unavailable
31
NUT, SELF-LOCKING
90185-08169-00
Unavailable
32
NUT, SELF-LOCKING
90185-08169-00
Unavailable
33
COLLAR
90387-084G0-00
Unavailable
34
BOLT, FLANGE
95817-08100-00
Unavailable
35
BRACKET 4
8AX-47418-00-00
Unavailable
36
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
37
BRACKET 2
8AX-47416-01-00
Unavailable
38
BOLT, FLANGE
95817-06020-00
Unavailable
39
ARM, PIVOT 2
8AV-47332-01-00
Unavailable
40
SHAFT 2
8AB-47475-00-00
Unavailable
41
WASHER, PLATE(1KE)
90201-207J5-00
Unavailable
42
COLLAR(8AB)
90387-2004V-00
Unavailable
43
BOLT (8V0)
90109-10771-00
$5.60
44
BRACKET,REAR 2
8AB-47425-00-00
Unavailable
45
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
46
WASHER, PLATE (856)
90201-10321-00
Unavailable
47
BRACKET 3
8U7-47417-00-00
Unavailable
48
COLLAR
90387-08632-00
Unavailable
49
WASHER (1T1)
90201-08649-00
Unavailable
50
BOLT, WASHER BASED(51X)
90105-08346-00
Unavailable
51
NUT, SELF-LOCKING
90185-08169-00
Unavailable
52
COLLAR (8U7)
90387-083G6-00
Unavailable
53
BOLT, FLANGE
95827-08220-00
Unavailable
54
NUT, SELF-LOCKING
90185-08169-00
Unavailable
55
SHOCK ABSORBER
8AB-47480-00-00
Unavailable
55
SHOCK ABSORBER
8BA-47480-00-00
Unavailable
55
SHOCK ABSORBER
8BA-47480-00-00
Unavailable
56
BOLT(88R)
90101-10738-00
Unavailable
57
COLLAR (8U7)
90387-105G5-00
Unavailable
58
COLLAR (8U7)
90387-145G7-00
Unavailable
59
NUT, U
95617-10100-00
Unavailable
60
ROD, RELAY
8AB-47494-00-00
Unavailable
61
COLLAR
90387-1007P-00
Unavailable
62
COLLAR (8U7)
90387-143G7-00
Unavailable
63
COLLAR (8U7)
90387-144G2-00
Unavailable
64
BOLT
90101-10747-00
Unavailable
65
WASHER (853)
90201-08326-00
Unavailable
66
WASHER PLATE 148272190000
90201-14215-00
Unavailable
67
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
68
NUT, NYLON
95717-08300-00
Unavailable
69
SHAFT 4
84J-47486-00-00
Unavailable
70
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
71
BOLT, FLANGE
95817-10030-00
$8.49
72
STOPPER 2
8AB-47496-00-00
Unavailable
73
WASHER, PLATE
90201-06747-00
$8.49
74
BOLT(21W)
97017-06035-00
Unavailable
75
NUT, NYLON
95707-06300-00
$3.50
76
COLLAR 3
8K2-47479-01-00
Unavailable
77
NUT, NYLON
95707-10300-00
Unavailable
78
DAMPER 1
89A-47456-00-00
Unavailable
79
PLATE, DAMPER
8K2-47458-01-00
Unavailable
80
RIVET, BLIND (8K4)
90267-48062-00
Unavailable
81
DAMPER 1
83R-47456-00-00
Unavailable
82
PLATE, DAMPER
8K2-47458-01-00
Unavailable
83
RIVET, BLIND (8K4)
90267-48062-00
Unavailable
