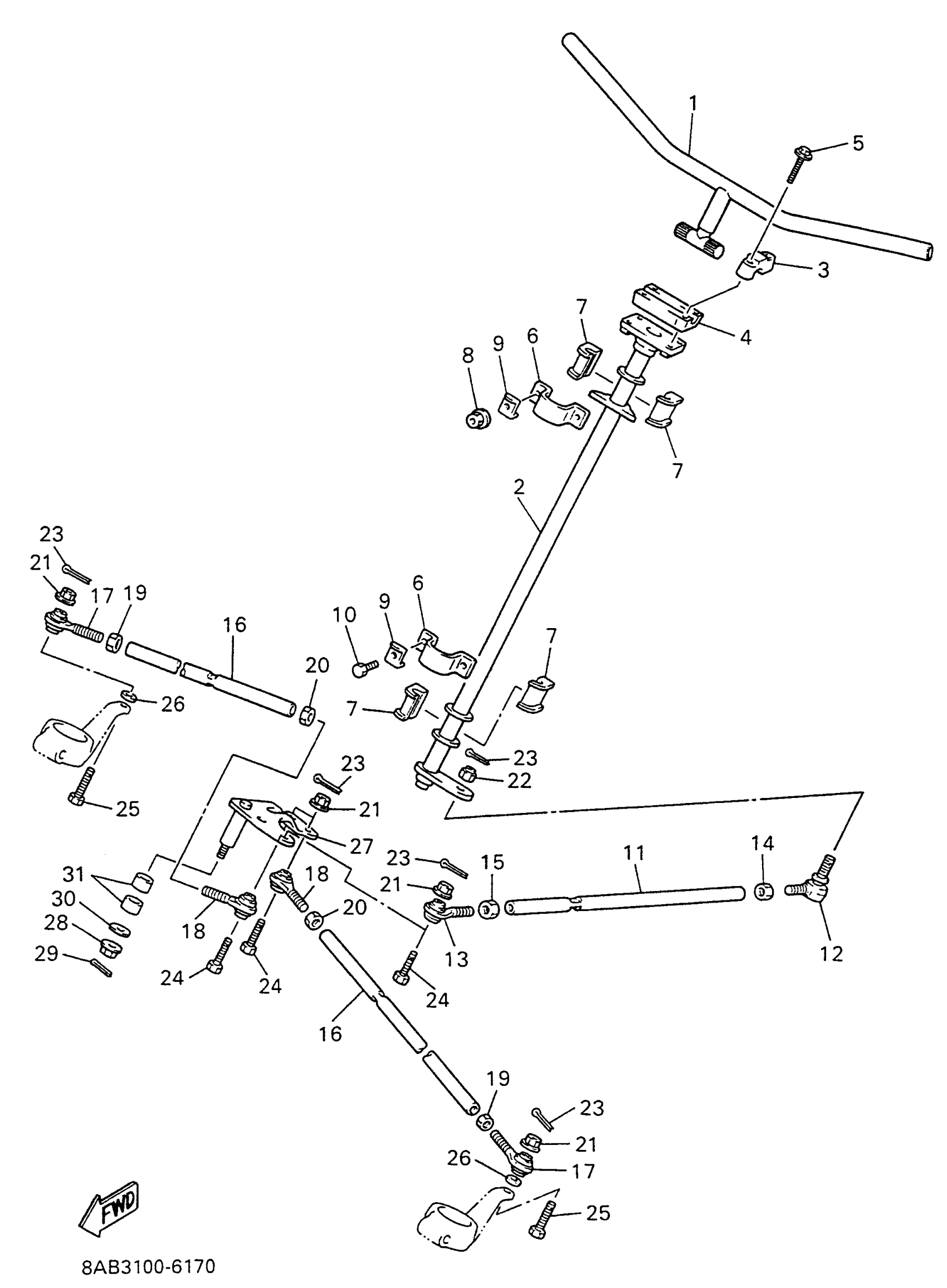

Yamaha VX500W (VMAX 500) 1996 STEERING Diagram
#
1
COLUMN,STEERING
8AB-23811-00-00
Unavailable
2
COLUMN, STEERING 2
8AB-23813-00-00
Unavailable
3
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
4
HANDLE, HOLDER
164-23441-01-98
Unavailable
5
BOLT, FLANGE
95817-08055-00
$4.21
6
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
7
BEARING, STEERING
8F3-23812-00-00
Unavailable
8
NUT, NYLON
95717-08300-00
$2.70
9
WASHER, LOCK 1
8AC-23894-01-00
$4.78
10
BOLT, HEXAGON
97017-08020-00
$9.49
11
ROD, STEERING RELAY
8AB-23821-00-00
Unavailable
12
JOINT, UNIVERSAL 1
86X-23841-00-00
$59.99
13
JOINT, UNIVERSAL 3
87S-23847-01-00
$50.99
14
NUT (3WP1)
95317-10700-00
$8.49
15
NUT, HEXAGON (8A5)
90170-10186-00
$10.49
16
ROD, TIE
8AB-23831-00-00
Unavailable
17
JOINT, UNIVERSAL 2
87S-23845-01-00
Unavailable
18
JOINT, UNIVERSAL 3
87S-23847-01-00
$50.99
19
NUT (3WP1)
95317-10700-00
$8.49
20
NUT, HEXAGON (8A5)
90170-10186-00
$10.49
21
NUT, NYLON
95707-10300-00
Unavailable
22
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
23
PIN, COTTER
91490-25020-00
Unavailable
24
BOLT, WITH HOLE
90102-10031-00
Unavailable
25
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
26
WASHER PLATE (3L6)
90201-08759-00
Unavailable
27
ARM, IDLER
8AB-23826-00-00
Unavailable
28
NUT, NYLON
95717-12300-00
Unavailable
29
PIN, COTTER
91490-30030-00
Unavailable
30
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
31
BUSH, BIMETAL FORMED
90384-20231-00
Unavailable
