1996 Yamaha Vmax 500 (VX500W) SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1996 Yamaha Vmax 500 (VX500W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

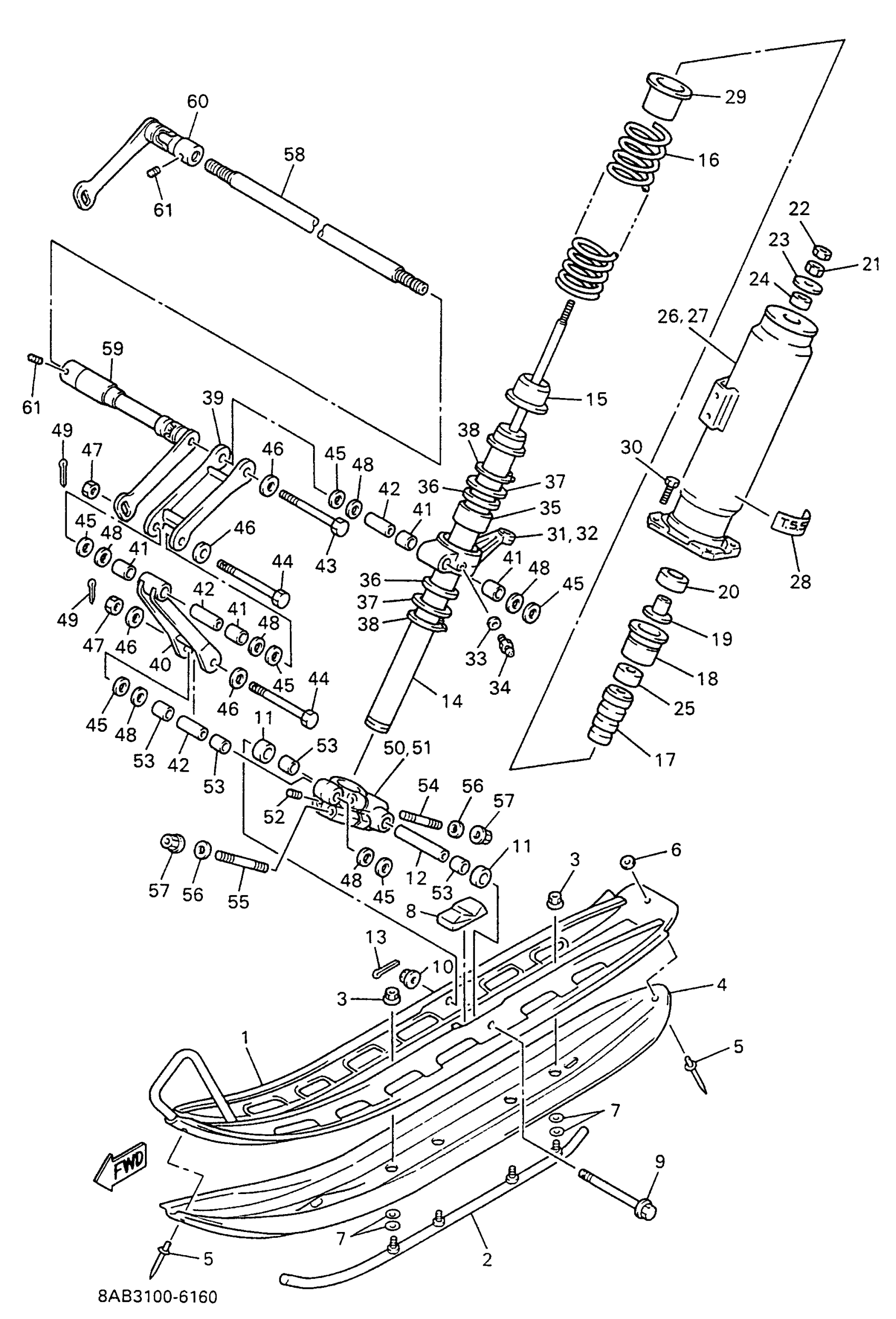

1996 Yamaha Vmax 500 (VX500W) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8AB-23710-01-00

1
Out of stock

2

RUNNER 1 (8CM-23731-00-00)

8CM-23731-00-XX

1
Out of stock

3

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

4

RUNNER 2

8AB-23732-11-RD

1
Out of stock

5

RIVET, BLIND(89A)

90267-48160-00

1

$5.77

In stock

6

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

7

WASHER, PLATE (7R4)

90201-080E2-00

1

$2.89

In stock

8

STOPPER 1

8AB-23743-01-00

1
Out of stock

9

BOLT, WASHER BASED(8AB)

90105-10712-00

1
Out of stock

10

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

11

COLLAR

90387-1402C-00

1
Out of stock

12

COLLAR(8AB)

90387-1002P-00

1

$19.05

In stock

13

PIN, COTTER

91490-20025-00

1

$1.31

In stock

14

DAMPER SUB ASSEMBLY

8BN-22401-00-00

1
Out of stock

15

SEAT, SPRING 2

82M-23777-00-00

—

$16.71

In stock

16

SPRING, COMPRESSION

90501-753J5-00

1
Out of stock

17

BUMP, STOP

89L-22493-00-00

—

$50.17

In stock

18

PLATE, BACK UP

8AB-23788-00-00

1
Out of stock

19

COLLAR(82M)

90387-084R1-00

—

$12.29

In stock

20

WASHER

82M-23779-00-00

—

$12.78

In stock

21

. NUT

90170-08220-00

1
Out of stock

22

NUT(6TA)

95337-08600-00

—

$6.17

In stock

23

WASHER, PLATE(82M)

90201-080L1-00

—

$2.67

In stock

24

COLLAR

90387-1702A-00

1
Out of stock

25

COLLAR

90387-1102B-00

1
Out of stock

26

HOLDER,ABSORBER

8AB-2376J-10-00

1
Out of stock

26

HOLDER,ABSORBER

8AS-2376J-10-00

1
Out of stock

27

HOLDER,ABSORBER 2

8AB-2377J-10-00

1
Out of stock

27

HOLDER,ABSORBER 2

8AS-2377J-10-00

1
Out of stock

28

EMBLEM 15

8BF-77371-00-00

1
Out of stock

29

PROTECTOR

8AB-2376R-01-00

1
Out of stock

29

PROTECTOR

8CA-2376R-00-00

1
Out of stock

30

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

31

ARM, OUTSIDE 1

82M-23851-00-00

—

$108.65

In stock

32

ARM, OUTSIDE 2 (R, H)

82M-23852-00-00

1
Out of stock

33

WASHER, PLATE (8U7)

90201-067F9-00

—

$2.78

In stock

34

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

35

—

$33.18

In stock

36

OIL SEAL (8U7)

93109-53036-00

—

$10.34

In stock

37

WASHER, PLATE(8W1)

90201-535H6-00

—

$3.78

In stock

37

WASHER, PLATE (8L9)

90201-536A1-00

—

$3.66

In stock

38

CIRCLIP (8L9)

93410-52061-00

—

$10.51

In stock

39

ARM, FRONT 1

8AB-2382E-00-00

1
Out of stock

40

ARM, FRONT 2

8AB-2382F-00-00

1
Out of stock

41

—

$9.15

In stock

42

COLLAR(89A)

90387-101Y9-00

—

$20.45

In stock

43

BOLT

90101-10040-00

1
Out of stock

44

BOLT, WITH HOLE

90102-10077-00

1
Out of stock

45

WASHER, PLATE (8M6)

90201-105A8-00

—
Out of stock

46

WASHER, PLATE (8M6)

90201-115A7-00

—

$2.49

In stock

47

NUT, SELF LOCKING (3G1)

90185-10091-00

—

$6.62

In stock

48

WASHER(82M)

90209-14296-00

—

$9.10

In stock

49

PIN, COTTER

91490-20025-00

1

$1.31

In stock

50

BRACKET 1

84M-2376E-00-00

—

$259.32

In stock

51

BRACKET 2

84M-2377E-00-00

—

$339.69

In stock

52

BOLT, SET (8K2)

90113-06039-00

—

$6.97

In stock

53

—

$9.15

In stock

54

BOLT, STUD 3

95617-08655-00

—

$4.34

In stock

55

BOLT, STUD 3

95617-08640-00

—

$3.98

In stock

56

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

57

NUT, NYLON

95717-08300-00

—

$2.57

In stock

58

BAR,STABLZR FRONT

8AB-2386E-01-00

1
Out of stock

59

JOINT, STABILIZER 1

8CL-2385L-00-00

—
Out of stock

60

JOINT, STABILIZER 2

8CL-2385M-00-00

1
Out of stock

61

BOLT, SET (8K2)

90113-06039-00

—

$6.97

In stock
