1996 Yamaha Vmax 500 (VX500W) Control Cable Diagram

← All diagrams

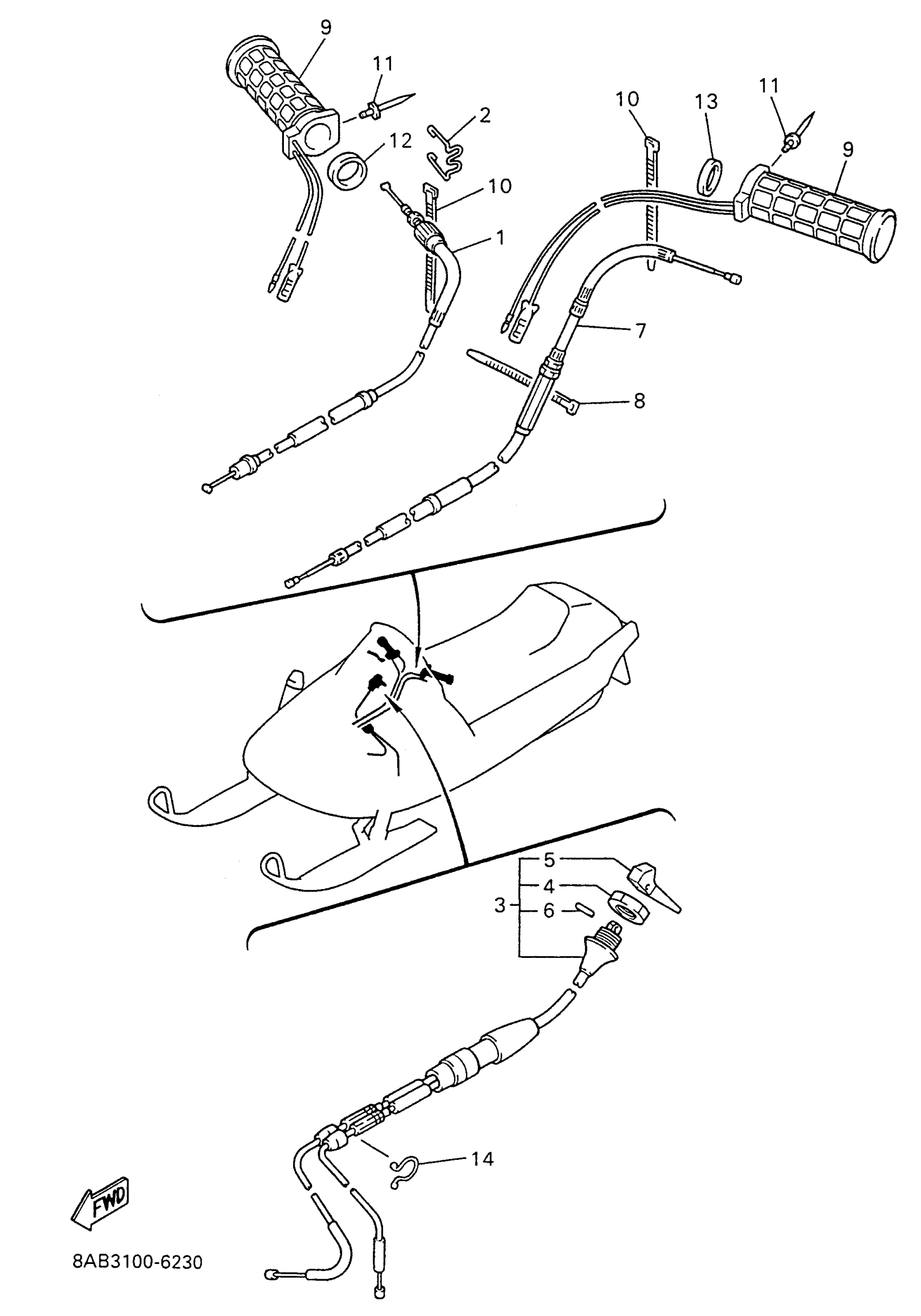

Find the part on the Control Cable diagram for your 1996 Yamaha Vmax 500 (VX500W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Vmax 500 (VX500W) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, THROTTLE 1

8AB-26311-00-00

1
Out of stock

2

CLIP, CABLE

8M6-26391-01-00

1
Out of stock

3

STARTER CABLE ASSEMBLY

8AB-26330-00-00

1
Out of stock

4

Nut

8G8-26333-00-00

—

$7.35

In stock

5

KNOB, STARTER

8U9-26325-00-00

1

$10.03

In stock

6

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

7

CABLE,BRAKE

8AB-26340-01-00

1
Out of stock

8

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

9

88T GRIP BLACK 1 PC

88T-26240-85-BK

1
Out of stock

10

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

11

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

12

COLLAR

90387-224F9-00

1
Out of stock

13

WASHER, PLAIN

80Y-23843-00-00

1
Out of stock

14

CLAMP (3Y2)

90464-16039-00

1
Out of stock
