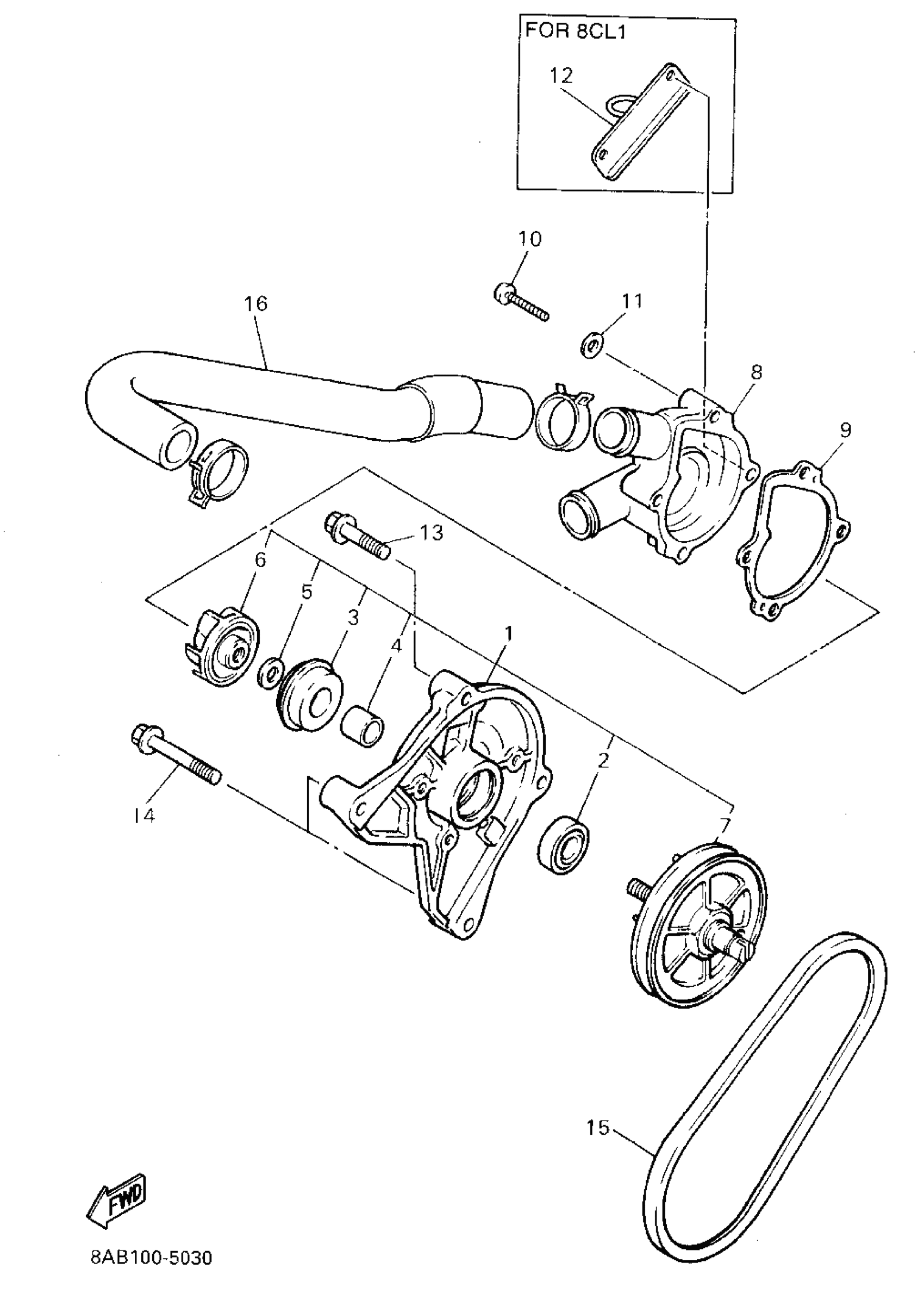

Yamaha VX500V (VMAX 500) 1995 WATER PUMP Diagram

#

Description
Price

1

HOUSING,WATER PUMP

8AB-W1247-02-00

Unavailable

2

BEARING(82M)

93306-20117-00

$34.99

3

SEAL, MECHANICAL

82M-12438-00-00

Unavailable

4

STOPPER

82M-12437-00-00

Unavailable

5

WASHER, PLATE 2562171800

90201-08088-00

Unavailable

6

IMPELLER, WATER PUMP

82M-12451-00-00

Unavailable

7

HOUSING,WATER PUMP

8AB-W1247-02-00

Unavailable

8

COVER,HOUSING

8AB-12422-01-00

Unavailable

9

GASKET,HSNG CVR 1

82M-12427-01-00

Unavailable

10

SCREW, PAN

98507-06035-00

$8.49

11

WASHER(6TA)

92907-06600-00

$2.72

12

COVER

8BB-15779-00-00

Unavailable

13

BOLT, FLANGE

95817-08040-00

$7.49

14

BOLT, FLANGE

95817-08110-00

$5.60

15

BELT 1

82M-12444-00-00

$31.99

16

PIPE 1

82M-12481-00-00

Unavailable
