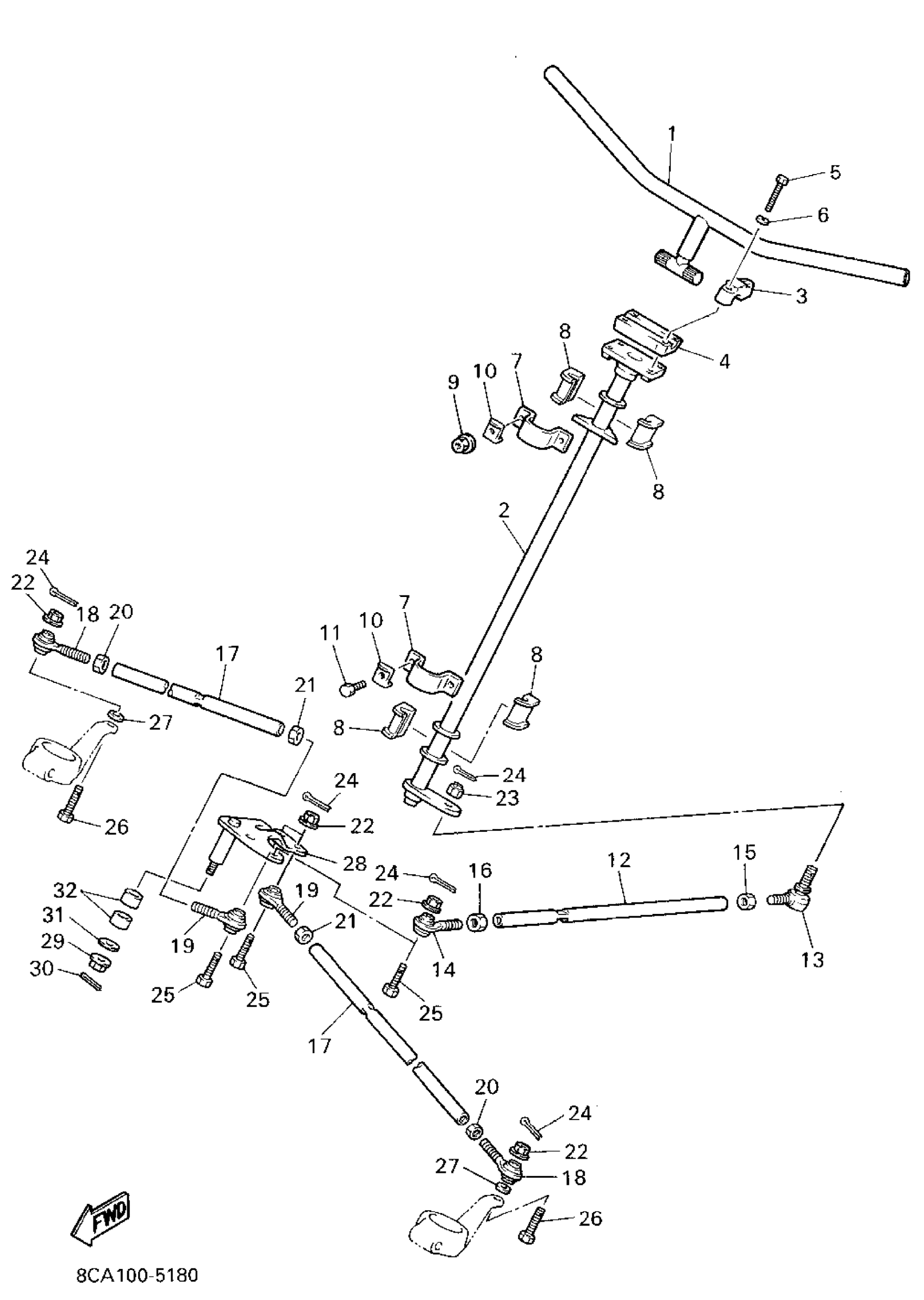

Yamaha VX500V (VMAX 500) 1995 STEERING Diagram
#
1
COLUMN,STEERING
8AB-23811-00-00
Unavailable
2
COLUMN, STEERING 2
8AB-23813-00-00
Unavailable
3
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
4
HANDLE, HOLDER
164-23441-01-98
Unavailable
5
BOLT, HEXAGON
97017-08055-00
$9.49
6
WASHER(JN5)
92907-08100-00
$8.49
7
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
8
BEARING, STEERING
8F3-23812-00-00
Unavailable
9
NUT, NYLON
95717-08300-00
$2.70
10
WASHER, LOCK 1
8AC-23894-01-00
$4.78
11
BOLT, HEXAGON
97017-08020-00
$9.49
12
ROD, STEERING RELAY
8AB-23821-00-00
Unavailable
13
JOINT, UNIVERSAL 1
86X-23841-00-00
$59.99
14
JOINT, UNIVERSAL 3
87S-23847-01-00
$50.99
15
NUT (3WP1)
95317-10700-00
$8.49
16
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
17
ROD, TIE
8AB-23831-00-00
Unavailable
18
JOINT, UNIVERSAL 2
87S-23845-01-00
Unavailable
19
JOINT, UNIVERSAL 3
87S-23847-01-00
$50.99
20
NUT (3WP1)
95317-10700-00
$8.49
21
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
22
NUT, NYLON
95707-10300-00
Unavailable
23
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
24
PIN, COTTER
91490-25020-00
Unavailable
25
BOLT, WITH HOLE
90102-10031-00
Unavailable
26
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
27
WASHER PLATE (3L6)
90201-08759-00
Unavailable
28
ARM, IDLER
8AB-23826-00-00
Unavailable
29
NUT, NYLON
95717-12300-00
Unavailable
30
PIN, COTTER
91490-30030-00
Unavailable
31
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
32
BUSH, BIMETAL FORMED
90384-20231-00
Unavailable
