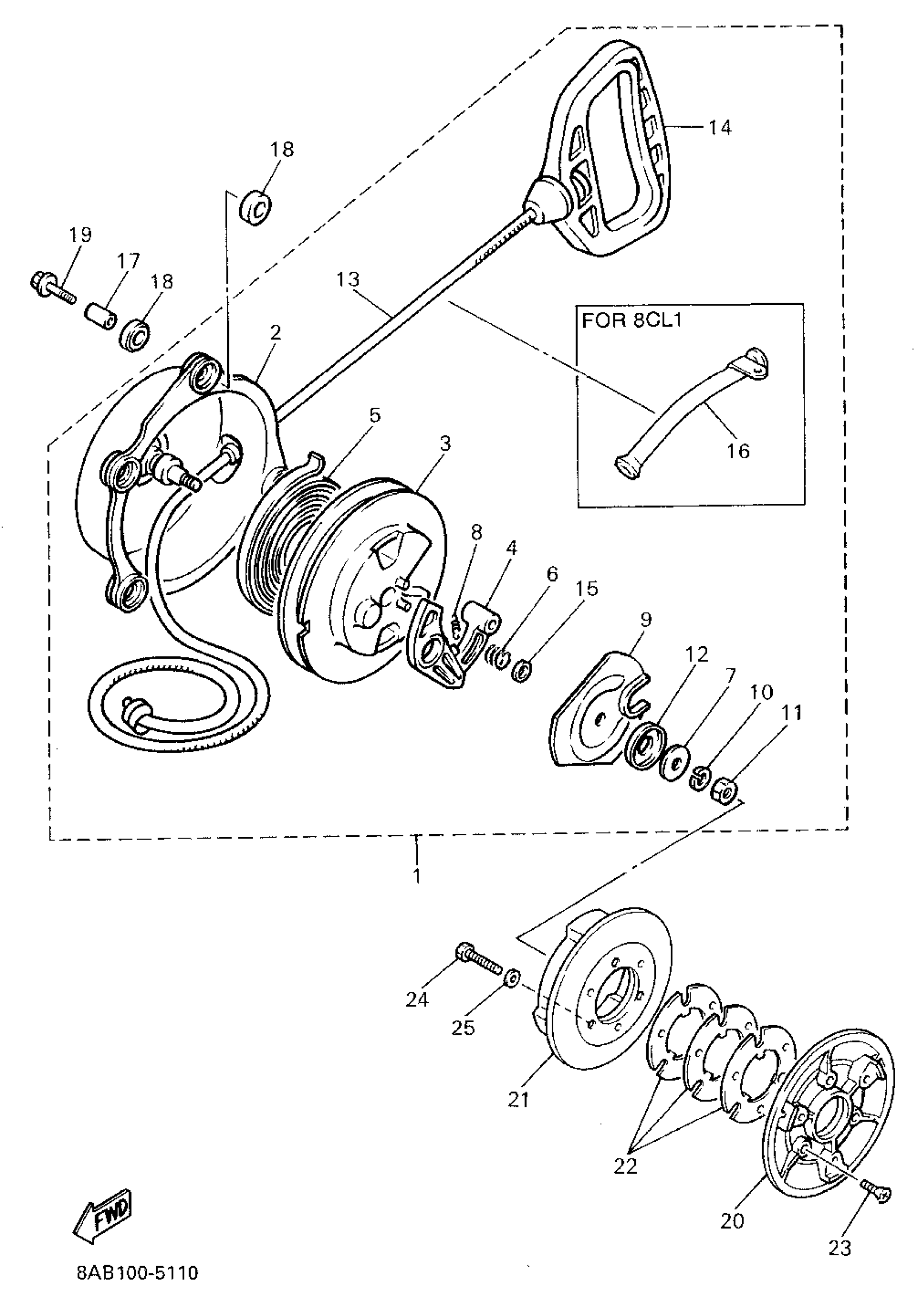

Yamaha VX500V (VMAX 500) 1995 STARTER Diagram
#
Description
Price
1
STARTER ASSY
84M-15710-01-00
Unavailable
1
STARTER ASSY
84M-15710-01-00
Unavailable
2
. CASE, STARTER
82M-15711-00-00
Unavailable
3
DRUM, SEAVE
8F3-15714-01-00
$48.99
4
PAWL, DRIVE
8F3-15741-01-00
$28.99
5
SPRING, STARTER
8F3-15713-01-00
$48.99
6
SPRING, DRIVE PLATE
8F3-15715-00-00
$9.99
7
WASHER, THRUST
8F3-15739-01-00
$11.99
8
SPRING, RETURN
8F3-15734-00-00
$5.49
9
. PLATE, DRIVE
82M-15716-00-00
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
11
NUT(650)
95380-06700-00
$8.49
12
WASHER, THRUST
8G5-15739-00-00
$9.49
13
WIRE, STARTER (BRAIDED)
89A-15751-00-00
$33.99
14
HANDLE, STARTER
8F3-15755-00-00
$29.99
15
COLLOR
82M-15779-00-00
Unavailable
16
. GUIDE, ROPE
8BB-15758-00-00
Unavailable
17
COLLAR
90387-063E9-00
Unavailable
18
BUSH (8M6)
90385-12036-00
Unavailable
19
BOLT, WITH WASHER(89J)
90119-06211-00
Unavailable
20
PULLEY 1
8CA-12618-00-00
Unavailable
21
PULLEY, STARTER
8CA-15723-00-00
Unavailable
22
SHIM
8CA-15721-00-00
Unavailable
22
SHIM
8CA-15721-00-00
Unavailable
23
SCREW, FLAT HEAD(4EM)
98707-06016-00
Unavailable
24
BOLT, HEXAGON
97017-08030-00
Unavailable
25
WASHER(6TA)
92907-08600-00
Unavailable
