PRIMARY SHEAVE

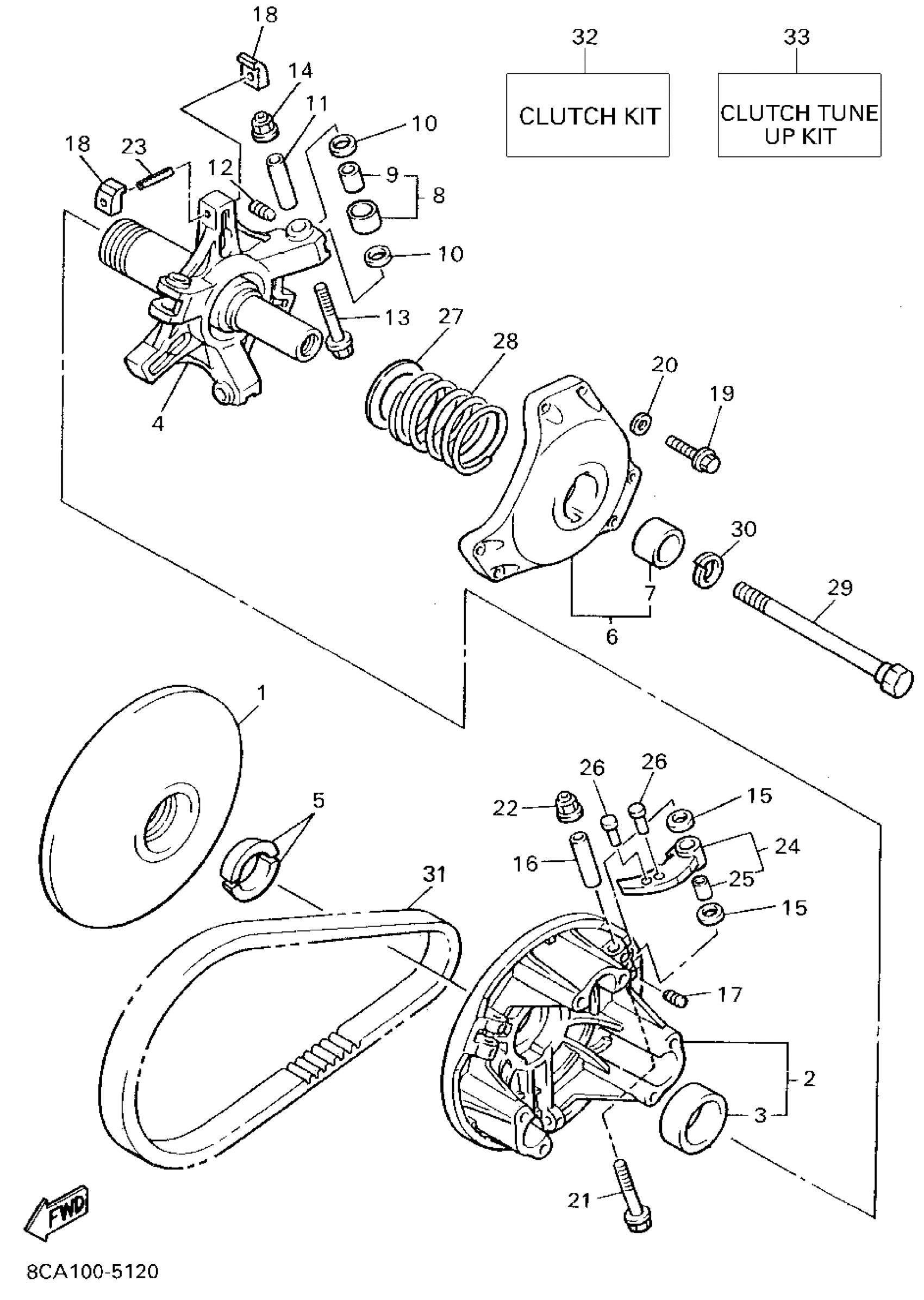

Yamaha VX500V (VMAX 500) 1995 PRIMARY SHEAVE Diagram
#
1
SHEAVE, PRIMARY FIXED
8BV-17611-19-00
Unavailable
2
PRIMARY SLIDING SHEAVE COMP.
8BV-17620-11-00
$437.99
3
BUSH, BIMETAL FORMED(8AS)
90384-41242-00
$60.99
4
SPIDER COMPLETE
8BW-17640-11-00
Unavailable
5
STOPPER
8V0-17639-00-00
$14.99
6
PRIMARY SHEAVE CAP COMP.
8BV-17630-12-00
Unavailable
7
. BUSH, BIMETAL FORMED
90384-28244-00
Unavailable
8
ROLLER, COMP
8BH-17624-20-00
$65.99
9
. BUSH, SOLID
90380-08229-00
Unavailable
10
WASHER, PLATE(88R)
90202-08204-00
$9.49
11
COLLAR
90387-0514T-00
$16.99
12
BOLT, SET
90113-05041-00
$8.49
13
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
14
NUT, S/L FLANGE
95607-05200-00
$9.49
15
WASHER, PLATE(88R)
90202-08204-00
$9.49
16
COLLAR
90387-0514T-00
$16.99
17
BOLT, SET
90113-05041-00
$8.49
18
SLIDER
8BW-17653-00-00
Unavailable
19
BOLT
95017-06030-00
Unavailable
20
WASHER(6TA)
92907-06600-00
Unavailable
21
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
22
NUT, S/L FLANGE
95607-05200-00
$9.49
23
PIN, SPRING (7F7)
91609-50032-00
Unavailable
24
WEIGHT COMP
8AB-17605-10-00
Unavailable
25
. BUSH, SOLID
90380-08244-00
Unavailable
26
RIVET. COUNTERSUNK HEAD(8AK)
90261-06015-00
Unavailable
26
RIVET, COUNTER SUNK (8G8)
90261-06017-00
Unavailable
26
RIVET, COUNTERSUNK HEAD (8K8)
90261-06019-00
Unavailable
26
RIVET, COUNTERSUNK HEAD(88R)
90261-06028-00
Unavailable
26
RIVET, COUNTERSUNK HEAD(88R)
90261-06028-00
Unavailable
26
RIVET, COUNTERSUNK (8AB1)
90261-06033-00
Unavailable
26
RIVET, COUNTERSUNK HEAD(8AB)
90261-06034-00
Unavailable
27
WASHER, PLATE(88S)
90201-483P9-00
Unavailable
28
SPRING, COMPRESSION(89L)
90501-521J6-00
Unavailable
28
PRIMARY SPRING
90501-525J8-00
Unavailable
28
SPRING, COMPRESSION(8AV)
90501-550J8-00
Unavailable
28
SPRING, COMPRESSION(8AB)
90501-555J9-00
Unavailable
28
SPRING, COMPRESSION(8AY)
90501-582J1-00
Unavailable
28
SPRING, COMPRESSION(8CG)
90501-585J3-00
Unavailable
28
SPRING, COMPRESSION(8AY)
90501-602J0-00
Unavailable
28
SPRING, COMPRESSION(8CG)
90501-605J5-00
Unavailable
29
BOLT (L=156.5MM)
8V0-17647-10-00
Unavailable
30
WASHER(JN5)
92907-16100-00
Unavailable
31
V-BELT
89L-17641-02-00
Unavailable
32
CLUTCH ASSY
8AB-17601-19-00
Unavailable
33
CLUTCH TUNE-UP KIT
8AB-00000-52-00
Unavailable
