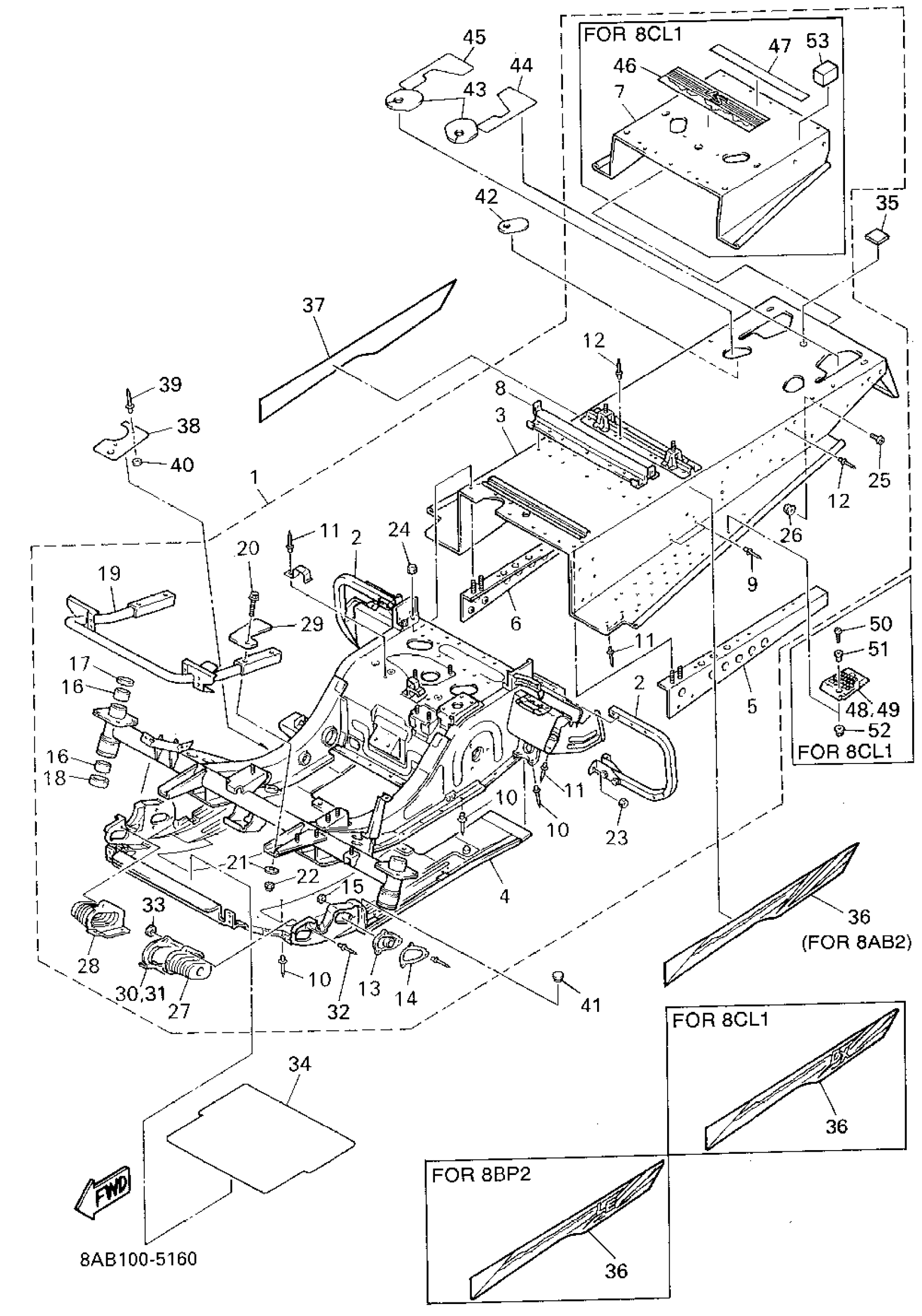

Yamaha VX500V (VMAX 500) 1995 FRAME Diagram
#
1
FRAME COMP.
8AB-21910-20-00
Unavailable
1
FRAME COMP.
8CL-21910-00-00
Unavailable
2
. REINFORCEMENT, FOOTREST 1
8AB-21926-00-00
Unavailable
3
FRAME PANEL BLACK
89A-21911-20-00
Unavailable
3
. PANEL, FRAME
8CL-21911-00-00
Unavailable
4
. PANEL, SUB FRAME 1
8AB-21912-00-00
Unavailable
5
. PATCH 4
8AB-21964-00-00
Unavailable
6
. PATCH 5
8AB-21965-00-00
Unavailable
7
PANEL, SUB-FRAME 5
8CL-21916-00-00
Unavailable
8
. BRACKET, SEAT FITTING
8AB-21946-00-00
Unavailable
9
RIVET, BLIND (8K1)
90267-40076-00
$8.49
10
RIVET, BLIND
90267-48018-00
$9.49
11
RIVET, BLIND (8J5)
90267-48057-00
$8.49
12
RIVET(89R)
90269-04044-00
Unavailable
13
COVER 1
8M6-2198F-00-00
$31.99
14
SPACER
8M6-21998-00-00
Unavailable
15
WASHER, PLATE
90201-04027-00
Unavailable
16
BUSH, BIMETAL FORMED (8M6)
90384-36134-00
Unavailable
17
OIL SEAL (8M6)
93102-36232-00
Unavailable
18
OIL SEAL (8M6)
93103-36117-00
Unavailable
19
. BUMPER, FRONT 2
8AB-77512-00-00
Unavailable
20
BOLT, FLANGE
95817-08040-00
Unavailable
21
WASHER, PLATE (3Y6)
90201-083A6-00
Unavailable
22
NUT, NYLON
95717-08300-00
Unavailable
23
NUT, NYLON
95707-06300-00
Unavailable
24
NUT, NYLON
95717-08300-00
Unavailable
25
. SCREW, BIND
98906-08014-00
Unavailable
26
NUT, FLANGE
95704-08500-00
Unavailable
27
. COVER 1
8AB-2198F-00-00
Unavailable
28
. COVER 2
8AB-2198G-00-00
Unavailable
29
. COVER 3
8AB-2198J-00-00
Unavailable
30
. PLATE, STRING BRACKET 1 (L, H)
82M-2195E-00-00
Unavailable
31
. PLATE, STRING BRACKET 2 (R, H)
82M-2195F-00-00
Unavailable
32
RIVET, BLIND
90267-47197-00
Unavailable
33
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
34
SHIELD, HEAT
8AB-2199H-00-00
Unavailable
35
DAMPER
5H0-8235Y-M0-00
Unavailable
36
EMBLEM 1
8AB-77351-20-00
Unavailable
36
EMBLEM 1
8BP-77351-00-00
Unavailable
36
EMBLEM 1
8CL-77351-00-00
Unavailable
37
EMBLEM 2
8AB-77352-20-00
Unavailable
37
EMBLEM 2
8BP-77352-00-00
Unavailable
37
EMBLEM 2
8CL-77352-00-00
Unavailable
38
SHIELD, NOISE
8AB-2199F-00-00
Unavailable
39
RIVET, BLIND
90267-48018-00
$9.49
40
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
41
PLUG(2GU)
90338-12192-00
Unavailable
42
PATCH 5
82M-21965-00-00
Unavailable
43
PATCH 5
88R-21965-00-00
Unavailable
44
COVER 6
8AB-1246J-00-00
Unavailable
45
COVER 7
8AB-1246K-00-00
Unavailable
46
EMBLEM 1
8BH-77351-00-00
Unavailable
47
LABEL, WARNING 2
88X-77762-10-00
Unavailable
48
FOOTREST, REAR 1
88T-27431-10-00
Unavailable
49
FOOTREST, REAR 2
88T-27441-10-00
Unavailable
50
SCREW, BINDING
98907-06025-00
Unavailable
51
COLLAR
90387-06158-00
Unavailable
52
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
53
SPACER
8BN-21998-00-00
Unavailable
