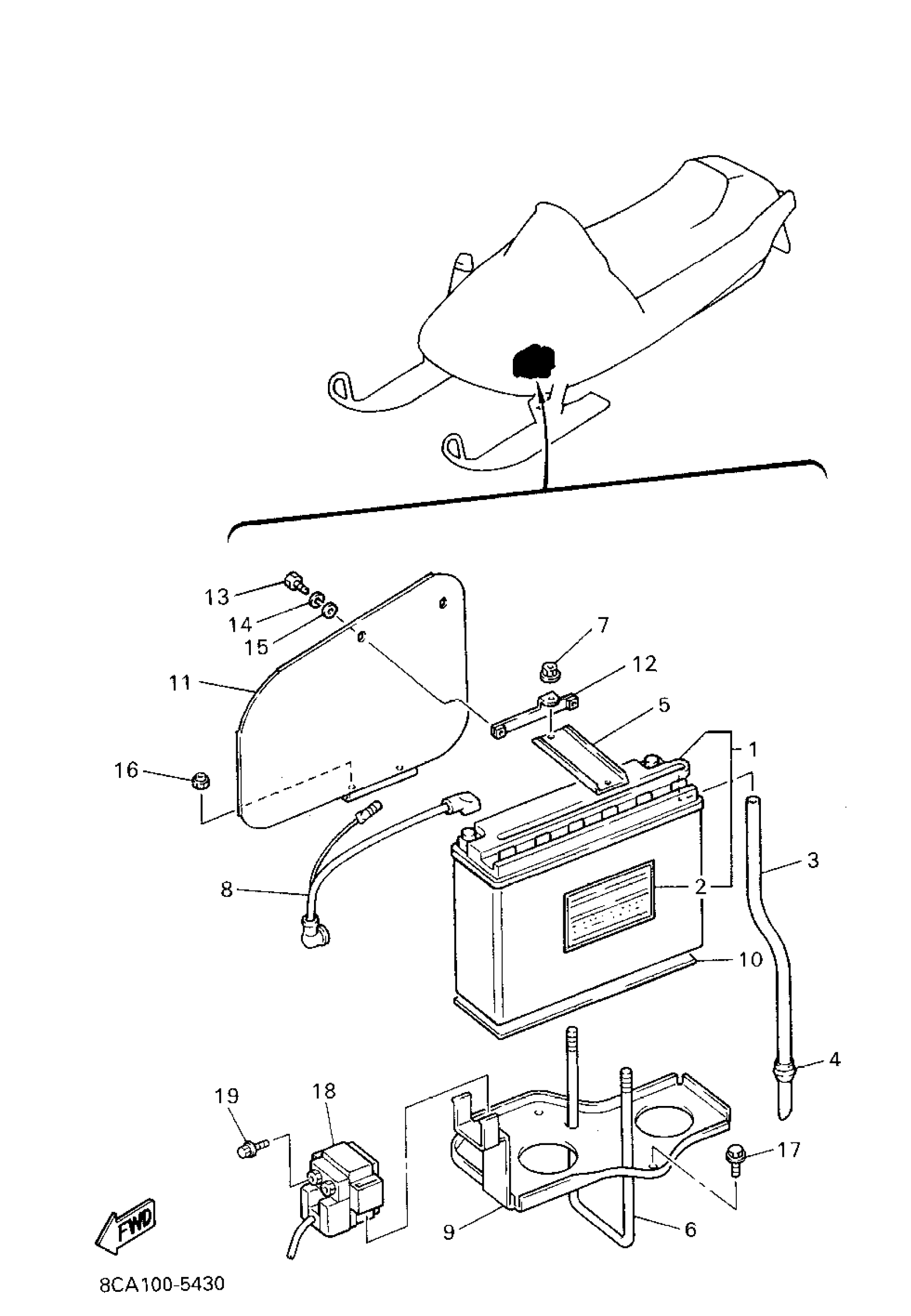

Find the part on the Electrical 2 diagram for your 1995 Yamaha Vmax 500 (VX500V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Vmax 500 (VX500V) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

1
Out of stock

2

LABEL, BATTERY

40A-82141-G0-00

1
Out of stock

3

HOSE

90445-086H3-00

1
Out of stock

4

GROMMET(3AA)

90480-12497-00

1

$2.75

In stock

5

. PLATE, BATTERY FITTING

84N-82136-00-00

1
Out of stock

6

. SCREW, FITTING

84N-82133-00-00

1
Out of stock

7

NUT, NYLON

95707-06300-00

1

$3.20

In stock

8

WIRE PLUS LEAD

84N-82115-00-00

1
Out of stock

9

BRACKET, BATTERY

8CL-2199G-00-00

1
Out of stock

10

SEAT, BATTERY

84N-82122-00-00

1

$4.38

In stock

11

SHIELD, HEAT

84N-2199H-01-00

1
Out of stock

12

. BRACKET, BATTERY

8V0-82128-00-00

1
Out of stock

13

BOLT

97027-05010-00

—

$5.62

In stock

14

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

15

WASHER(1RW)

92907-05600-00

1
Out of stock

16

NUT,SELF-LOCKING

95607-06200-00

—

$10.25

In stock

17

BOLT, FLANGE

95817-06010-00

—

$3.91

In stock

18

—

$62.22

In stock

19

BOLT, SMALL FLANGE

95027-06008-00

—

$5.60

In stock
