CARBURETOR 2 8AB 02

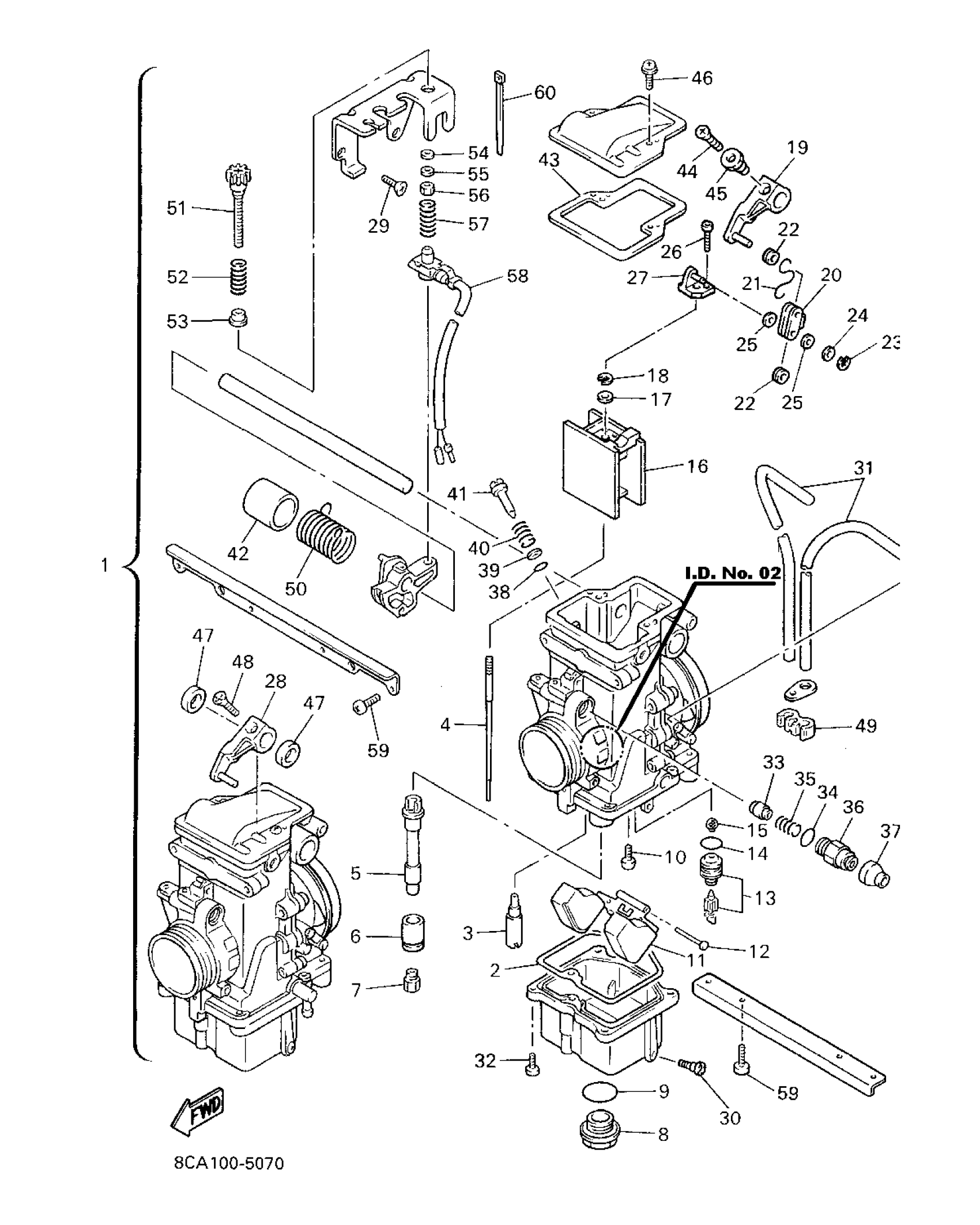

Yamaha VX500V (VMAX 500) 1995 CARBURETOR 2 8AB 02 Diagram
#
1
CARBURETOR ASSY
8AB-14100-02-00
Unavailable
2
O-RING
8AY-14147-00-00
$14.49
3
JET, PILOT (# 45)
3H1-14142-45-00
$15.49
3
JET, PILOT (# 50)
3H1-14142-50-00
$16.49
4
. NEEDLE
143-14116-A0-00
Unavailable
5
. NOZZLE, MAIN
8AY-14141-56-00
Unavailable
6
RING
89A-14194-00-00
$18.49
7
JET, MAIN (#140)
3G2-14231-28-00
$15.49
7
JET,MAIN #137.5
3G2-1423A-78-00
$14.49
7
JET MAIN (#143.8)
3G2-1423E-57-00
$16.49
7
JET, MAIN (#146.3)
3G2-1423E-58-00
$13.49
7
JET, MAIN #148.8
3G2-1423E-59-00
$13.49
7
JET, MAIN (#151.3)
3G2-1423E-60-00
$13.49
7
JET, MAIN (#153.8)
3G2-1423E-61-00
$11.99
7
JET, MAIN (#156.3)
3G2-1423E-62-00
$13.49
8
PLUG, SCREW
500-14115-00-00
Unavailable
9
O-RING (541)
558-14147-00-00
Unavailable
10
SCREW
2LN-14565-00-00
Unavailable
11
. FLOAT
8AY-14185-10-00
Unavailable
12
PIN, FLOAT
537-14186-00-00
Unavailable
13
NEEDLE VALVE ASSY
1AE-14190-15-00
Unavailable
14
O-RING
8F2-14147-00-00
Unavailable
15
NET, FILTER
1J7-14994-00-00
Unavailable
16
. VALVE, THROTTLE 1
8CD-14112-30-00
Unavailable
17
WASHER
8AB-14227-00-00
Unavailable
17
. WASHER (T=08MM)
8AY-14227-00-00
Unavailable
18
CLIP
256-14919-00-00
Unavailable
19
. LEVER, STARTER
8CD-14905-00-00
Unavailable
20
. PLATE
8AY-14243-00-00
Unavailable
21
. CLIP
8CD-14137-00-00
Unavailable
22
RING
3MA-14918-00-00
Unavailable
23
CLIP
3MA-14937-00-00
Unavailable
24
GASKET
620-14198-00-00
Unavailable
25
GASKET
3GF-14126-00-00
Unavailable
26
BOLT,SOCKET
91317-03012-00
Unavailable
27
CONNECTOR
8CD-14188-00-00
Unavailable
28
. LEVER, STARTER
8CD-14905-10-00
Unavailable
29
SCREW, FLAT
98707-05012-00
Unavailable
30
PLUG, DRAIN
12R-14191-00-00
Unavailable
31
HOSE
88R-14987-00-00
Unavailable
32
SCREW, PAN HEAD(3YL)
98580-05014-00
Unavailable
33
PLUNGER, STARTER
8U9-14171-00-00
Unavailable
34
O-RING
1AE-14147-00-00
Unavailable
35
SPRING, PLUNGER
127-14135-00-00
Unavailable
36
. HOLDER
8AY-14261-00-00
Unavailable
37
COVER, PLUNGER CAP
22F-14173-00-00
Unavailable
38
O-RING, PILOT SCREW
3H1-14147-00-00
Unavailable
39
WASHER
3L5-14962-00-00
Unavailable
40
. SPRING, AIR ADJUSTING
3F7-14134-00-00
Unavailable
41
. SCREW, AIR ADJUSTING
3A3-14123-00-00
Unavailable
42
. COLLAR
8AY-14265-00-00
Unavailable
43
. GASKET
8AY-14199-00-00
Unavailable
44
. SCREW, FLAT HEAD (98701-05018-00)
98703-05018-00
Unavailable
45
. RING
8AY-14918-00-00
Unavailable
46
SCREW, PAN HEAD WITH WASHER
97607-04108-00
Unavailable
47
. SPACER
583-14264-00-00
Unavailable
48
SCREW, FLAT
98707-05014-00
Unavailable
49
CLIP
87M-14137-00-00
Unavailable
50
SPRING
8CJ-14275-00-00
Unavailable
51
SCREW,THROTTLE
80L-14122-00-00
Unavailable
52
SPRING
8X0-14500-00-00
Unavailable
53
RING
8X0-14184-00-00
Unavailable
54
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
55
. WASHER
1UF-14952-00-00
Unavailable
56
NUT
89A-14594-00-00
Unavailable
57
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
58
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
59
SCREW, PAN HEAD(3YL)
98580-05014-00
Unavailable
60
CLIP, PIPE
35H-14139-00-00
Unavailable
