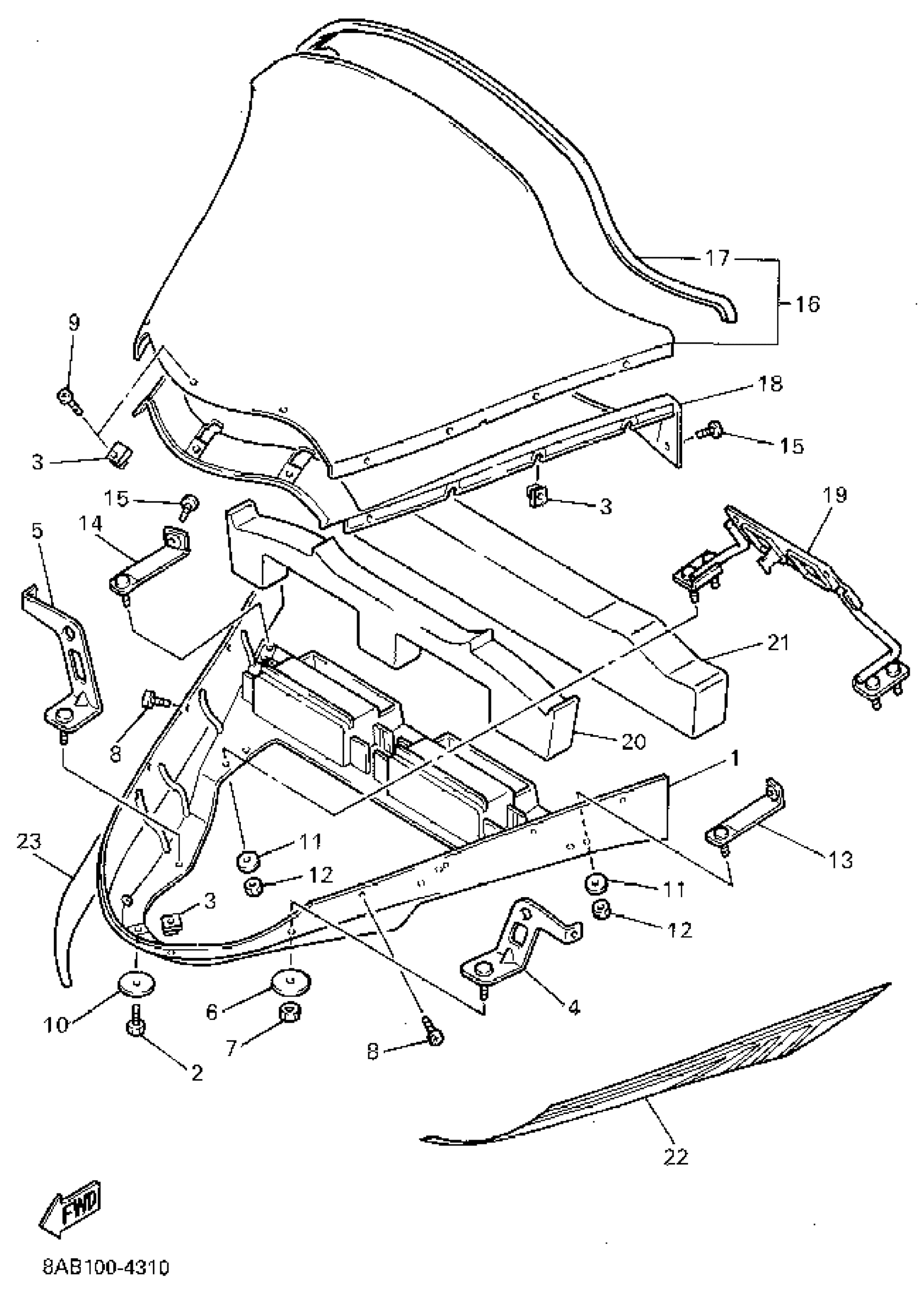

Yamaha VX500U (VMAX 500) 1994 WINDSHIELD Diagram

#

Description
Price

1

FAIRING

89A-77231-00-00

Unavailable

1

FAIRING

8AB-77231-00-00

Unavailable

2

BOLT(6A1)

97095-05016-00

$1.11

3

NUT

89A-77144-00-00

Unavailable

4

STAY 1

8AB-77125-00-00

Unavailable

5

STAY 2

8AB-77126-00-00

Unavailable

6

WASHER, PLATE (3Y6)

90201-083A6-00

$2.65

7

NUT(6L2)

95333-08600-00

$2.49

8

SCREW, BINDING(2EK)

90154-05042-00

$8.49

9

SCREW, ROUND HEAD(88R)

90150-05028-00

$4.29

10

WASHER, PLATE (7N7)

90201-052E8-00

$4.72

11

WASHER, PLATE

90201-06747-00

$8.49

12

NUT, U FLANGE

95604-06200-00

$8.49

13

PLATE, BACK UP 1

89A-77153-00-00

Unavailable

14

PLATE, BACK UP 2

89A-77154-00-00

Unavailable

15

SCREW, BINDING (10V)

90154-05013-00

Unavailable

16

WINDSHIELD COMP. (89A-77210-00-00)

89A-77210-00-XX

Unavailable

17

TRIM,UPPER

87K-77213-00-00

Unavailable

18

COVER, HEADLIGHT

89A-77251-00-00

Unavailable

19

BRACKET, METER

89A-83519-00-00

Unavailable

20

LINING, SHROUD

8AB-77268-00-00

Unavailable

21

SHIELD, NOISE 2

89A-2199J-00-00

Unavailable

22

EMBLEM 5

8BB-77355-00-00

Unavailable

23

EMBLEM 6

8BB-77356-00-00

Unavailable
