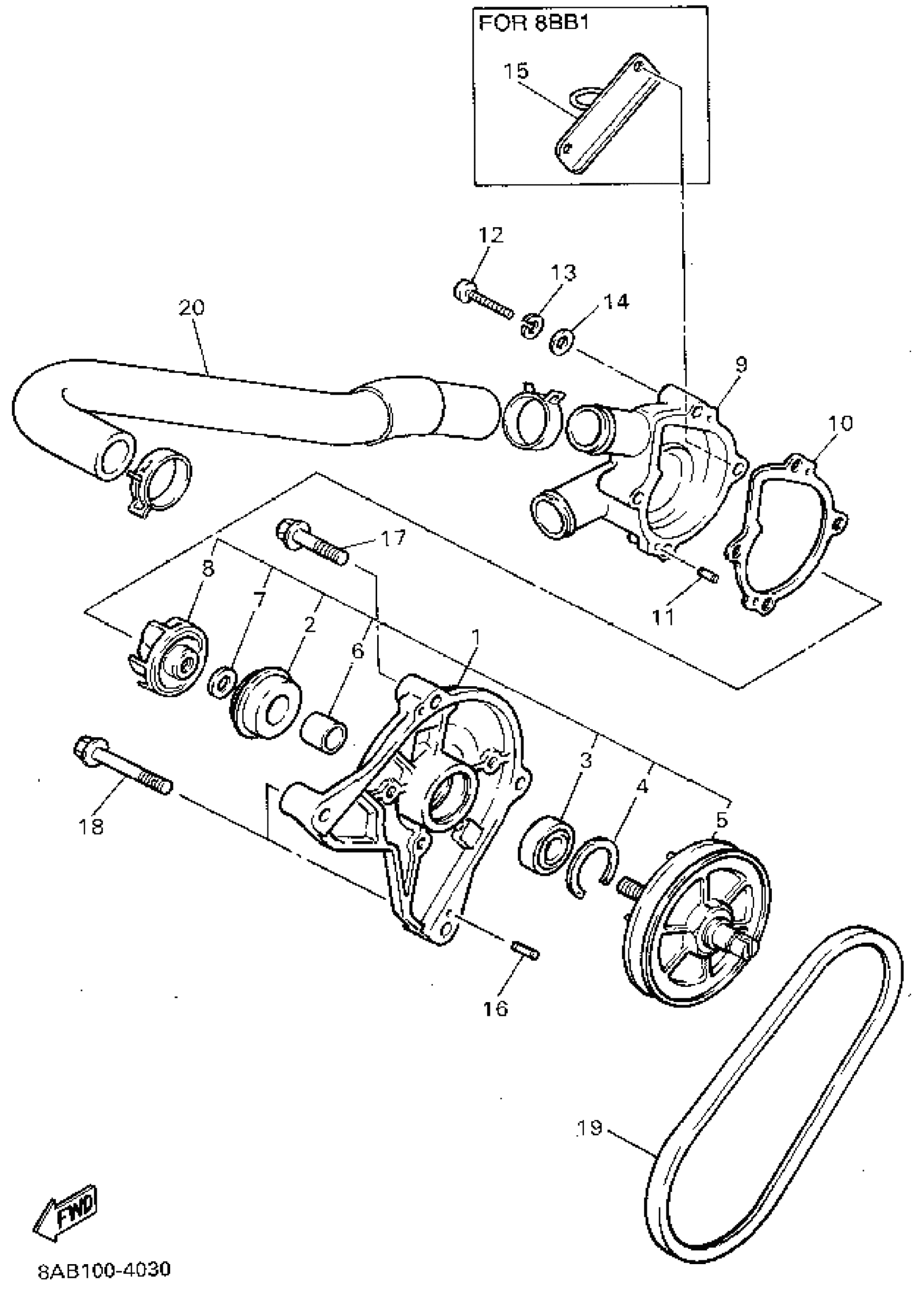

Yamaha VX500U (VMAX 500) 1994 WATER PUMP Diagram

#

Description
Price

1

HOUSING,WATER PUMP

8AB-W1247-02-00

Unavailable

2

SEAL, MECHANICAL

82M-12438-00-00

Unavailable

3

BEARING(82M)

93306-20117-00

$34.99

4

CIRCLIP(82M)

93450-34118-00

$0.60

5

HOUSING,WATER PUMP

8AB-W1247-02-00

Unavailable

6

STOPPER

82M-12437-00-00

Unavailable

7

WASHER, PLATE 2562171800

90201-08088-00

Unavailable

8

IMPELLER, WATER PUMP

82M-12451-00-00

Unavailable

9

COVER,HOUSING

8AB-12422-01-00

Unavailable

10

GASKET,HSNG CVR 1

82M-12427-01-00

Unavailable

11

PIN,DOWEL (603)

93604-10011-00

$8.49

12

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

COVER

8BB-15779-00-00

Unavailable

16

PIN,DOWEL (168)

93604-12037-00

Unavailable

17

BOLT, FLANGE

95817-08040-00

Unavailable

18

BOLT, FLANGE(2UJ)

95814-08110-00

Unavailable

19

BELT 1

82M-12444-00-00

Unavailable

20

PIPE 1

82M-12481-00-00

Unavailable
