- VX500U (VMAX 500) 1994
TRACK SUSPENSION 2

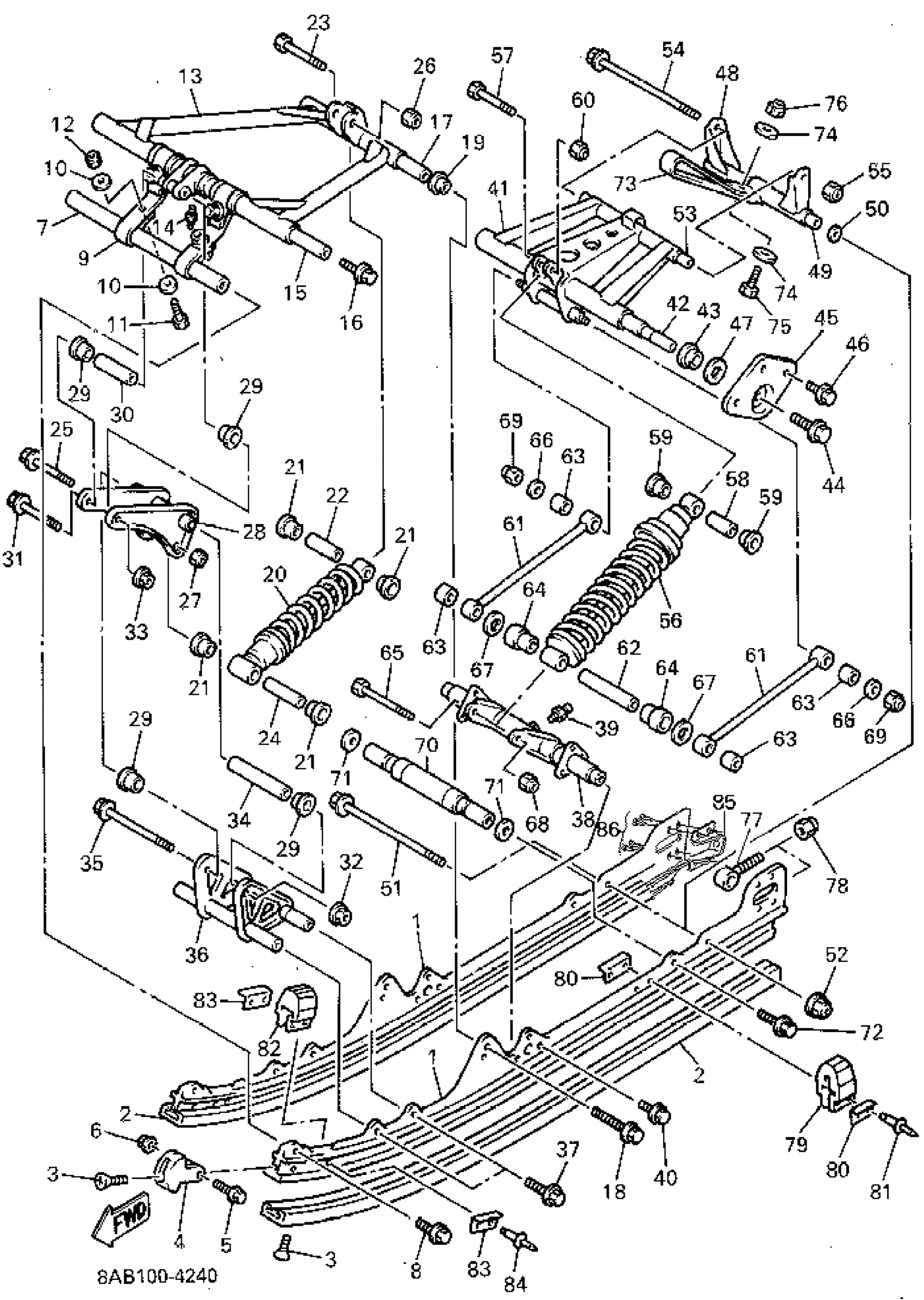

Yamaha VX500U (VMAX 500) 1994 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING
8AX-W4741-00-00
Unavailable
1
FRAME, SLIDING
8BX-W4741-00-00
Unavailable
2
RUNNER, SLIDING 1 (8AB-47421-00-00)
8AB-47421-10-XX
Unavailable
2
RUNNER 1, RED
8BX-47421-10-XX
Unavailable
3
SCREW, COUNTERSUNK
90151-06057-00
Unavailable
4
RUNNER,SLIDING 2
8AX-47422-01-00
Unavailable
5
BOLT, FLANGE
95817-06040-00
$5.60
6
NUT, U FLANGE
95604-06200-00
$8.49
7
SHAFT 3
82M-47485-02-00
Unavailable
8
BOLT, FLANGE
95817-10030-00
$8.49
9
STOPPER 1
8AB-47495-00-00
Unavailable
10
WASHER, PLATE
90201-06747-00
$8.49
11
BOLT, HEXAGON
97017-06025-00
$4.24
12
NUT, NYLON
95707-06300-00
$3.50
13
ARM,PIVOT 1
89A-47331-03-00
Unavailable
14
NIPPLE, GREASE
93700-06M03-00
Unavailable
15
SHAFT 6
8CM-47488-10-00
Unavailable
16
BOLT (8V0)
90109-10771-00
Unavailable
17
SHAFT 3
82M-47485-02-00
Unavailable
18
BOLT, FLANGE
95817-10030-00
$8.49
19
COLLAR (8U7)
90387-105G6-00
Unavailable
20
SHOCK ABSORBER 2
8AB-47481-00-00
Unavailable
20
SHOCK ABSORBER 2
8BN-47481-00-00
Unavailable
21
COLLAR (8U7)
90387-123G4-00
Unavailable
22
COLLAR
90387-08775-00
Unavailable
23
. BOLT
90101-08557-00
Unavailable
24
COLLAR
90387-08478-00
Unavailable
25
BOLT, FLANGE
95814-08065-00
Unavailable
26
NUT, SELF-LOCKING
90185-08169-00
Unavailable
27
NUT, U
95617-08100-00
Unavailable
28
BRACKET 6
8U7-47464-00-00
Unavailable
29
COLLAR
90387-123G5-00
Unavailable
30
COLLAR
90387-08478-00
Unavailable
31
BOLT, FLANGE(JN5)
95817-08070-00
Unavailable
32
NUT, SELF-LOCKING
90185-08169-00
Unavailable
33
NUT, SELF-LOCKING
90185-08169-00
Unavailable
34
COLLAR
90387-084G0-00
Unavailable
35
BOLT, FLANGE
95817-08100-00
Unavailable
36
BRACKET 4
8AX-47418-00-00
Unavailable
37
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
38
BRACKET 2
8AX-47416-01-00
Unavailable
39
NIPPLE, GREASE
93700-06M03-00
Unavailable
40
BOLT, FLANGE
95817-06020-00
Unavailable
41
ARM, PIVOT 2
8AV-47332-01-00
Unavailable
42
SHAFT 2
89A-47475-01-00
Unavailable
42
SHAFT 2
8AB-47475-00-00
Unavailable
43
COLLAR
88R-47319-00-00
Unavailable
43
COLLAR
8BN-47319-00-00
Unavailable
44
BOLT (8V0)
90109-10771-00
Unavailable
45
BRACKET,REAR 2
8AB-47425-00-00
Unavailable
46
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
47
WASHER, PLATE (856)
90201-10321-00
Unavailable
48
BRACKET 3
8U7-47417-00-00
Unavailable
49
COLLAR
90387-08632-00
Unavailable
50
WASHER (1T1)
90201-08649-00
Unavailable
51
BOLT, WASHER BASED(51X)
90105-08346-00
Unavailable
52
NUT, SELF-LOCKING
90185-08169-00
Unavailable
53
COLLAR (8U7)
90387-083G6-00
Unavailable
54
BOLT, FLANGE
95827-08220-00
Unavailable
55
NUT, SELF-LOCKING
90185-08169-00
Unavailable
56
SHOCK ABSORBER
8AB-47480-00-00
Unavailable
56
SHOCK ABSORBER
8BN-47480-00-00
Unavailable
56
SHOCK ABSORBER
8BA-47480-00-00
Unavailable
56
SHOCK ABSORBER
8BN-47480-00-00
Unavailable
57
BOLT(88R)
90101-10738-00
Unavailable
58
COLLAR (8U7)
90387-105G5-00
Unavailable
59
COLLAR (8U7)
90387-145G7-00
Unavailable
60
NUT, U
95617-10100-00
Unavailable
61
ROD, RELAY
8U7-47494-02-00
Unavailable
62
COLLAR
90387-1007P-00
Unavailable
63
COLLAR (8U7)
90387-143G7-00
Unavailable
64
COLLAR (8U7)
90387-144G2-00
Unavailable
65
BOLT
90101-10747-00
Unavailable
66
WASHER (853)
90201-08326-00
Unavailable
67
WASHER PLATE 148272190000
90201-14215-00
Unavailable
68
NUT, SELF-LOCKING (8U7)
90185-10115-00
Unavailable
69
NUT, NYLON
95717-08300-00
Unavailable
70
SHAFT 4
84J-47486-00-00
Unavailable
71
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
72
BOLT, FLANGE
95817-10030-00
$8.49
73
STOPPER 2
8AB-47496-00-00
Unavailable
74
WASHER, PLATE
90201-06747-00
$8.49
75
BOLT(3RV)
97014-06035-00
Unavailable
76
NUT, NYLON
95707-06300-00
$3.50
77
COLLAR 3
8K2-47479-01-00
Unavailable
78
NUT, NYLON
95707-10300-00
Unavailable
79
DAMPER 1
89A-47456-00-00
Unavailable
80
PLATE, DAMPER
8K2-47458-01-00
Unavailable
81
RIVET, BLIND (8K4)
90267-48062-00
Unavailable
82
DAMPER 1
83R-47456-00-00
Unavailable
83
PLATE, DAMPER
8K2-47458-01-00
Unavailable
84
RIVET, BLIND (8K4)
90267-48062-00
Unavailable
85
BRACKET
8V0-4741B-00-00
Unavailable
86
RIVET
8V0-47468-00-00
Unavailable
