TRACK DRIVE 2 (8BB1)

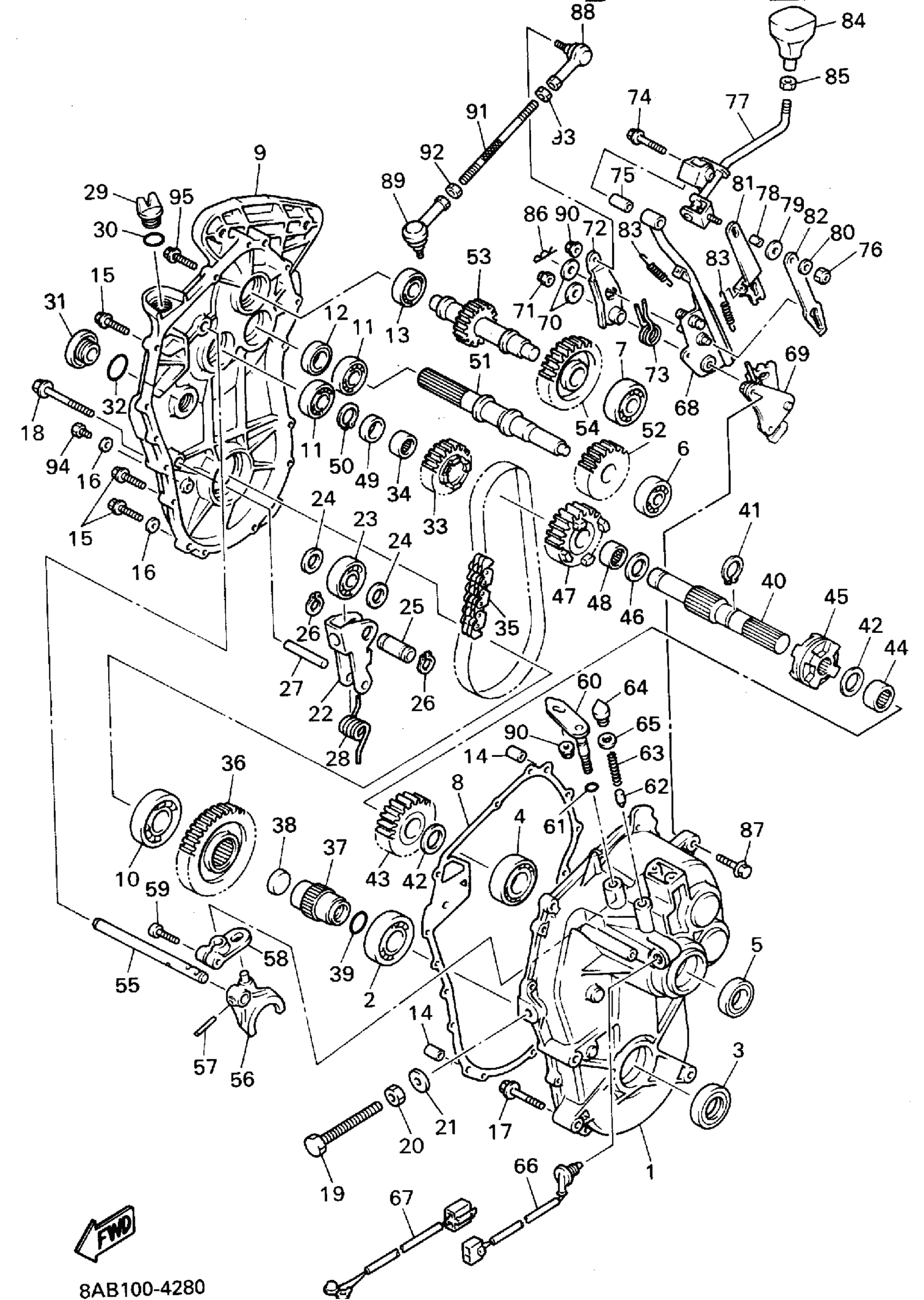

Yamaha VX500U (VMAX 500) 1994 TRACK DRIVE 2 (8BB1) Diagram
#
1
HOUSING, CHAIN
8BB-47541-00-00
Unavailable
2
BRG,R-B 6007 62MM 150G KY
93306-00702-00
$61.99
3
OIL SEAL (705)
93102-35191-00
$18.99
4
BEARING (80N)
93306-20570-00
Unavailable
5
OIL SEAL (25X44X6-810)
93102-25081-00
$5.60
6
BEARING (7X9)
93306-20327-00
$38.99
7
BEARING(1GJ)
93306-20458-00
$43.99
8
GASKET
8BB-47592-00-00
Unavailable
9
CAP,HOUSING
8BB-47543-01-00
Unavailable
10
BRG,R-B 6007 62MM 150G KY
93306-00702-00
$61.99
11
BEARING (30X)
93306-20447-00
$41.99
12
OIL SEAL (22X42X7)
93102-22014-00
$12.49
13
BEARING (7X9)
93306-20327-00
$38.99
14
PIN, DOWEL(3VD)
99530-10114-00
$2.55
15
BOLT, FLANGE
95817-06035-00
$7.49
16
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
17
BOLT, FLANGE
95817-08040-00
Unavailable
18
BOLT, FLANGE
95817-08075-00
Unavailable
19
BOLT, HEXAGON (899 TRACK)
90101-10293-00
Unavailable
20
NUT (682)
95380-10700-00
Unavailable
21
WASHER SEAL 256111730200
90210-10004-00
Unavailable
22
HOLDER
88T-47613-00-00
Unavailable
23
BRG,R-B 6304 52MM 144G NT
93306-30407-00
Unavailable
24
WASHER, PLATE(2WG)
90201-204M9-00
Unavailable
25
SHAFT 2
88T-12257-00-00
Unavailable
26
CIRCLIP(1AR)
99009-20400-00
Unavailable
27
SHAFT, TENSIONER
88T-12247-00-00
Unavailable
28
SPRING, TORSION
90508-324A8-00
Unavailable
29
PLUG, OIL
3Y1-15363-10-00
Unavailable
30
O-RING (646)
93210-19123-00
Unavailable
31
PLUG, OIL
3FV-15363-00-00
Unavailable
32
O-RING(1KT)
93210-27778-00
Unavailable
33
SPROCKET, CHAIN DRIVE (20T)
8BB-17682-00-00
Unavailable
33
SPROCKET, CHAIN DRIVE (17T)
8BB-17682-70-00
Unavailable
33
SPROCKET, CHAIN DRIVE (18T)
8BB-17682-80-00
Unavailable
33
SPROCKET, CHAIN DRIVE (19T)
8BB-17682-90-00
Unavailable
34
BEARING, CYLINDRICAL (33A)
93317-32241-00
Unavailable
35
CHAIN (68L)
94880-03068-00
Unavailable
35
CHAIN (70L)
94880-03070-00
Unavailable
35
CHAIN (72L)
94880-03072-00
Unavailable
36
SPRKT,CHN DRVN 33T
8BB-47587-30-00
Unavailable
36
SPRKT, CHN DRN 35T
8BB-47587-50-00
Unavailable
36
SPROCKET, CHAIN DRIVEN (37T)
8BB-47587-70-00
Unavailable
36
SPROCKET, CHAIN DRIVEN (39T)
8BB-47587-90-00
Unavailable
37
JOURNAL 1
8BB-47571-00-00
Unavailable
38
PLUG(8BB)
90331-28102-00
Unavailable
39
O-RING (437)
93210-24235-00
Unavailable
40
AXLE, DRIVE
8BB-17421-00-00
Unavailable
41
CIRCLIP (256)
93410-25017-00
Unavailable
42
WASHER, PLATE(8BB)
90201-250R9-00
Unavailable
43
GEAR, REVERSE PINION 1
8BB-17143-00-00
Unavailable
44
BEARING, CYLINDRICAL
93317-42575-00
Unavailable
45
DOG, TRANSMISSION SHIFT
8BB-17492-00-00
Unavailable
46
WASHER, PLATE(83R)
90201-224L4-00
Unavailable
47
GEAR, REVERSE WHEEL 2
8BB-17253-00-00
Unavailable
48
BEARING, CYLINDRICAL (33A)
93317-32241-00
Unavailable
49
COLLAR
90387-227Y8-00
Unavailable
50
CIRCLIP(1EY)
99009-22400-00
Unavailable
51
AXLE, IDLE
8BB-17432-00-00
Unavailable
52
GEAR, MIDDLE DRIVEN
8BB-17583-00-00
Unavailable
53
AXLE, COUNTER
8BB-17431-00-00
Unavailable
54
GEAR, REVERSE WHEEL1
8BB-17243-00-00
Unavailable
55
BAR, SHIFT FORK GUIDE 1
8BB-18531-00-00
Unavailable
56
FORK, SHIFT 1
88T-18511-00-00
Unavailable
57
PIN, SPRING (91609-40025-00)
91609-40024-00
Unavailable
58
LEVER
8CL-18191-00-00
Unavailable
59
BOLT,SOCKET
91317-06020-00
Unavailable
60
LEVER, SHIFT 3
8BB-18151-00-00
Unavailable
61
O-RING (1J7)
93210-09350-00
Unavailable
62
PIN
90249-07217-00
Unavailable
63
SPRING, COMPRESSION(88K)
90501-124G3-00
Unavailable
64
PLUG, STRAIGHT SCREW
90340-10136-00
Unavailable
65
WASHER, PLATE(56J)
90201-106H5-00
Unavailable
66
NEUTRAL SWITCH ASSY
136-82540-03-00
Unavailable
67
WIRE, SUB-LEAD
87L-82318-01-00
Unavailable
68
ARM, SHIFT
8BB-18112-00-00
Unavailable
69
GUIDE, PLATE STOPPER
8BB-18161-00-00
Unavailable
70
WASHER, PLATE(8AT)
90201-081R9-00
Unavailable
71
NUT, NYLON
95717-08300-00
Unavailable
72
LEVER, SHIFT 2
8BB-18122-00-00
Unavailable
73
SPRING
8BB-18123-00-00
Unavailable
74
BOLT, FLANGE
95817-06035-00
$7.49
75
. COLLAR
90387-06605-00
Unavailable
76
NUT, NYLON
95707-05300-00
Unavailable
77
LEVER, SHIFT 4 (8BB)
99999-02880-00
Unavailable
78
COLLAR (26H)
90387-053H3-00
Unavailable
79
WASHER PLATE 122217250000
90202-07015-00
Unavailable
80
WASHER, PLATE(39X)
90201-057H5-00
Unavailable
81
GUIDE, SHIFT
8BB-18172-00-00
Unavailable
82
GUIDE, SHIFT RETURN SPRING
8BB-18153-00-00
Unavailable
83
SPRING 214-14683-01
90506-12029-00
Unavailable
84
KNOB, SHIFT LEVER
8BB-18174-00-00
Unavailable
85
NUT (3WP1)
95317-10700-00
Unavailable
86
CLIP (7U6)
90468-18121-00
Unavailable
87
BOLT, FLANGE(6TA)
95817-08030-00
Unavailable
88
JOINT 2
88T-18157-00-00
Unavailable
89
JOINT, UNIVERSAL 2
J45-23845-00-00
Unavailable
90
NUT, U FLANGE
95604-06200-00
Unavailable
91
JOINT, ROD 1
88T-18116-01-00
Unavailable
92
NUT(JN5)
95317-06700-00
Unavailable
93
NUT (2H9)
90170-06228-00
Unavailable
94
BOLT(3JP)
97017-06010-00
Unavailable
95
BOLT, FLANGE
95817-06055-00
Unavailable
