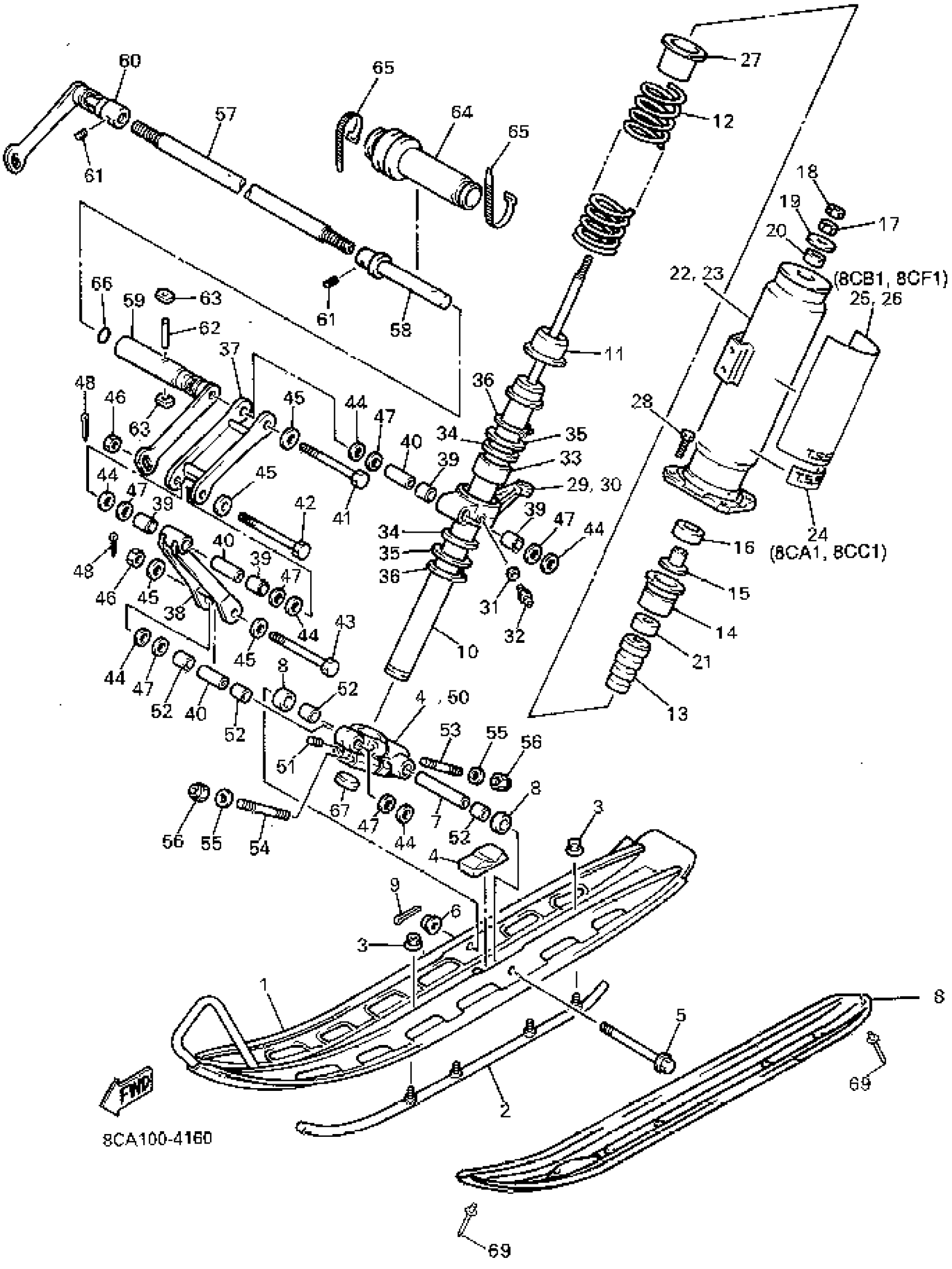

Yamaha VX500U (VMAX 500) 1994 SKI Diagram
#
1
SKI 1
8AB-23710-01-00
Unavailable
2
RUNNER 1
8AB-23731-00-XX
Unavailable
3
NUT, SELF-LOCKING
90185-08169-00
$8.49
4
STOPPER 1
8AB-23743-01-00
Unavailable
5
BOLT, WASHER BASED(8AB)
90105-10712-00
$17.99
6
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
7
COLLAR(8AB)
90387-1002P-00
$21.99
8
RUNNER 2
8AB-23732-11-RD
Unavailable
9
PIN, COTTER
91490-20025-00
$1.99
10
DAMPER SUB ASSEMBLY
8BN-22401-00-00
Unavailable
10
DAMPER SUB ASSEMBLY
8BN-22401-00-00
Unavailable
11
SEAT, SPRING 2
82M-23777-00-00
Unavailable
12
SPRING, COMPRESSION
90501-654J7-00
Unavailable
12
SPRING, COMPRESSION
90501-752J4-00
Unavailable
12
SPRING, COMPRESSION
90501-753J5-00
Unavailable
12
SPRING, COMPRESSION
90501-783J6-00
Unavailable
12
SPRING, COMPRESSION
90501-824J8-00
Unavailable
13
BUMP, STOP
89L-22493-00-00
Unavailable
14
PLATE, BACK UP
8AB-23788-00-00
Unavailable
15
COLLAR(82M)
90387-084R1-00
Unavailable
16
WASHER
82M-23779-00-00
Unavailable
17
. NUT
90170-08220-00
Unavailable
18
NUT(6L2)
95333-08600-00
Unavailable
19
WASHER, PLATE(82M)
90201-080L1-00
Unavailable
20
COLLAR
90387-1702A-00
Unavailable
21
COLLAR
90387-1102B-00
Unavailable
22
HOLDER,ABSORBER
8AB-2376J-10-00
Unavailable
22
HOLDER,ABSORBER
8AS-2376J-10-00
Unavailable
23
HOLDER,ABSORBER 2
8AB-2377J-10-00
Unavailable
23
HOLDER,ABSORBER 2
8AS-2377J-10-00
Unavailable
24
EMBLEM 15
8AP-77371-00-00
Unavailable
25
EMBLEM 15
8BB-77371-00-00
Unavailable
26
EMBLEM 15
8BB-77371-00-00
Unavailable
27
PROTECTOR
8AB-2376R-01-00
Unavailable
28
BOLT, HEXAGON
97017-06020-00
Unavailable
29
ARM, OUTSIDE 1
82M-23851-00-00
Unavailable
30
ARM, OUTSIDE 2 (R, H)
82M-23852-00-00
Unavailable
31
WASHER, PLATE (8U7)
90201-067F9-00
Unavailable
32
NIPPLE, GREASE
93700-06M03-00
Unavailable
33
BUSH, BIMETAL FORMED (8U7)
90384-53175-00
Unavailable
34
OIL SEAL (8U7)
93109-53036-00
Unavailable
35
WASHER, PLATE(8W1)
90201-535H6-00
Unavailable
35
WASHER, PLATE (8L9)
90201-536A1-00
Unavailable
36
CIRCLIP (8L9)
93410-52061-00
Unavailable
37
ARM, FRONT 1
8AB-2382E-00-00
Unavailable
38
ARM, FRONT 2
8AB-2382F-00-00
Unavailable
39
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
40
COLLAR(89A)
90387-101Y9-00
Unavailable
41
BOLT
90101-10040-00
Unavailable
42
BOLT, WITH HOLE
90102-10074-00
Unavailable
43
BOLT, WITH HOLE
90102-10077-00
Unavailable
44
WASHER, PLATE (8M6)
90201-105A8-00
Unavailable
45
WASHER, PLATE (8M6)
90201-115A7-00
Unavailable
46
NUT, SELF LOCKING (3G1)
90185-10091-00
Unavailable
47
WASHER(82M)
90209-14296-00
Unavailable
48
PIN, COTTER
91490-20025-00
$1.99
49
BRACKET 1
84M-2376E-00-00
Unavailable
50
BRACKET 2
84M-2377E-00-00
Unavailable
51
BOLT, SET (8K2)
90113-06039-00
Unavailable
52
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
53
BOLT, STUD 3
95617-08655-00
Unavailable
54
BOLT, STUD 3
95617-08640-00
Unavailable
55
.. WASHER, PLATE
92990-08600-00
Unavailable
56
NUT, NYLON
95717-08300-00
Unavailable
57
BAR,STABLZR FRONT
8AB-2386E-01-00
Unavailable
58
LINK, STABILIZER FRONT
8AB-2386F-01-00
Unavailable
59
JOINT, STABILIZER 1
8CL-2385L-00-00
Unavailable
60
JOINT, STABILIZER 2
8CL-2385M-00-00
Unavailable
61
BOLT, SET (8K2)
90113-06039-00
Unavailable
62
PIN, DOWEL
93606-25249-00
Unavailable
63
SLIDER
8AB-2386R-00-00
Unavailable
64
COVER, STABILIZER FRONT
89A-2386H-00-00
Unavailable
65
BAND
1UA-82591-00-00
Unavailable
66
O-RING
93210-15751-00
Unavailable
67
CAP 1
8AY-23741-00-00
Unavailable
68
RUNNER 2
8AB-23732-11-RD
Unavailable
68
SKISKIN PURVMAX5/6
8CM-23732-15-XX
Unavailable
69
RIVET, BLIND(89A)
90267-48160-00
Unavailable
