1994 Yamaha Vmax 500 (VX500U) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1994 Yamaha Vmax 500 (VX500U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

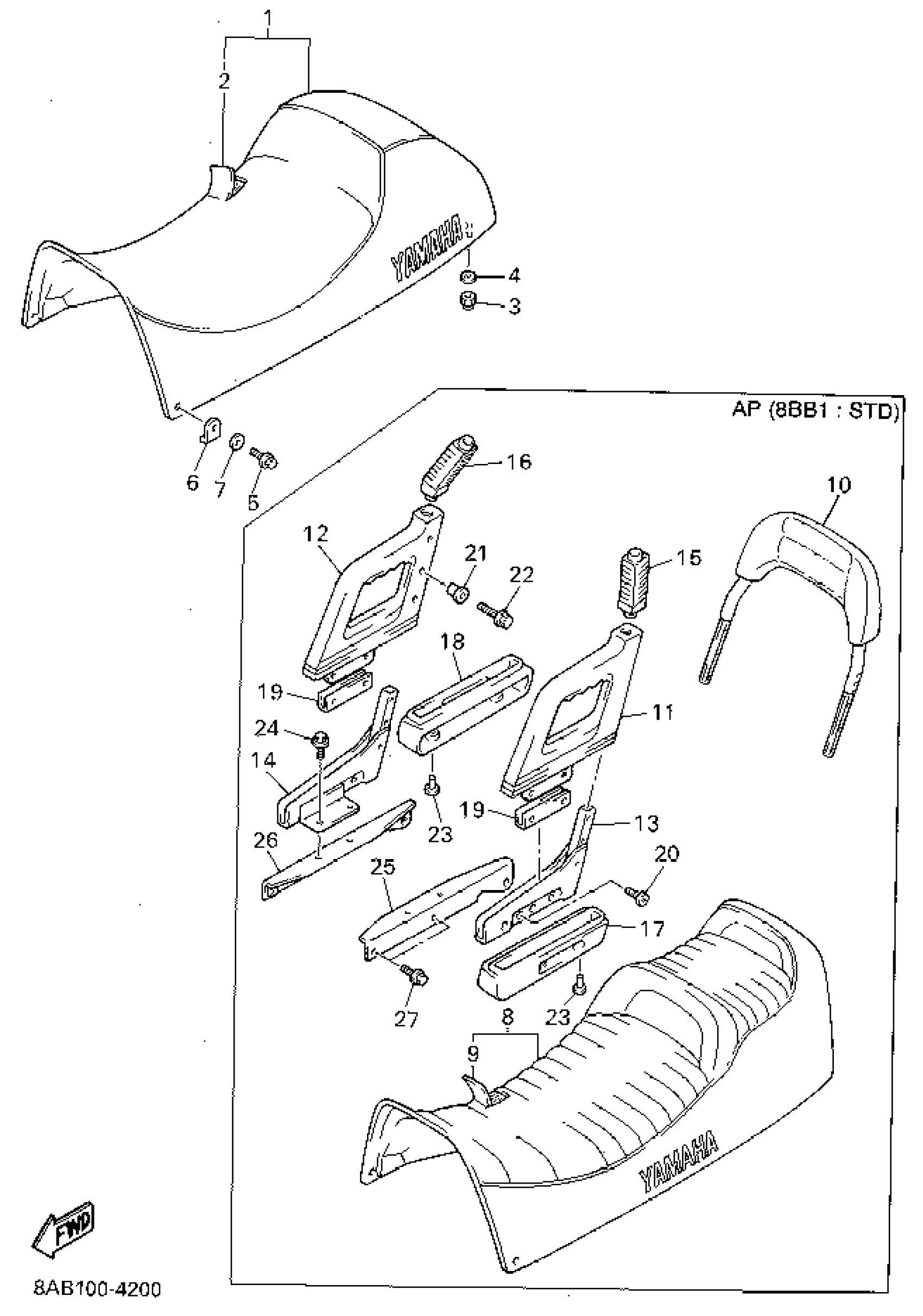

1994 Yamaha Vmax 500 (VX500U) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASY

8AB-24710-10-00

1
Out of stock

2

COVER,SEAT

8AB-2470F-10-00

1
Out of stock

3

NUT, NYLON

95717-08300-00

1

$2.57

In stock

4

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

5

BOLT, SMALL FLANGE

95027-06025-00

1

$3.18

In stock

6

WASHER, CLAW

90214-14068-00

1
Out of stock

7

WASHER, PLATE(36Y)

90201-063J2-00

1

$4.45

In stock

8

DOUBLE SEAT ASY

8BB-24730-01-00

1
Out of stock

9

COVER,SEAT

8BB-2470F-01-00

1
Out of stock

10

SEAT BACK ASSEMBLY

8BB-24790-00-00

1
Out of stock

11

ASSIST, GRIP

8Y7-2474A-01-00

1
Out of stock

12

ASSIST, GRIP 2

8Y7-2474W-01-00

1
Out of stock

13

BRACKET, ASSIST GRIP 1

8BB-2474H-00-00

1
Out of stock

14

BRACKET, ASSIST GRIP 2

8BB-2474J-00-00

1
Out of stock

15

PROTECTOR, 1

8Y7-2476U-00-00

1
Out of stock

16

PROTECTOR, 2

8Y7-2476V-00-00

1
Out of stock

17

COVER 1

8Y7-24796-01-00

—

$180.49

In stock

18

COVER, 2

8Y7-2475X-01-00

1
Out of stock

19

WASHER, SEAT

8Y7-24746-00-00

1
Out of stock

20

SCREW, BINDING

98907-08016-00

1
Out of stock

21

COLLAR(88T)

90387-074X6-00

—

$3.11

In stock

22

BOLT, FLANGE

95817-06025-00

—

$1.46

In stock

23

RIVET

90269-06001-00

—

$5.42

In stock

24

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock

25

BRACKET, SEAT LEVER 1

8BB-2475H-00-00

1
Out of stock

26

BRACKET, SEAT LEVER 2

8BB-2475J-00-00

1
Out of stock

27

BOLT, FLANGE

95817-08012-00

—

$3.98

In stock
