1994 Yamaha Vmax 500 (VX500U) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1994 Yamaha Vmax 500 (VX500U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

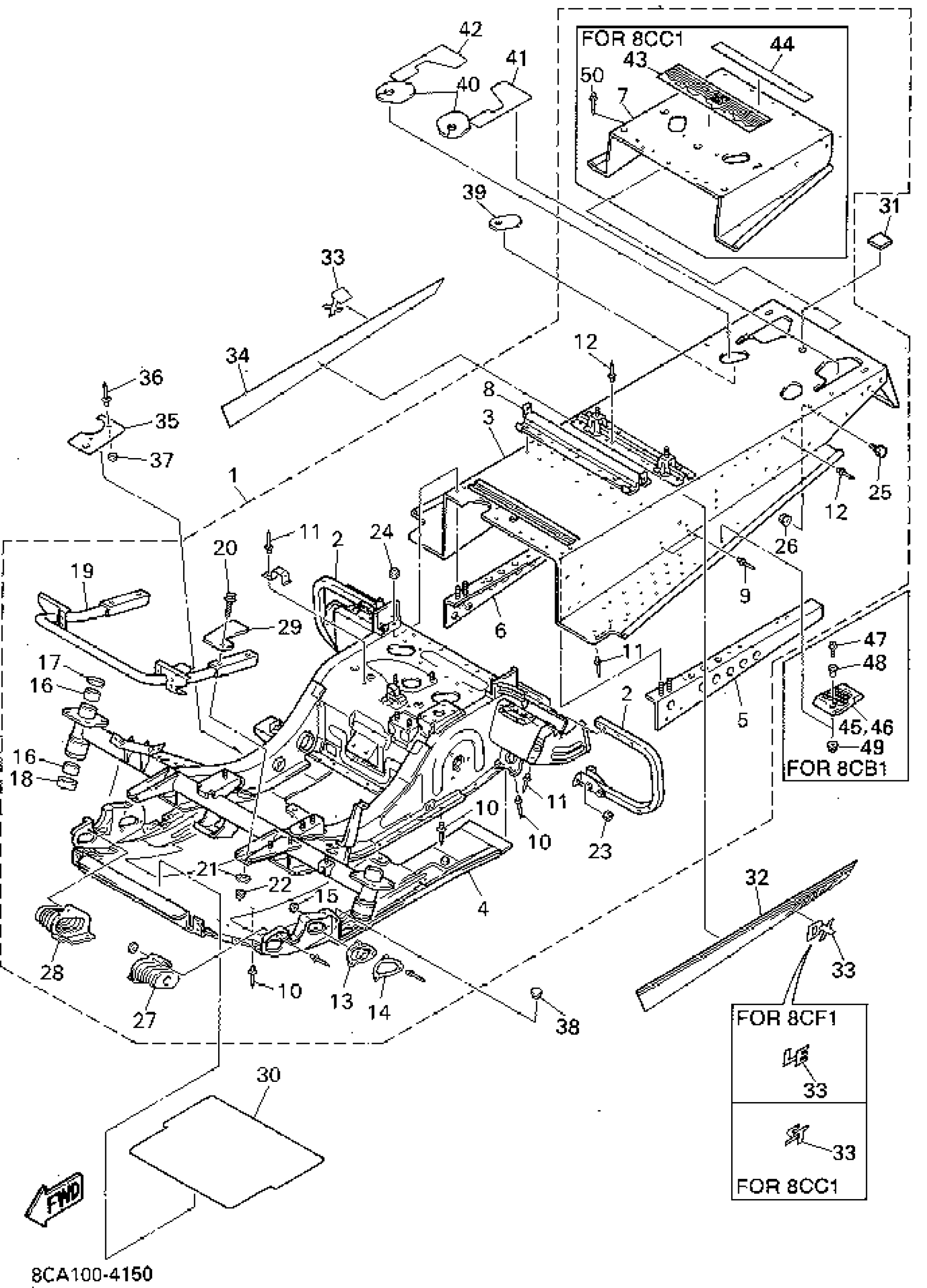

1994 Yamaha Vmax 500 (VX500U) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

8AB-21910-00-00

1
Out of stock

1

FRAME COMP.

8AB-21910-10-00

1
Out of stock

1

FRAME COMP.

8BN-21910-00-00

1
Out of stock

2

. REINFORCEMENT, FOOTREST 1

8AB-21926-00-00

1
Out of stock

3

FRAME PANEL BLACK

89A-21911-20-00

1
Out of stock

3

FRAME PANEL BLACK

89A-21911-20-00

1
Out of stock

4

. PANEL, SUB FRAME 1

8AB-21912-00-00

1
Out of stock

5

. PATCH 4

8AB-21964-00-00

1
Out of stock

6

. PATCH 5

8AB-21965-00-00

1
Out of stock

7

PANEL, SUB FRAME 5

8BX-21916-09-00

1
Out of stock

8

. BRACKET, SEAT FITTING

8AB-21946-00-00

1
Out of stock

9

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

10

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

11

RIVET, BLIND (8J5)

90267-48057-00

1
Out of stock

12

RIVET(89R)

90269-04044-00

—
Out of stock

13

COVER 1

8M6-2198F-00-00

—

$22.69

In stock

14

SPACER

8M6-21998-00-00

—

$3.05

In stock

15

WASHER, PLATE

90201-04027-00

—
Out of stock

16

—

$9.68

In stock

17

OIL SEAL (8M6)

93102-36232-00

—

$9.51

In stock

18

OIL SEAL (8M6)

93103-36117-00

—

$20.31

In stock

19

. BUMPER, FRONT 2

8AB-77512-00-00

1
Out of stock

20

BOLT, FLANGE

95817-08040-00

—

$5.43

In stock

21

WASHER, PLATE (3Y6)

90201-083A6-00

—
Out of stock

22

NUT, NYLON

95717-08300-00

—

$2.57

In stock

23

NUT, NYLON

95707-06300-00

—

$3.20

In stock

24

NUT, NYLON

95717-08300-00

—

$2.57

In stock

25

SCREW, BIND(J39)

98980-06014-00

—

$5.66

In stock

26

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

27

. COVER 1

8AB-2198F-00-00

1
Out of stock

28

. COVER 2

8AB-2198G-00-00

1
Out of stock

29

. COVER 3

8AB-2198J-00-00

1
Out of stock

30

SHIELD, HEAT

8AB-2199H-00-00

1
Out of stock

31

DAMPER

5H0-8235Y-M0-00

—

$6.46

In stock

32

EMBLEM 1

8AB-77351-00-00

1
Out of stock

32

EMBLEM 1

8AB-77351-10-00

1
Out of stock

32

EMBLEM 1

8BB-77351-00-00

1
Out of stock

33

EMBLEM 3

8BB-77143-00-00

1
Out of stock

33

EMBLEM 3

8BP-77143-00-00

1
Out of stock

33

EMBLEM 3

8BX-77143-00-00

1
Out of stock

34

EMBLEM 2

8AB-77352-00-00

1
Out of stock

34

EMBLEM 2

8AB-77352-10-00

1
Out of stock

34

EMBLEM 2

8BB-77352-00-00

1
Out of stock

35

SHIELD, NOISE

8AB-2199F-00-00

1
Out of stock

36

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

37

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

38

PLUG(2GU)

90338-12192-00

—

$6.18

In stock

39

PATCH 5

82M-21965-00-00

1
Out of stock

40

PATCH 5

88R-21965-00-00

1
Out of stock

41

COVER 6

8AB-1246J-00-00

1
Out of stock

42

COVER 7

8AB-1246K-00-00

1
Out of stock

43

EMBLEM 1

8BH-77351-00-00

1
Out of stock

44

LABEL, WARNING 2

88X-77762-10-00

—

$23.32

In stock

44

LABEL, WARNING 2

88X-77762-10-00

—

$23.32

In stock

45

FOOTREST, REAR 1

88T-27431-10-00

—

$23.57

In stock

46

FOOTREST, REAR 2

88T-27441-10-00

—

$23.57

In stock

47

SCREW, BINDING

98907-06025-00

—

$6.18

In stock

48

COLLAR

90387-06158-00

—

$6.17

In stock

49

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

50

RIVET, BLIND

90267-48117-00

1
Out of stock
