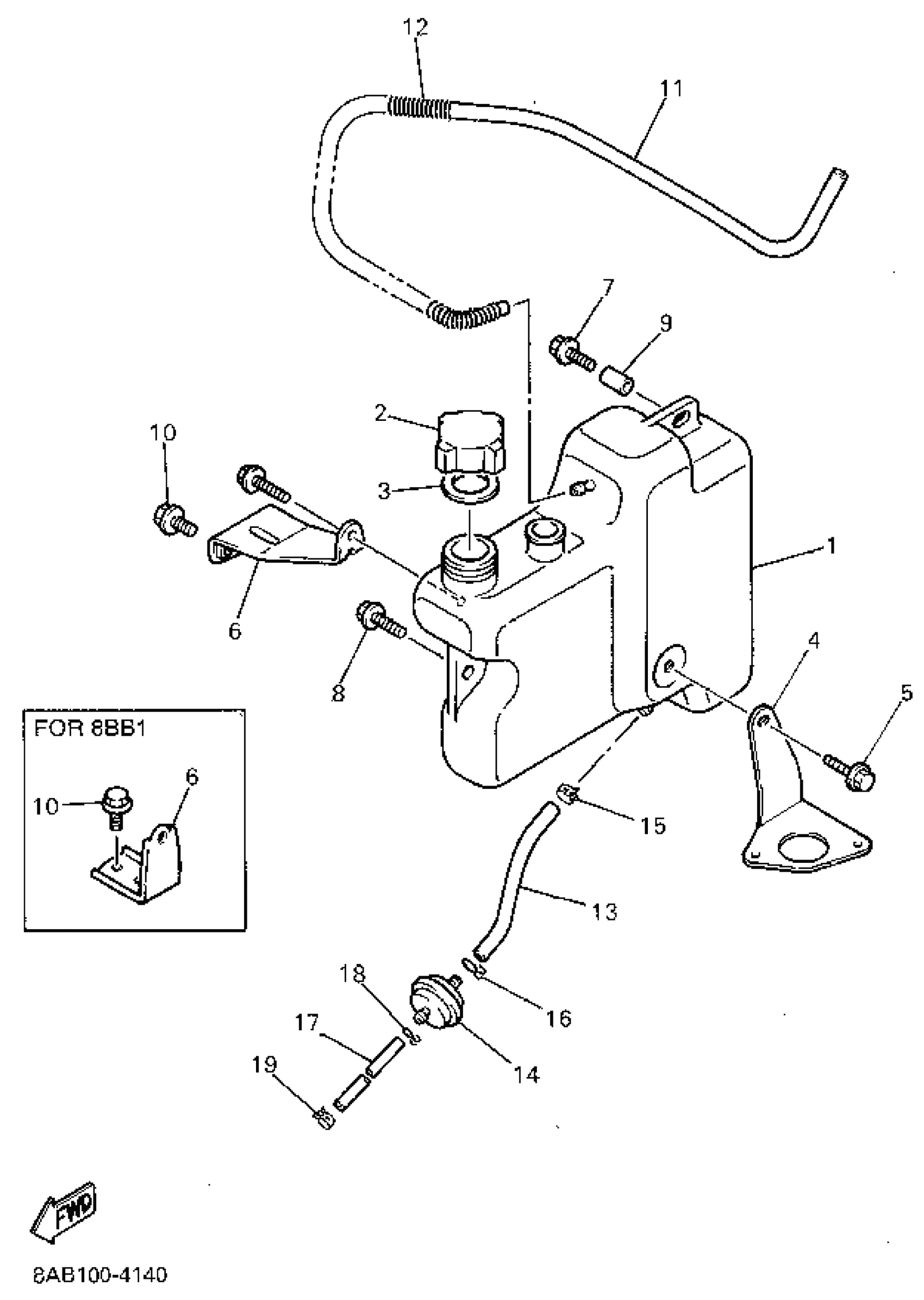

Yamaha VX500U (VMAX 500) 1994 OIL TANK Diagram

TANK, OIL

8AB-21751-01-00

Unavailable

BODY, CAP

8LU-21771-00-00

$31.99

GASKET, TANK (867)

90430-31003-00

$10.49

BRACKET, OIL TANK 1

8AB-2193E-00-00

Unavailable

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

BRKT,OIL TANK 2

8AB-2193F-01-00

Unavailable

BRACKET, OIL TANK 2

8BB-2193F-00-00

Unavailable

BOLT

90109-06757-00

Unavailable

BOLT, FLANGE

95817-06012-00

$1.43

COLLAR (8G8)

90387-06681-00

$9.49

BOLT, FLANGE

95817-08012-00

$5.49

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

SPRING, COMPRESSION (10L)

90501-08668-00

$11.49

SPRING, COMPRESSION

90501-085G3-00

Unavailable

HOSE

91A30-07036-00

Unavailable

HOUSING STRAINER ASSY

8G8-13410-00-00

Unavailable

CLIP (7K7)

90467-11044-00

Unavailable

CLIP (8J7)

90467-11009-00

Unavailable

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

Unavailable

CLIP (8L2)

90467-08017-00

Unavailable

CLIP (8A1)

90467-09026-00

Unavailable
