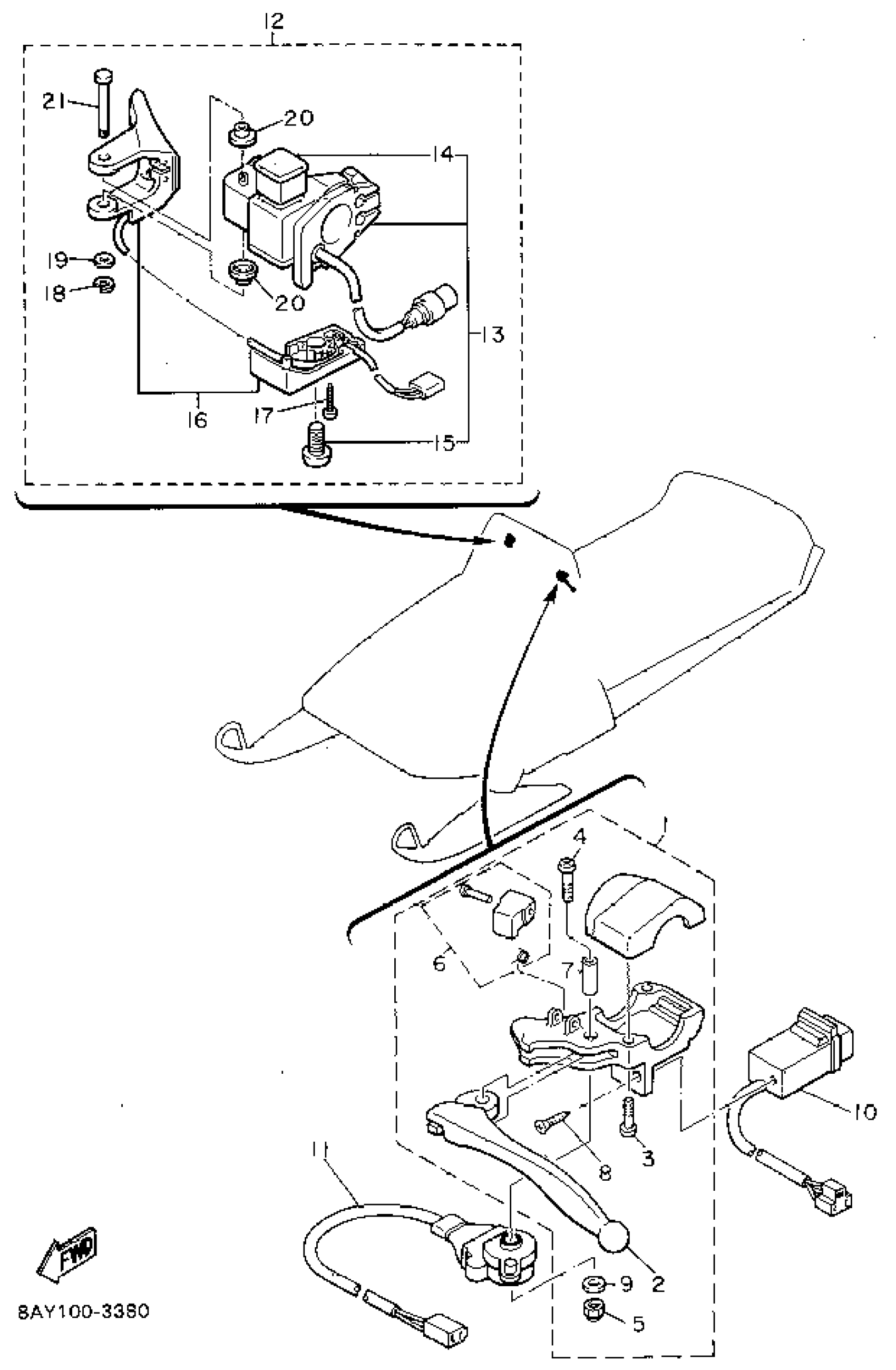

Yamaha VX500U (VMAX 500) 1994 ELECTRICAL 3 Diagram

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

$117.99

LEVER 1

8H8-83912-00-00

$20.99

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

SCREW

8R4-82113-00-00

Unavailable

NUT, NYLON

95707-05300-00

$4.24

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

Unavailable

COLLAR, LEVER

802-83913-00-00

Unavailable

. SCREW, TAPPING

97780-30312-00

Unavailable

. WASHER, PLAIN

92990-05200-00

Unavailable

BEAM SWITCH ASSY

8H8-83950-01-00

$79.99

STOP SWITCH ASSY

88R-82530-00-00

$31.99

LEVER HOLDER ASSY (RIGHT)

8AY-82720-02-00

Unavailable

. SWITCH, HANDLE 3 (RIGHT)

8AV-83963-00-00

Unavailable

ENGINE STOP SWITCH ASSY

8AD-82575-09-00

Unavailable

SCREW, ADJUSTING

84M-83928-00-00

$2.29

THUMB WARMER ASY

8AY-82970-02-00

Unavailable

SCREW, TAPPING(3NX)

97707-30514-00

Unavailable

CIRCLIP (EU0)

99080-04600-00

Unavailable

WASHER, SPECIAL

85G-83663-00-00

Unavailable

CAP 1

85G-83956-00-00

Unavailable

SHAFT

8R6-8399F-00-00

Unavailable
