- VX500U (VMAX 500) 1994
ELECTRICAL 1

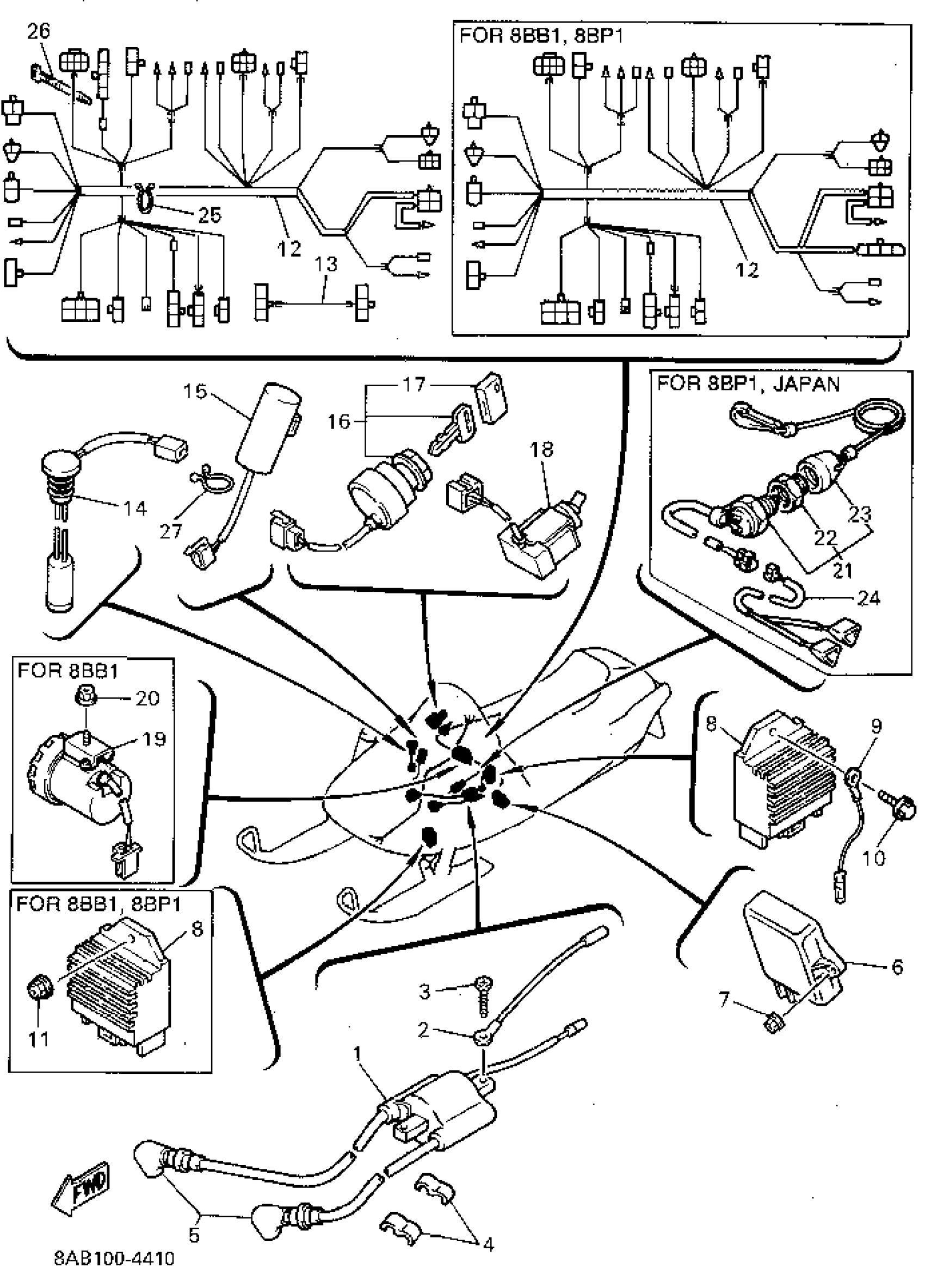

Yamaha VX500U (VMAX 500) 1994 ELECTRICAL 1 Diagram
#
Description
Price
1
IGNITION COIL ASSY
8AB-82310-07-00
$85.99
2
WIRE, SUB-LEAD
87D-82318-00-00
Unavailable
3
SCREW, TAPPING
97707-60525-00
$8.49
4
CLAMP, CORD
861-82361-00-00
Unavailable
5
PLUG CAP ASSY
8DG-82370-00-00
$49.99
6
C.D.I. UNIT ASSEMBLY
8AB-85540-00-00
Unavailable
7
NUT, FLANGE(7NB)
95780-06500-00
$2.60
8
RECTIFIER & REGULATOR ASSY
89A-81960-00-00
$95.99
9
WIRE, SUB-LEAD
87D-82318-00-00
Unavailable
10
BOLT, FLANGE
95817-06012-00
$1.43
11
NUT, U FLANGE
95604-06200-00
$8.49
12
WIRE HARNESS ASSEMBLY
8AB-82590-00-00
Unavailable
12
WIRE HARNESS ASSEMBLY
8BB-82590-00-00
Unavailable
13
WIRE, LEAD
8AB-8471G-00-00
Unavailable
14
OIL LEVEL GAUGE ASSY
3E1-85720-15-00
Unavailable
15
CONDENSER, SMOOTHING
1NL-81965-01-00
Unavailable
16
MAIN SWITCH ASSY
8K1-82510-21-00
Unavailable
17
CAP, KEY
526-82579-00-00
Unavailable
18
SWITCH
8AB-82917-00-00
Unavailable
19
BUZZER
88T-83383-00-00
Unavailable
20
NUT, U FLANGE
95604-06200-00
$8.49
21
STOP SWITCH ASSY
8H8-82550-01-00
Unavailable
22
NUT
8H8-82557-00-00
Unavailable
23
CAP, SWITCH
8H8-82552-09-00
Unavailable
24
WIRE, SUB-LEAD
89L-82318-00-00
Unavailable
25
CLAMP (8M1)
90464-30040-00
Unavailable
26
BAND
341-26397-01-00
Unavailable
27
CLAMP (3Y2)
90464-16039-00
Unavailable
