Description

Price

1

HEAD, CYLINDER 1

8AB-11111-00-00

Unavailable

2

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

Unavailable

3

GASKET, CYLINDER HEAD 1

8AB-11181-00-00

Unavailable

4

NUT, FLANGE

95704-08500-00

$8.49

5

THERMOSTAT

82M-12411-00-00

$75.99

6

SEAL, THERMOSTAT

8A7-12412-01-00

$16.49

7

COVER, THERMOSTAT

82M-12413-00-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

BOLT, FLANGE

95817-06012-00

$1.43

12

GASKET (4V2)

90430-06166-00

$3.76

13

BOLT, STUD

90116-08391-00

Unavailable

14

CYLINDER 1

8AB-11311-00-00

Unavailable

15

BOLT, STUD(8AB)

90116-10574-00

$13.99

16

PIN, DOWEL

99530-14016-00

Unavailable

17

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

18

GASKET, CYLINDER

8CR-11351-00-00

Unavailable

19

EMBLEM

8AB-1111K-00-00

Unavailable

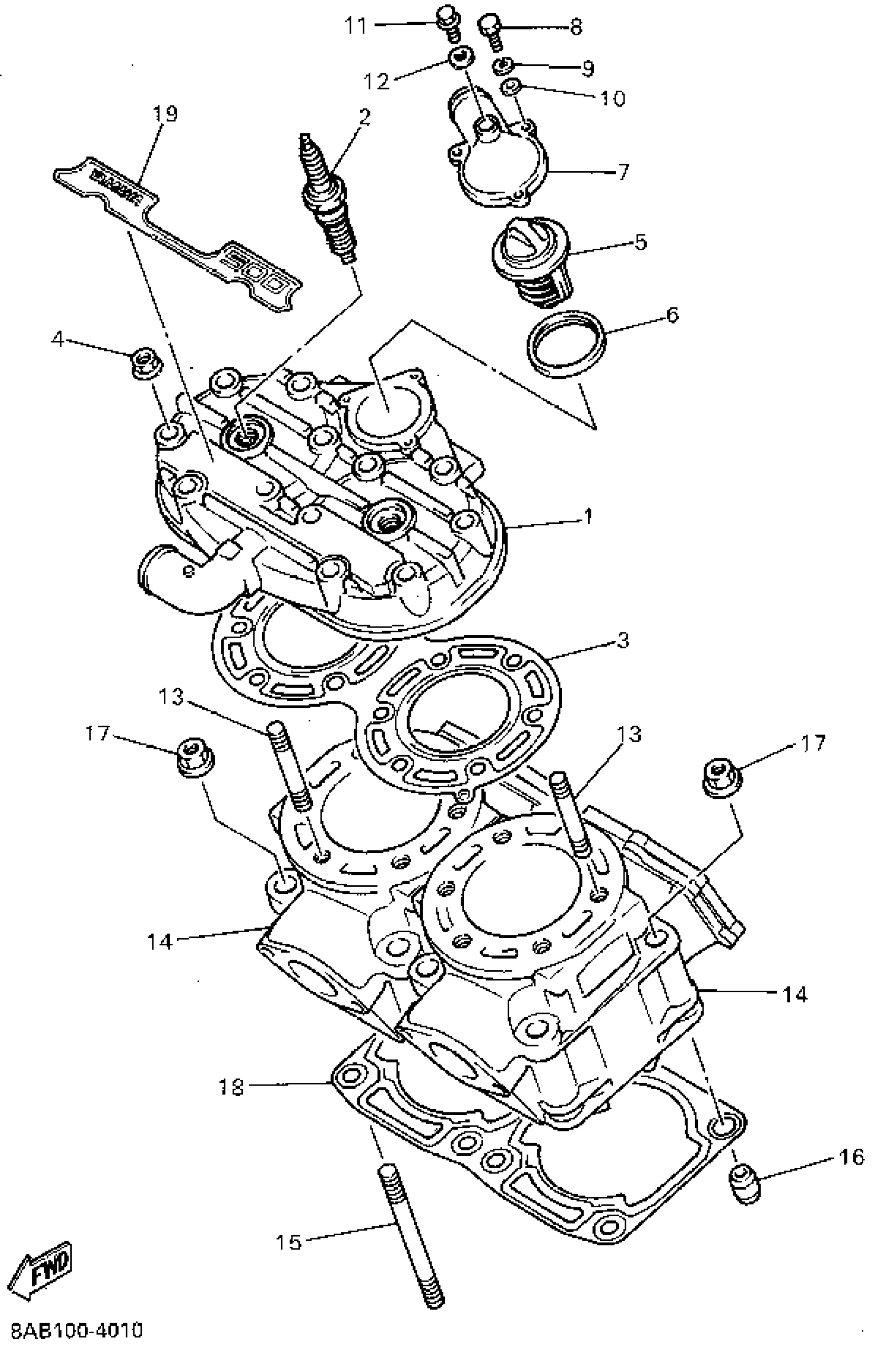

Yamaha VX500U (VMAX 500) 1994 CYLINDER HEAD Diagram

HEAD, CYLINDER 1

BR9ES NGK SOLID TOP PLUG 4PK

GASKET, CYLINDER HEAD 1

NUT, FLANGE

THERMOSTAT

SEAL, THERMOSTAT

COVER, THERMOSTAT

BOLT, HEXAGON

WASHER, SPRING

WASHER, PLAIN (646)

BOLT, FLANGE

GASKET (4V2)

BOLT, STUD

CYLINDER 1

BOLT, STUD(8AB)

PIN, DOWEL

NUT, FLANGE(3BM)

GASKET, CYLINDER

EMBLEM
