Description

Price

1

CLUTCH ASY

8BW-17601-19-00

Unavailable

2

SHEAVE,PRI FIXED

8AX-17611-09-00

Unavailable

3

SHEAVE, PRIMARY SLIDING

8AX-17621-01-00

Unavailable

4

CAP

88R-17631-01-00

Unavailable

5

SPIDER COMPLETE

8BW-17640-11-00

Unavailable

6

STOPPER

8V0-17639-00-00

$14.99

7

BUSH(83R)

90389-28032-00

$61.99

8

BUSH(88R)

90389-41031-00

$78.99

9

WASHER, PLATE(88R)

90202-08204-00

$9.49

10

COLLAR

90387-0514T-00

$16.99

11

BOLT, SET

90113-05041-00

$8.49

12

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

13

NUT, S/L FLANGE

95607-05200-00

$9.49

14

WASHER, PLATE(88R)

90202-08204-00

$9.49

15

COLLAR

90387-0514T-00

$16.99

16

BOLT, SET

90113-05041-00

$8.49

17

SLIDER

8BW-17653-00-00

Unavailable

18

BOLT(89J)

90109-066F4-00

Unavailable

19

BOLT, HEXAGON

97017-06030-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

. BOLT (L=1653MM)

88R-17647-00-00

Unavailable

22

WASHER(JN5)

92907-16100-00

Unavailable

23

SPACER 1

8BW-17654-20-00

Unavailable

24

CLUTCH TUNE-UP KIT

8AB-00000-50-00

Unavailable

25

BUSH(83R)

90389-28032-00

$61.99

26

BUSH(88R)

90389-41031-00

$78.99

27

ROLLER, COMP

8BH-17624-10-00

Unavailable

28

WASHER, PLATE(88R)

90202-08204-00

$9.49

29

COLLAR

90387-0514T-00

$16.99

30

BOLT, SET

90113-05041-00

$8.49

31

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

32

NUT, S/L FLANGE

95607-05200-00

$9.49

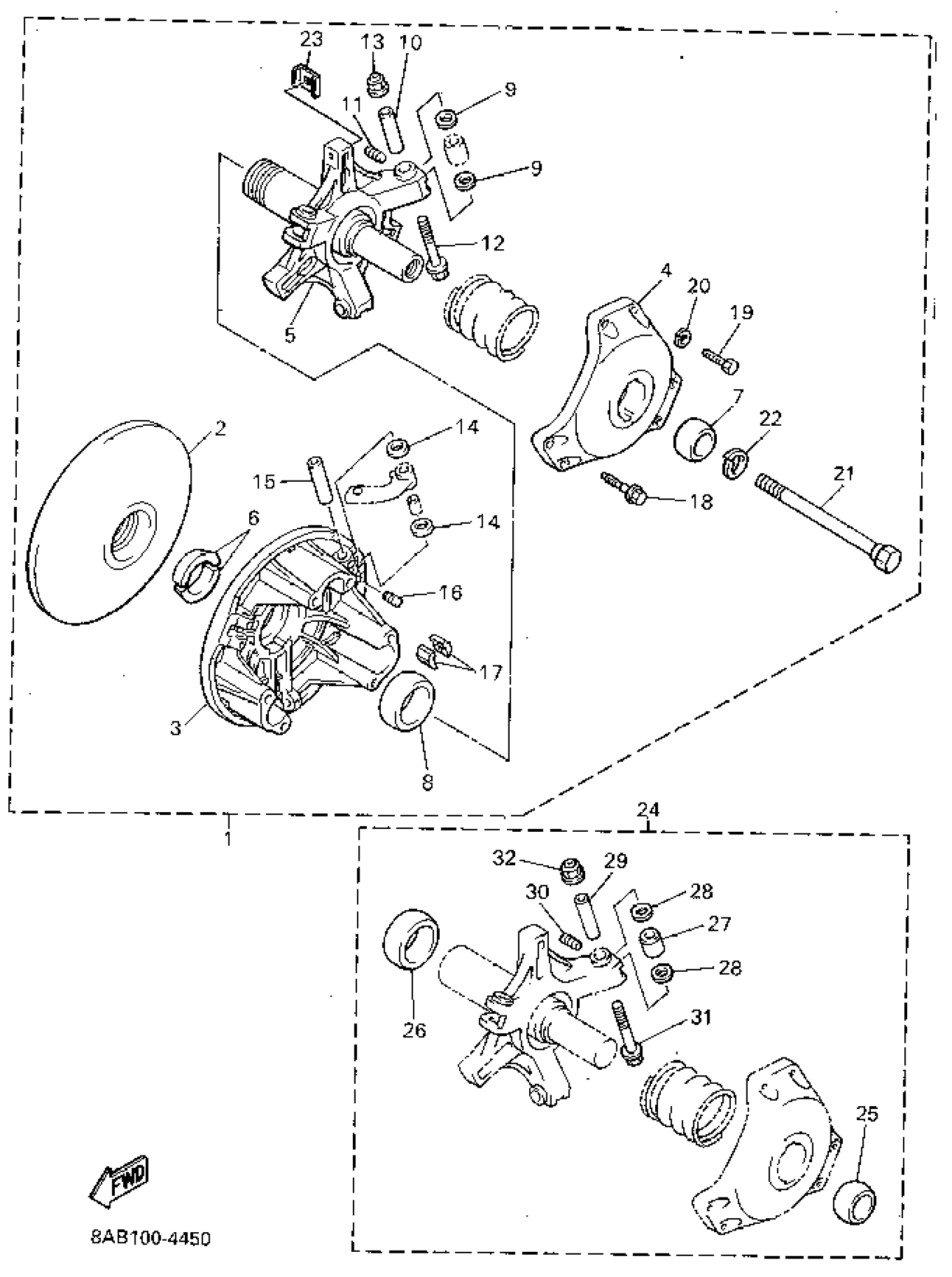

Yamaha VX500U (VMAX 500) 1994 CLUTCH KIT (ALTERNATE) Diagram

CLUTCH ASY

SHEAVE,PRI FIXED

SHEAVE, PRIMARY SLIDING

CAP

SPIDER COMPLETE

STOPPER

BUSH(83R)

BUSH(88R)

WASHER, PLATE(88R)

COLLAR

BOLT, SET

BOLT, WASHER BASED(88R)

NUT, S/L FLANGE

WASHER, PLATE(88R)

COLLAR

BOLT, SET

SLIDER

BOLT(89J)

BOLT, HEXAGON

WASHER, SPRING

. BOLT (L=1653MM)

WASHER(JN5)

SPACER 1

CLUTCH TUNE-UP KIT

BUSH(83R)

BUSH(88R)

ROLLER, COMP

WASHER, PLATE(88R)

COLLAR

BOLT, SET

BOLT, WASHER BASED(88R)

NUT, S/L FLANGE
