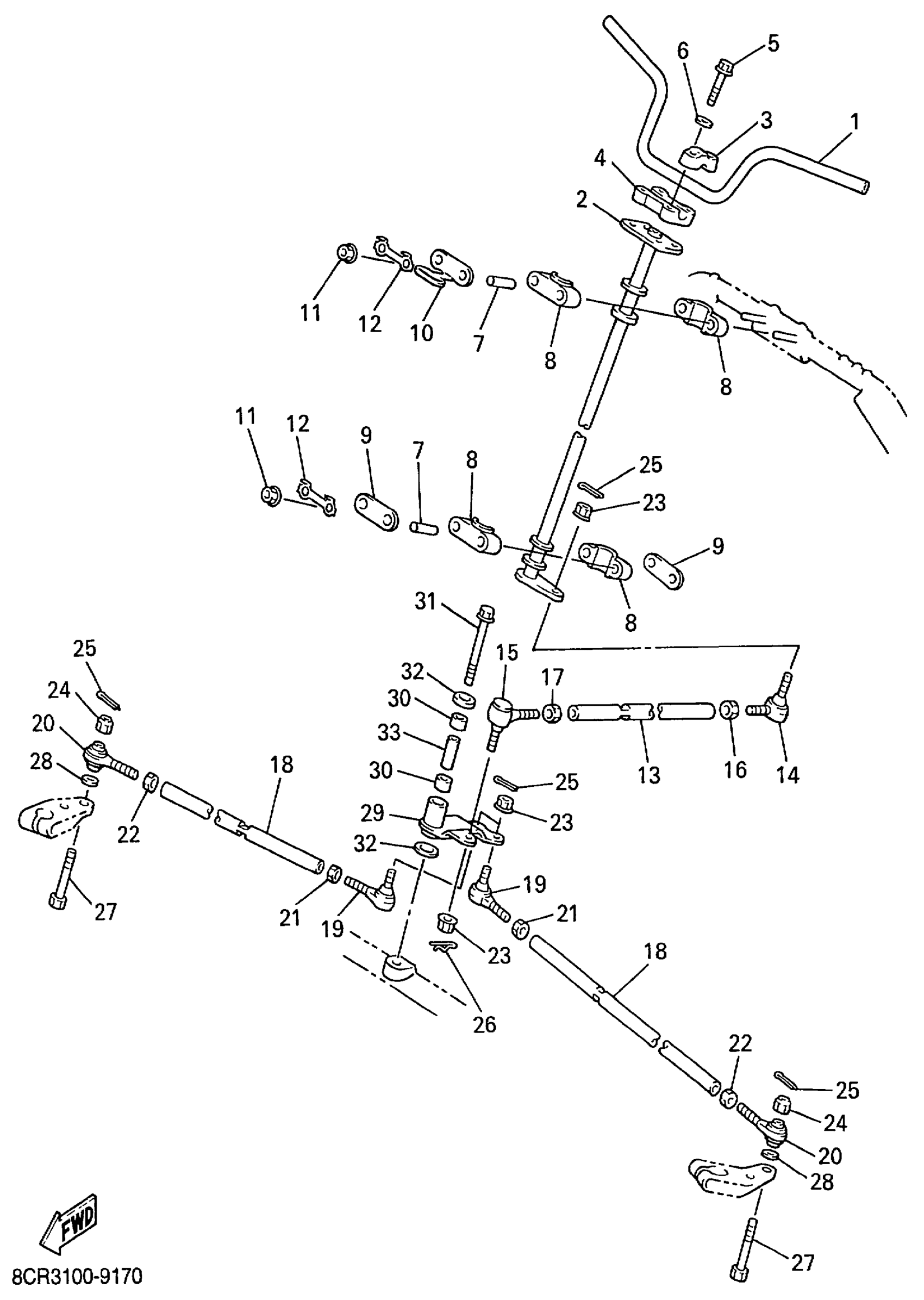

Yamaha VX500SXBC (VMAX 500 SX) 8CT1 1999 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

8CR-23811-00-00

$45.75

2

COLUMN, STEERING 2

8CR-23813-00-00

Unavailable

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

4

HANDLE, HOLDER

164-23441-01-98

$25.75

5

BOLT, HEXAGON

97017-08055-00

$6.88

6

WASHER(6TA)

92907-08600-00

$2.52

7

COLLAR(85G)

90387-106T4-00

$11.29

8

PLANE BEARING, STEERING

8DF-23812-00-00

$6.91

9

HOLDER, BEARING

8CR-23872-00-00

$2.57

10

HOLDER, BEARING

8CJ-23872-00-00

$11.85

11

NUT, NYLON

95717-08300-00

$2.57

12

WASHER, LOCK 1

1UY-23894-01-00

$6.86

13

ROD, STEERING RELAY

8CR-23821-00-00

$21.34

14

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

15

JOINT, UNIVERSAL 3

8CR-23847-00-00

$48.17

16

NUT (3WP1)

95317-10700-00

$6.17

17

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

18

ROD, TIE

8CV-23831-00-00

Unavailable

19

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

20

JOINT, UNIVERSAL 3

87S-23847-01-00

$44.71

21

NUT (3WP1)

95317-10700-00

$6.17

22

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

23

NUT, FLANGE(8AB)

95707-10500-00

$1.66

24

NUT, NYLON

95707-10300-00

$6.68

25

PIN, COTTER

91490-25020-00

$2.94

26

CLIP 136253750000

90468-12006-00

$5.10

27

BOLT, PIN HOLE (8M6)

90102-10044-00

$12.18

28

WASHER PLATE (3L6)

90201-08759-00

$2.52

29

ARM, IDLER

8DF-23826-10-00

$83.22

30

BEARING, CYLINDRICAL(3VR)

93317-41767-00

$38.78

31

BOLT, WASHER BASED (26H)

90105-12252-00

$9.77

32

WASHER, PLATE

90201-121U3-00

$5.45

33

COLLAR

8DF-2412G-00-00

$8.97
