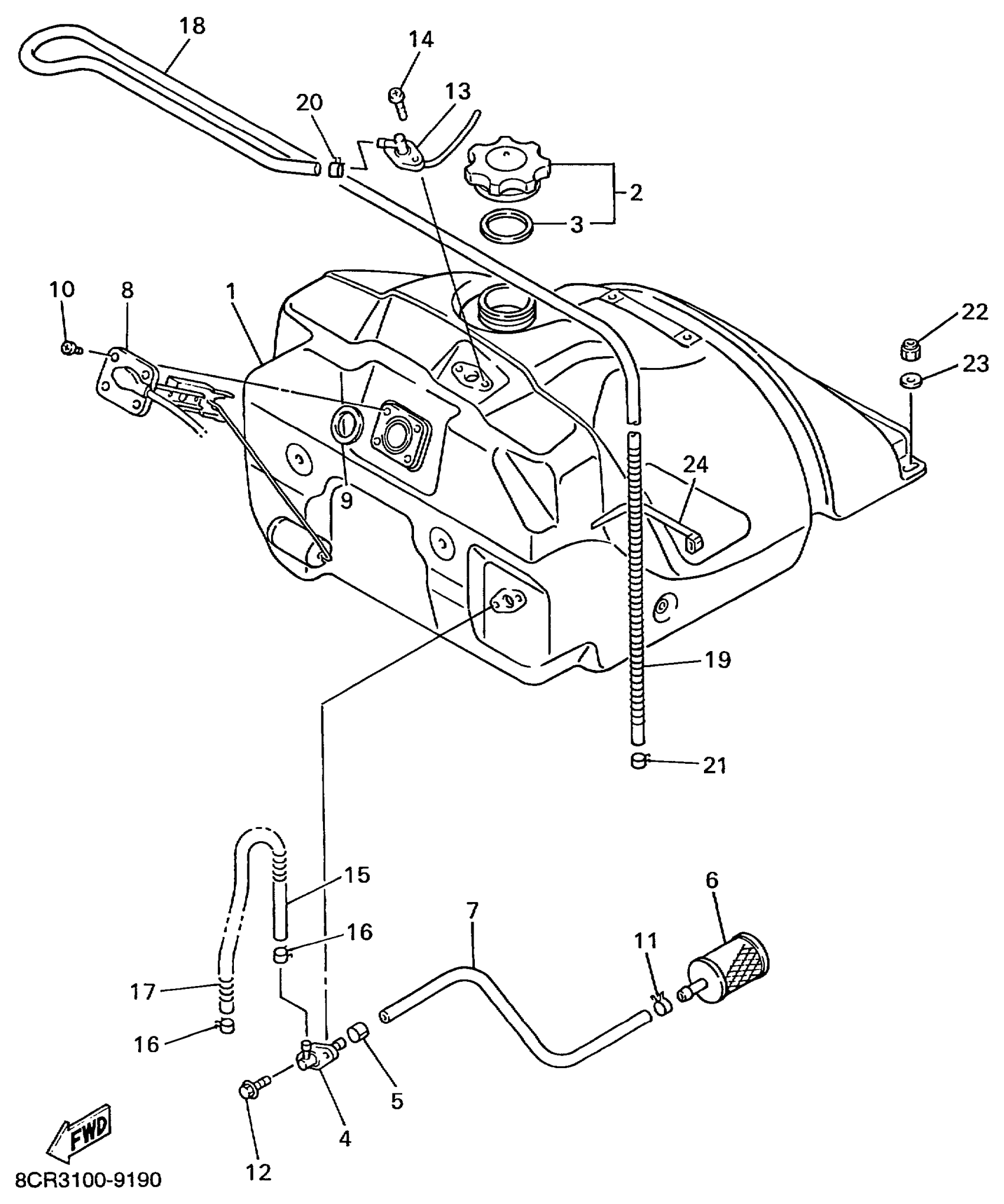

Yamaha VX500SXBC (VMAX 500 SX) 8CT1 1999 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8CW-24111-10-00

$290.82

2

GAS CAP ASSY, W/O GAUGE

8CW-24610-01-00

Unavailable

3

GASKET, CAP

8CW-24612-00-00

$14.80

4

SUCTION PIPE COMP. 1

8CR-24301-01-00

$55.60

5

CLIP

90468-04092-00

$2.54

6

FILTER ASSY

8H5-24560-00-00

$11.47

7

PIPE, SUCTION 1

8CR-24335-01-00

Unavailable

8

SENDER UNIT ASSY, FUEL METER

8CW-85752-00-00

Unavailable

9

O-RING (102)

93210-41041-00

$5.86

10

SCREW, BINDING

98907-05008-00

$1.58

11

CLIP (7K7)

90467-11044-00

$5.10

12

BOLT, FLANGE

95817-06016-00

$1.49

13

BREATHER COMP.

8CR-2418A-00-00

Unavailable

14

SCREW

90149-06021-00

$6.25

15

PIPE, FUEL 1

8CR-24311-10-00

Unavailable

16

CLIP (7K7)

90467-11044-00

$5.10

17

SPRING, COMPRESSION (10L)

90501-08668-00

$10.02

18

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$23.43

19

SPRING, COMPRESSION(7MX)

90501-084J0-00

$5.86

20

CLIP (2A6)

90468-02078-00

$5.80

21

CLIP (8A1)

90467-09026-00

$2.72

22

NUT, NYLON

95717-08300-00

$2.57

23

WASHER, PLATE (3L7)

90201-08784-00

$2.54

24

CLAMP(4FM)

90464-15195-00

$2.77
