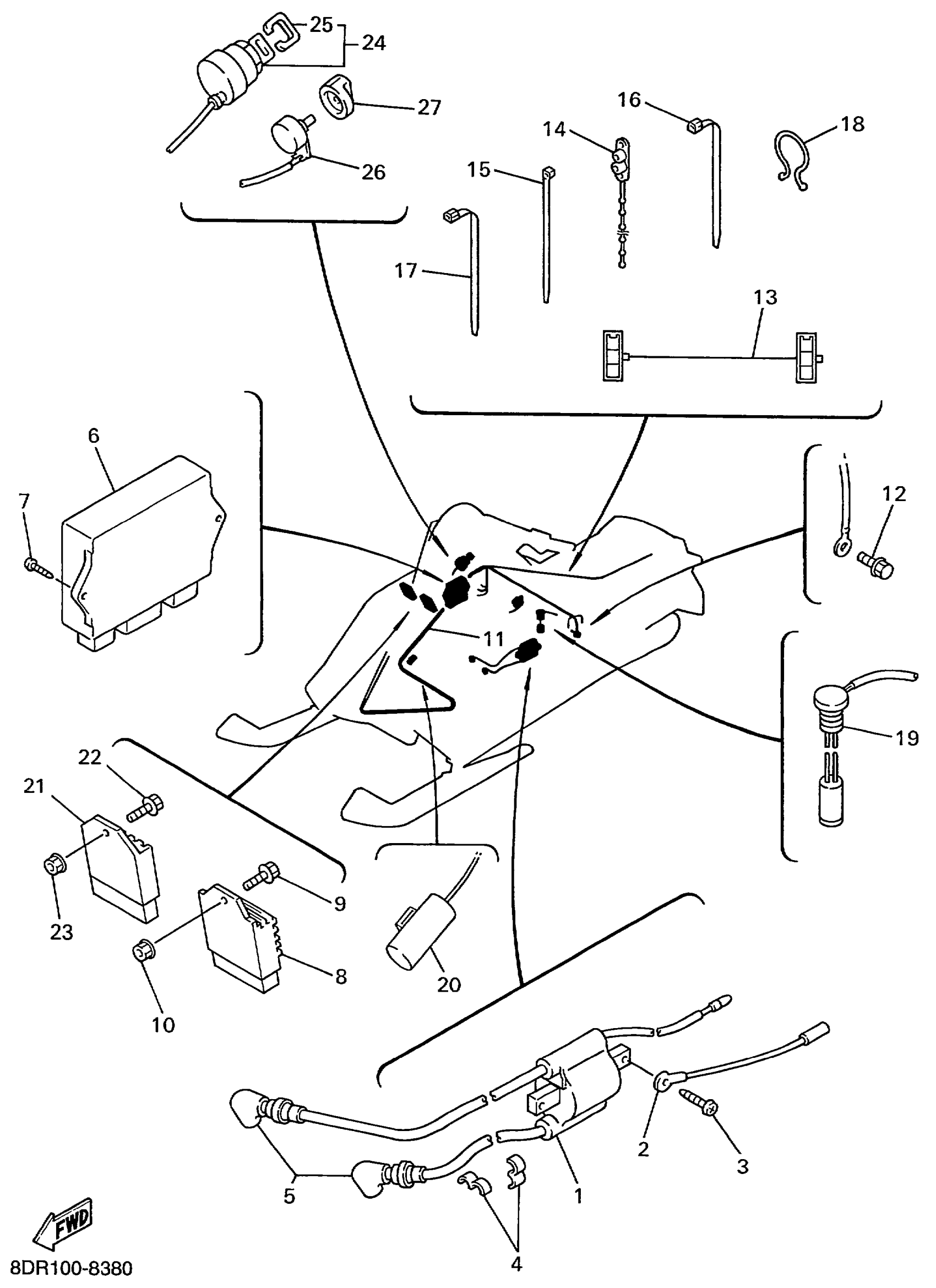

Yamaha VX500SXBC (VMAX 500 SX) 8CT1 1999 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

8AB-82310-07-00

$85.99

2

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

3

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

4

CLAMP, CORD

861-82361-00-00

Unavailable

5

PLUG CAP ASSY

8DG-82370-00-00

$49.99

6

C.D.I. UNIT ASSY

8CJ-85540-01-00

Unavailable

7

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

8

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

$95.99

9

BOLT, FLANGE

95817-06016-00

$2.75

10

NUT, FLANGE(4MV)

95707-06500-00

$1.23

11

WIRE HARNESS ASSY

8CJ-82590-10-00

Unavailable

12

BOLT, FLANGE

95817-06016-00

$2.75

13

WIRE, LEAD

8CR-8471G-00-00

Unavailable

14

CLAMP

90464-20031-00

Unavailable

15

CLAMP(4FM)

90464-15195-00

$4.41

16

CLAMP(4FM)

90464-15195-00

$4.41

17

CLAMP

90464-13077-00

Unavailable

18

CLAMP

90464-25267-00

Unavailable

19

OIL LEVEL GAUGE ASSY

8CR-85720-02-00

Unavailable

20

CONDENSER, SMOOTHING

1NL-81965-01-00

Unavailable

21

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

22

BOLT, FLANGE

95817-06016-00

$2.75

23

NUT, FLANGE(4MV)

95707-06500-00

$1.23

24

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

25

CAP, KEY

526-82579-00-00

Unavailable

26

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

27

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable
