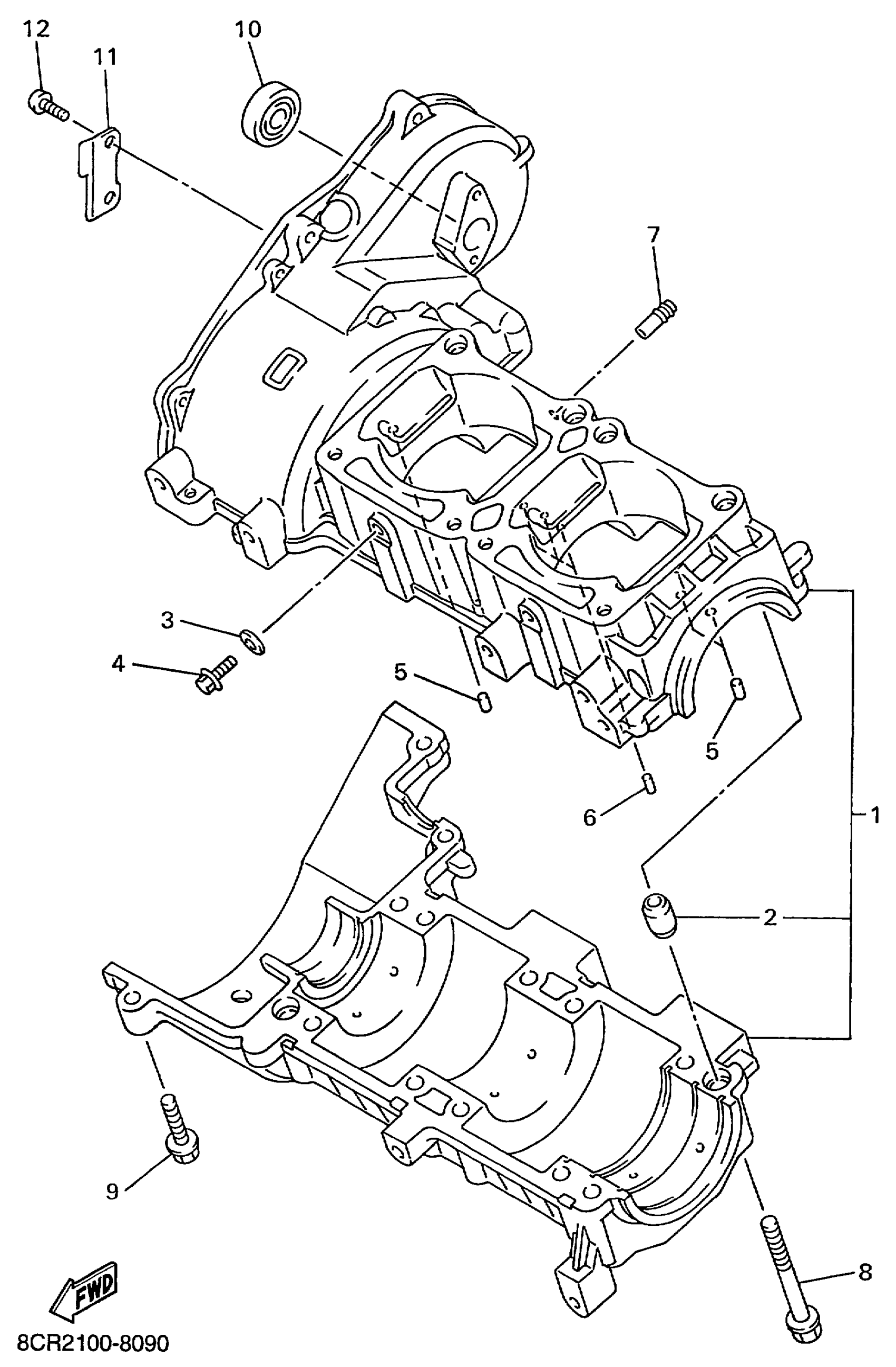

Yamaha VX500SXBC (VMAX 500 SX) 8CT1 1999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8CR-15100-01-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

WASHER, PLATE 3411117500

90201-08087-00

$3.71

4

BOLT, SMALL FLANGE

95027-08016-00

$8.49

5

PIN, DOWEL (8H1)

93604-07141-00

$2.17

6

PIN (2H7)

93603-10049-00

Unavailable

7

JOINT, BREATHER

J38-11116-00-00

$3.80

8

BOLT, FLANGE(JF2)

95817-08080-00

$4.24

9

BOLT, FLANGE

95817-08035-00

$9.49

10

BEARING(82M)

93306-20117-00

$34.99

11

CLAMP

90461-12145-00

Unavailable

12

SCREW, PAN

98517-06012-00

$3.78
