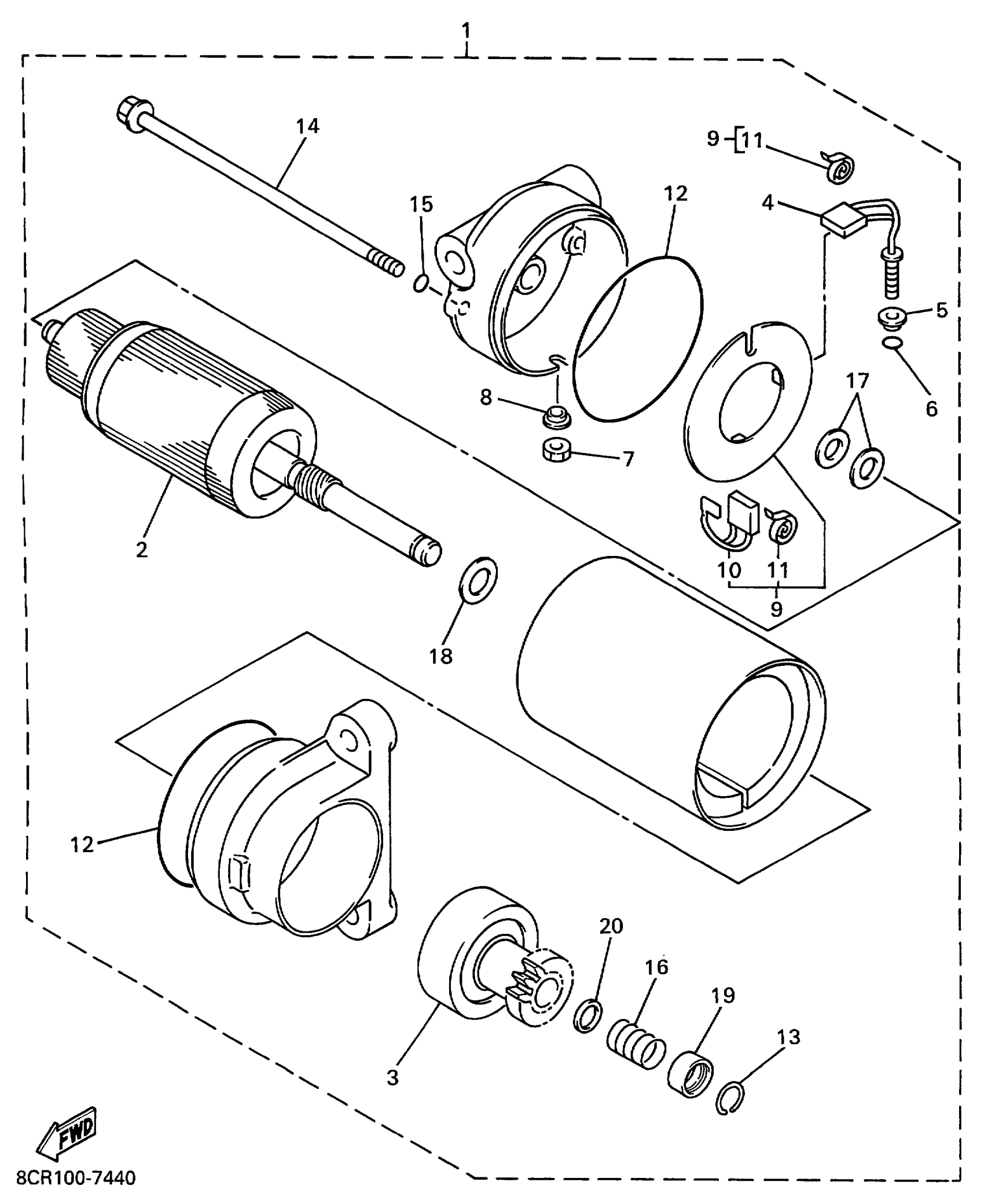

Yamaha VX500SXBC (VMAX 500 SX) 8CT1 1999 ALTERNATE ELECTRICAL 2 Diagram

#

Description
Price

1

STARTING MOTOR ASSY

8CW-81800-01-00

Unavailable

2

. ARMATURE ASSY

8CW-81850-00-00

Unavailable

3

. CLUTCH, OVER RUN

8CW-81832-00-00

Unavailable

4

. BRUSH 1

7GA-81811-50-00

Unavailable

5

. GROMMET

73A-81829-50-00

$9.62

6

. O-RING

73A-81847-00-00

$8.49

7

NUT

4H7-81872-00-00

$4.86

8

. GROMMET

73A-81829-00-00

$5.49

9

BRUSH HOLDER ASSY

4H7-81840-01-00

$76.60

10

.. BRUSH 2

8CW-81812-00-00

Unavailable

11

SPRING, BRUSH

8L6-81813-50-00

$3.77

12

O-RING

4H7-81844-00-00

$21.05

13

RING

8L6-81834-50-00

$3.37

14

BOLT

3GD-81826-00-00

$14.68

15

O-RING

8L6-81847-50-00

$3.05

16

. SPRING, LEVER

8CW-81836-00-00

Unavailable

17

WASHER 1

4H7-81843-50-00

$3.74

18

WASHER

8L6-81835-50-00

$3.05

19

. RING, STOP

8CW-81833-00-00

Unavailable

20

WASHER, PLATE

8BB-8185A-00-00

$6.58
