- VX500SXBC (VMAX 500 SX) 8CT1 1999
ALTERNATE ELECTRICAL 1

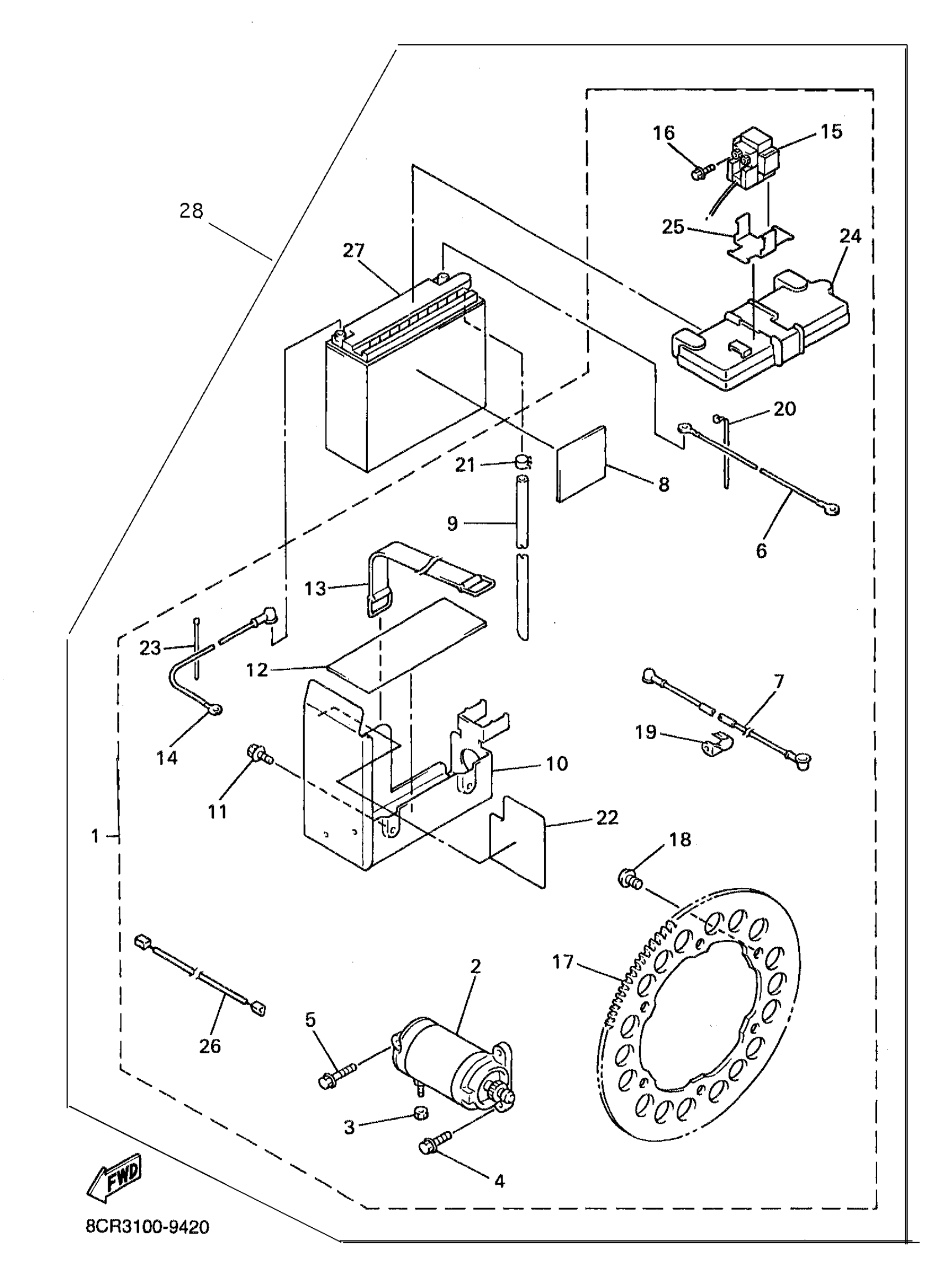

Yamaha VX500SXBC (VMAX 500 SX) 8CT1 1999 ALTERNATE ELECTRICAL 1 Diagram
#
1
ELECTRIC STARTER KIT
8CR-W8180-10-00
Unavailable
2
STARTING MOTOR ASSY
8CW-81800-01-00
Unavailable
3
NUT(6TA)
95317-06600-00
$3.55
4
BOLT, SMALL FLANGE
95027-08030-00
$3.76
5
BOLT, FLANGE(4ES)
95027-08080-00
Unavailable
6
WIRE, MINUS LEAD
8CY-82116-00-00
Unavailable
7
. WIRE, LEAD
8DY-82117-00-00
Unavailable
8
DAMPER
8CW-82176-00-00
Unavailable
9
PIPE (L320)
8CW-8235W-01-00
Unavailable
10
. BRACKET, BATTERY
8CW-2199G-00-00
Unavailable
11
BOLT (796)
90109-06513-00
$3.55
12
SEAT, BATTERY
84N-82122-00-00
$6.99
13
BAND, BATTERY
1E6-82131-00-00
$27.99
14
WIRE, PLUS LEAD
8DY-82115-00-00
Unavailable
15
STARTER RELAY ASSY (RC19-016)
3EL-81940-02-00
$28.99
16
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
17
GEAR 1
8DM-1760A-18-00
Unavailable
18
BOLT,CAP
8DV-17617-10-00
Unavailable
19
. CLAMP
90465-10381-00
Unavailable
20
CLAMP(4FM)
90464-15195-00
Unavailable
21
CLIP(41W)
90467-08092-00
Unavailable
22
. SHIELD, HEAT
8CW-2199H-00-00
Unavailable
23
CLAMP(4FM)
90464-15195-00
Unavailable
24
COVER, BATTERY
8DX-82129-01-00
Unavailable
25
. HOLDER, RELAY
8CY-81952-00-00
Unavailable
26
. WIRE, SUB LEAD
8DY-82509-00-00
Unavailable
27
YB16ALA2 YUASA BATTERY
YB1-6ALA2-00-00
Unavailable
28
STARTING MOTOR KIT
8CR-W8180-15-KT
Unavailable
