2001 Yamaha V-MAX 500 (VX500F) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2001 Yamaha V-MAX 500 (VX500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

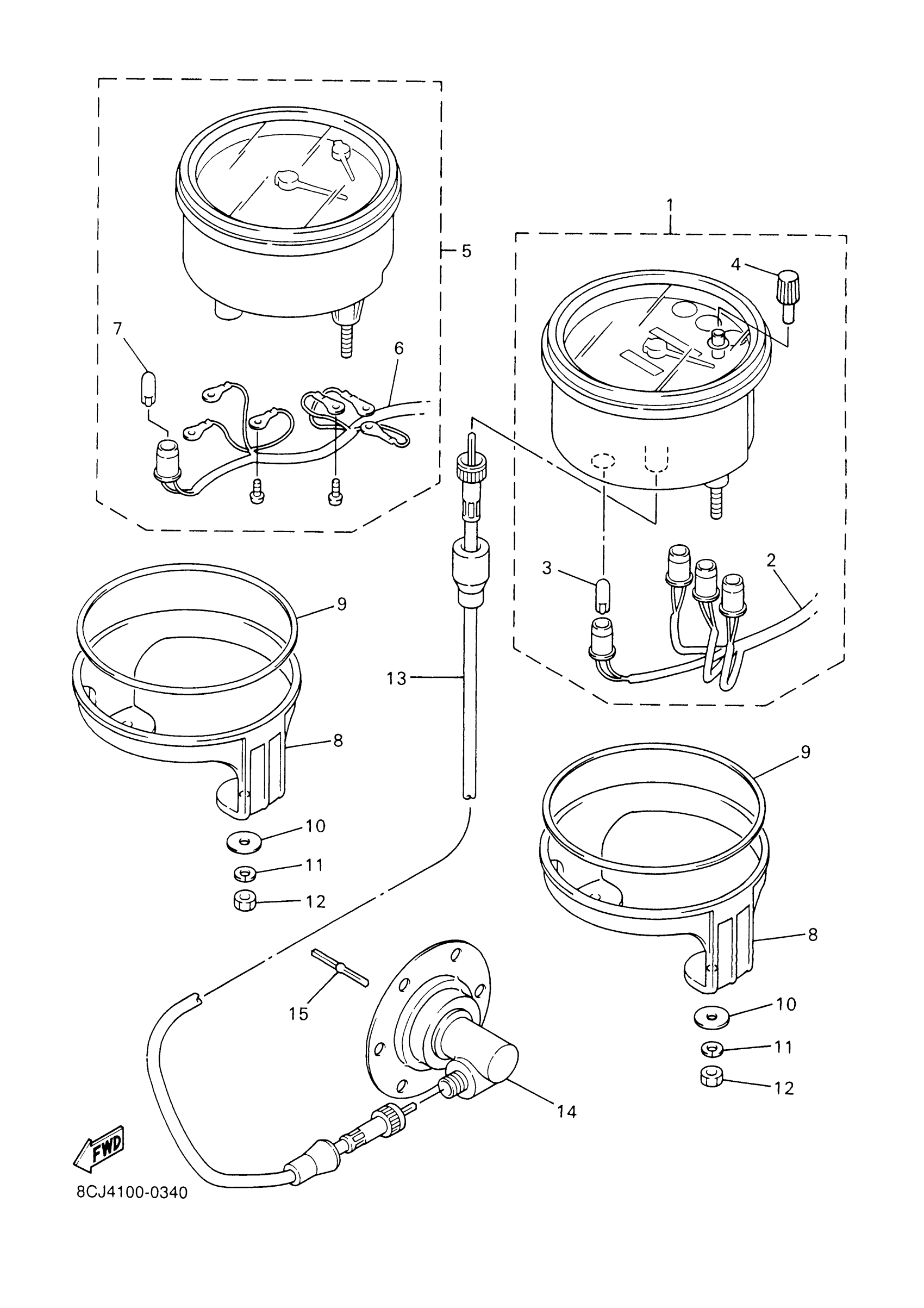

2001 Yamaha V-MAX 500 (VX500F) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY (MILE/H)

8DF-83510-40-00

1
Out of stock

2

. SOCKET CORD ASSY

8DF-83509-40-00

1
Out of stock

3

BULB (12V-1.7W)

3GM-83517-00-00

1
Out of stock

4

. KNOB, TRIP METER

8DF-83578-00-00

1
Out of stock

5

TACHOMETER ASSY

8CJ-83540-41-00

1
Out of stock

6

SOCKET CORD ASSY

8CJ-83509-00-00

—

$58.26

In stock

7

BULB (12V-1.7W)

3GM-83517-00-00

1
Out of stock

8

BRACKET, METER

8DF-83519-40-00

1
Out of stock

9

DAMPER

8DF-83523-40-00

1
Out of stock

10

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

11

WASHER, SPRING

92907-06100-00

1
Out of stock

12

NUT(6TA)

95317-06600-00

1

$2.69

In stock

13

SPEEDOMETER CABLE ASSY

8CR-83550-10-00

1

$72.28

In stock

14

METER GEAR HOUSING COMP.

8CR-47700-00-00

1

$142.55

In stock

15

JOINT

8K4-47715-00-00

1

$4.60

In stock
