2001 Yamaha V-MAX 500 (VX500F) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2001 Yamaha V-MAX 500 (VX500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

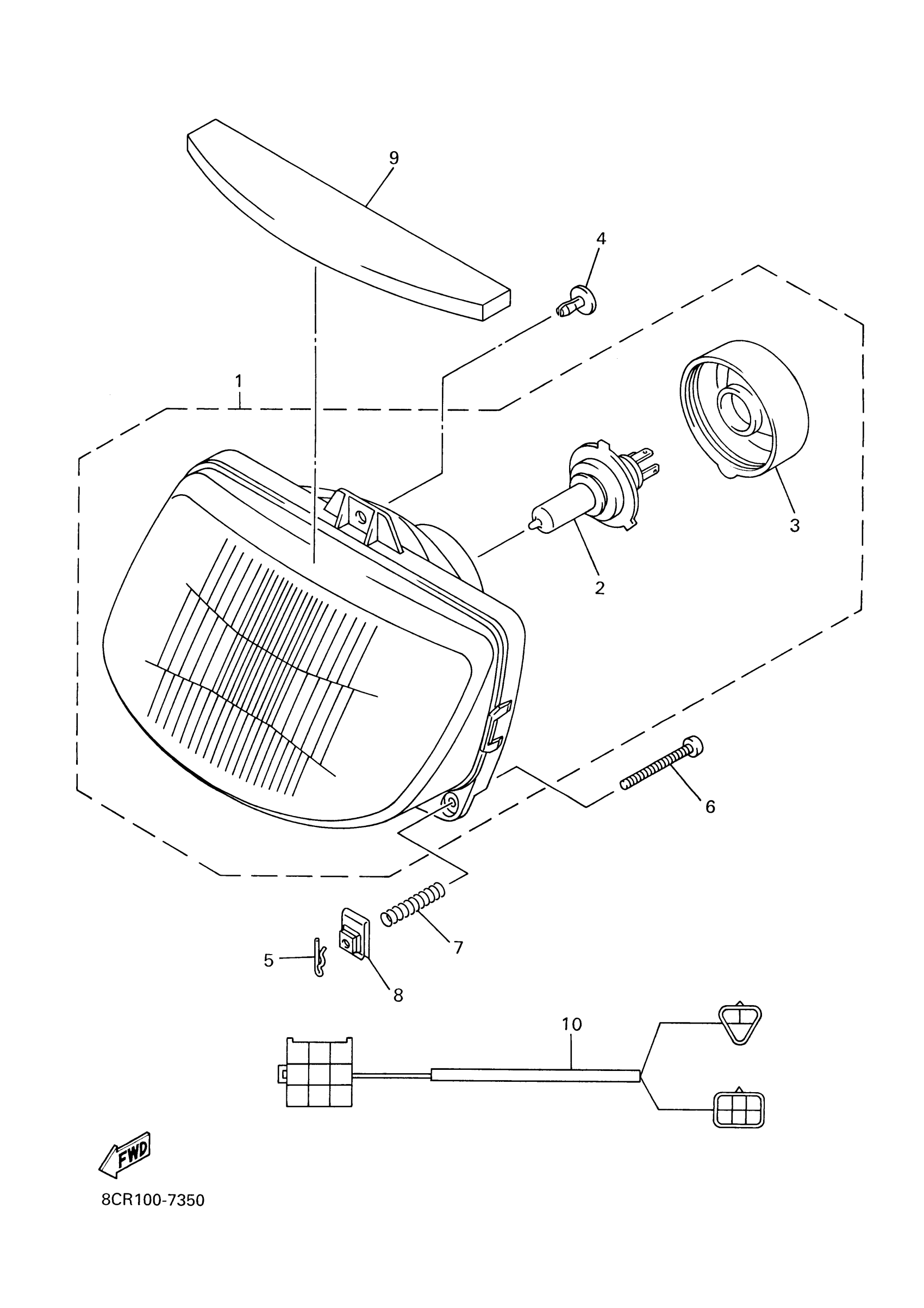

2001 Yamaha V-MAX 500 (VX500F) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

8CR-84310-00-00

1
Out of stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

COVER, SOCKET

8DN-84397-01-00

—

$22.37

In stock

4

RIVET

90269-06001-00

1

$5.42

In stock

5

CLIP

8K4-84374-00-00

1

$6.82

In stock

6

SCREW, ADJUSTING

8M6-84331-00-00

1

$14.80

In stock

7

SPRING, COMPRESSION

90501-124L0-00

1
Out of stock

8

NUT, SPRING

90183-051A0-00

1

$2.66

In stock

9

DAMPER, HEADLIGHT 1

8CR-84366-00-00

1
Out of stock

10

CORD, HEADLIGHT

8CH-84359-10-00

1
Out of stock
