2001 Yamaha V-MAX 500 (VX500F) Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 2001 Yamaha V-MAX 500 (VX500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

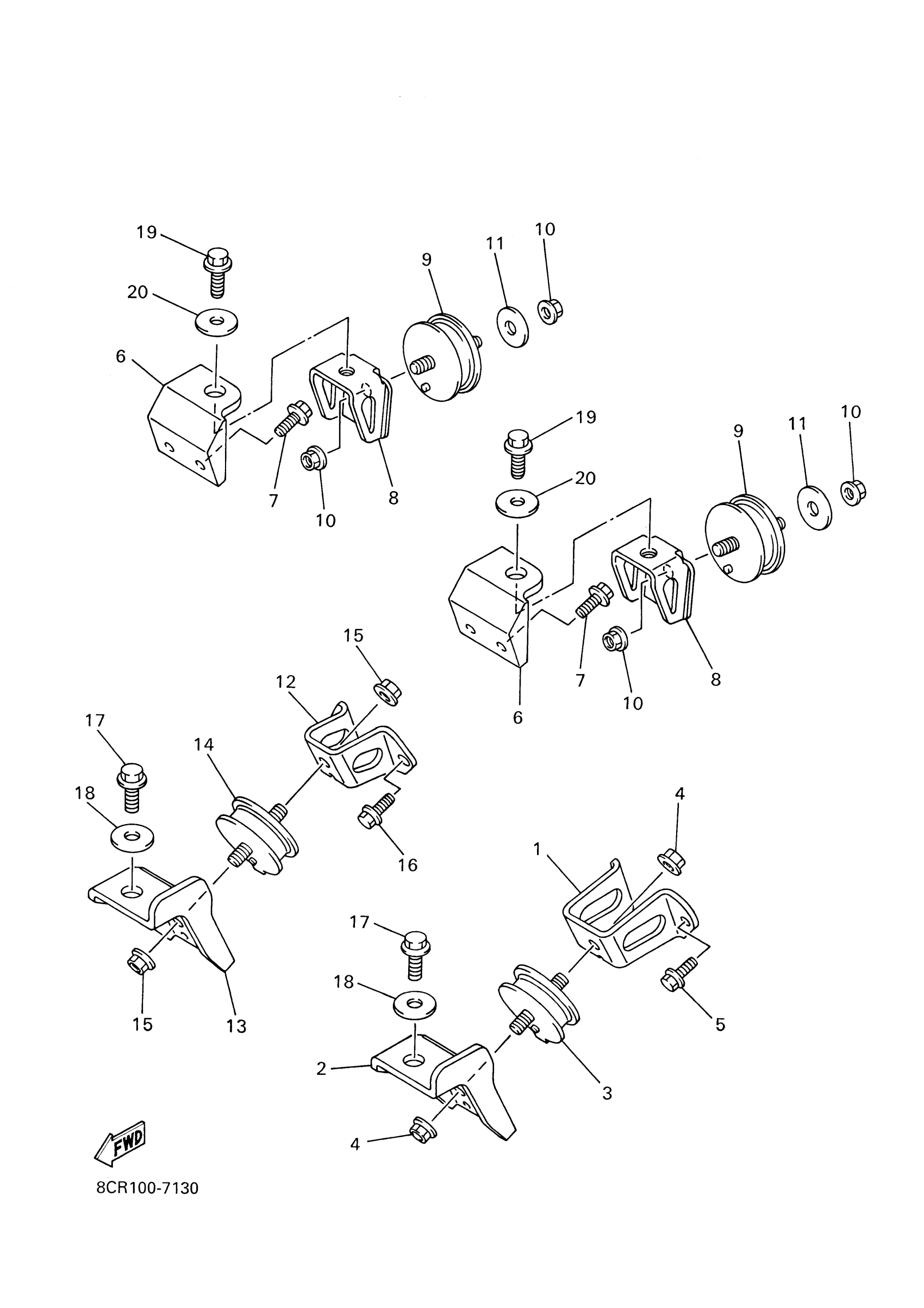

2001 Yamaha V-MAX 500 (VX500F) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT UPPER 1

8CR-21415-00-00

—

$17.31

In stock

2

BRACKET, FRONT LOWER 1

8CR-21417-00-00

—

$29.98

In stock

3

DAMPER 2

8CR-21486-00-00

1
Out of stock

4

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

5

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

6

BRACKET, REAR UPPER 1

8CR-21425-00-00

1
Out of stock

7

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

8

BRACKET, REAR LOWER 1

8CR-21427-01-00

1
Out of stock

9

DAMPER 2

8CR-21486-00-00

1
Out of stock

10

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

11

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

12

BRACKET, FRONT UPPER 2

8CR-21416-00-00

1
Out of stock

13

BRACKET, FRONT LOWER 1

8CR-21417-00-00

—

$29.98

In stock

14

DAMPER 2

8CR-21486-00-00

1
Out of stock

15

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

16

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

17

BOLT, FLANGE(JN5)

95817-12030-00

—

$7.02

In stock

18

WASHER, PLATE

90201-120U9-00

1
Out of stock

19

BOLT, FLANGE(3GD)

95817-10025-00

—

$6.17

In stock

20

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock
