2001 Yamaha V-Max 500 (VX500F) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2001 Yamaha V-Max 500 (VX500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

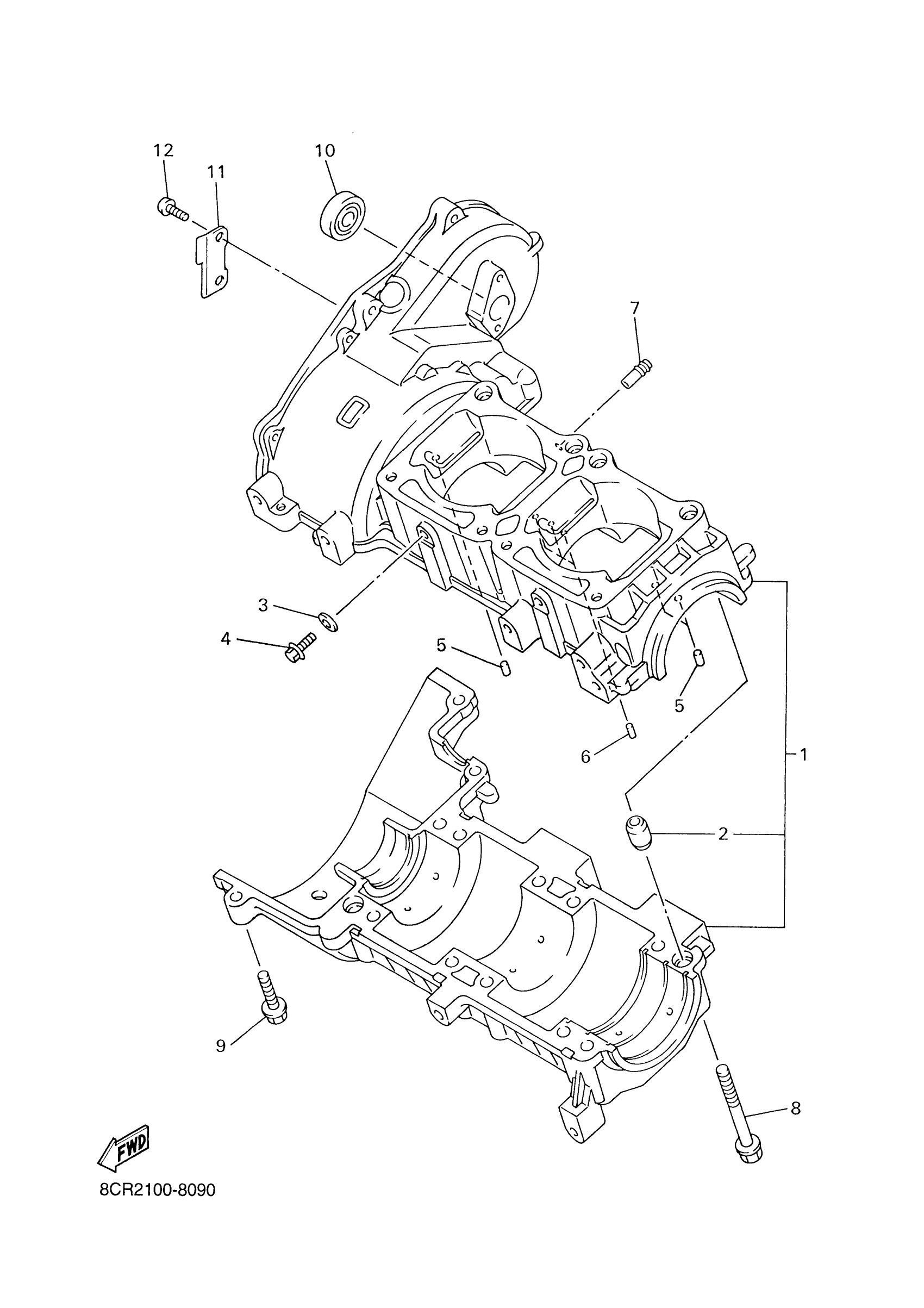

2001 Yamaha V-Max 500 (VX500F) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

8CR-15100-01-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

WASHER, PLATE 3411117500

90201-08087-00

1

$3.13

In stock

4

BOLT, SMALL FLANGE

95027-08016-00

1
Out of stock

5

PIN, DOWEL (8H1)

93604-07141-00

1

$1.35

In stock

6

PIN (2H7)

93603-10049-00

—
Out of stock

7

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

8

BOLT, FLANGE(JF2)

95817-08080-00

1

$3.37

In stock

9

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

10

BEARING(82M)

93306-20117-00

1
Out of stock

11

CLAMP

90461-12145-00

—
Out of stock

12

SCREW, PAN

98517-06012-00

1

$3.14

In stock
Crankshaft Piston →

More Engine diagrams
