- VX500EW (VMAX 500 LE (ELEC START)) 1996
TRACK DRIVE 2

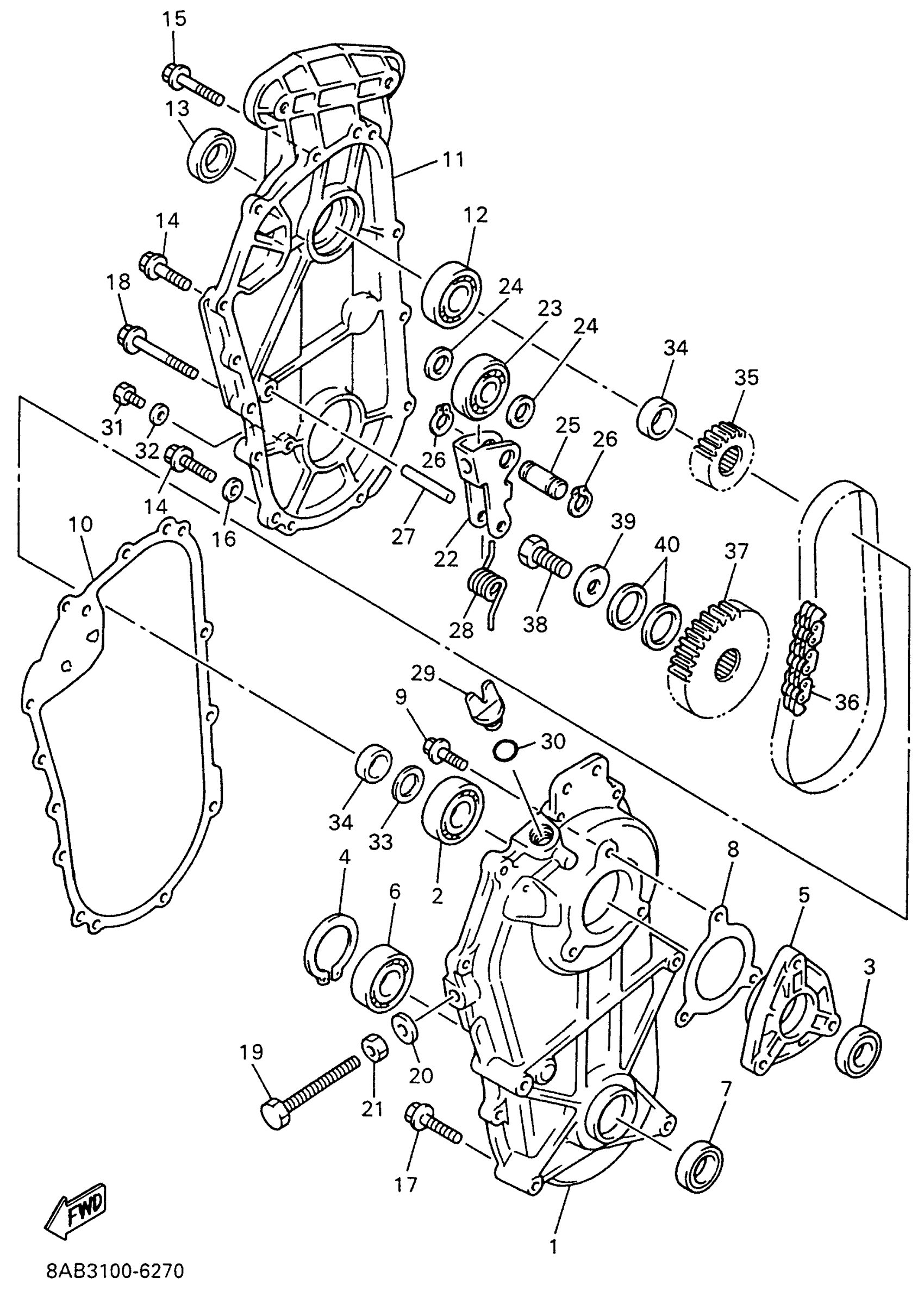

Yamaha VX500EW (VMAX 500 LE (ELEC START)) 1996 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
8AB-47541-01-00
$387.99
2
BEARING (80N)
93306-20570-00
Unavailable
3
OIL SEAL (25X44X6-810)
93102-25081-00
$5.60
4
CIRCLIP(26H)
99009-52500-00
$12.49
5
CAP 2
8AB-47559-00-00
Unavailable
6
BEARING (80N)
93306-20570-00
Unavailable
7
OIL SEAL (25X44X6-810)
93102-25081-00
$5.60
8
GASKET
8AB-47544-00-00
Unavailable
9
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
10
GASKET
8AB-47592-01-00
$29.99
11
CAP, HOUSING
8AB-47543-01-00
Unavailable
12
BEARING (30X)
93306-20447-00
$41.99
13
OIL SEAL (22X42X7)
93102-22014-00
$12.49
14
BOLT, FLANGE
95817-06035-00
$7.49
15
BOLT, FLANGE
95817-06045-00
$8.49
16
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
17
BOLT, FLANGE
95817-08040-00
Unavailable
18
BOLT, FLANGE
95817-08075-00
Unavailable
19
BOLT, HEXAGON (899 TRACK)
90101-10293-00
Unavailable
20
WASHER SEAL 256111730200
90210-10004-00
Unavailable
21
NUT (3WP1)
95317-10700-00
Unavailable
22
HOLDER
88T-47613-00-00
Unavailable
23
BRG,R-B 6304 52MM 144G NT
93306-30407-00
Unavailable
24
WASHER, PLATE(2WG)
90201-204M9-00
Unavailable
25
SHAFT 2
88T-12257-00-00
Unavailable
26
CIRCLIP(1AR)
99009-20400-00
Unavailable
27
SHAFT, TENSIONER
88T-12247-00-00
Unavailable
28
SPRING, TORSION
90508-324A8-00
Unavailable
29
PLUG, OIL
3Y1-15363-10-00
Unavailable
30
O-RING (646)
93210-19123-00
Unavailable
31
BOLT(3JP)
97017-06010-00
Unavailable
32
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
33
WASHER, PLATE (248-27226-00)
90201-25289-00
Unavailable
34
COLLAR(85T)
90387-250V9-00
Unavailable
35
SPROCKET, CHAIN DRIVE (20T)
89J-17682-00-00
Unavailable
35
SPROCKET, CHAIN DRIVE (21T)
89J-17682-10-00
Unavailable
35
SPROCKET, CHAIN DRIVE (17T)
89J-17682-70-00
Unavailable
35
SPROCKET, CHAIN DRIVE (18T)
89J-17682-80-00
Unavailable
35
SPROCKET, CHAIN DRIVE (19T)
89J-17682-91-00
Unavailable
36
CHAIN (68L)
94860-02068-00
Unavailable
36
CHAIN (70L)
94860-02070-00
Unavailable
36
CHAIN (72L)
94860-02072-00
Unavailable
37
SPROCKET, CHAIN DRIVEN (33T)
89J-47587-30-00
Unavailable
37
SPROCKET, CHAIN DRIVEN (35T)
89J-47587-50-00
Unavailable
37
SPROCKET, CHAIN DRIVEN (37T)
89J-47587-70-00
Unavailable
37
SPROCKET, CHAIN DRIVEN (39T)
89J-47587-90-00
Unavailable
38
BOLT(6TD)
97017-10025-00
Unavailable
39
WASHER, PLATE(8BV)
90201-100S7-00
Unavailable
40
WASHER, PLATE (248-27226-00)
90201-25289-00
Unavailable
