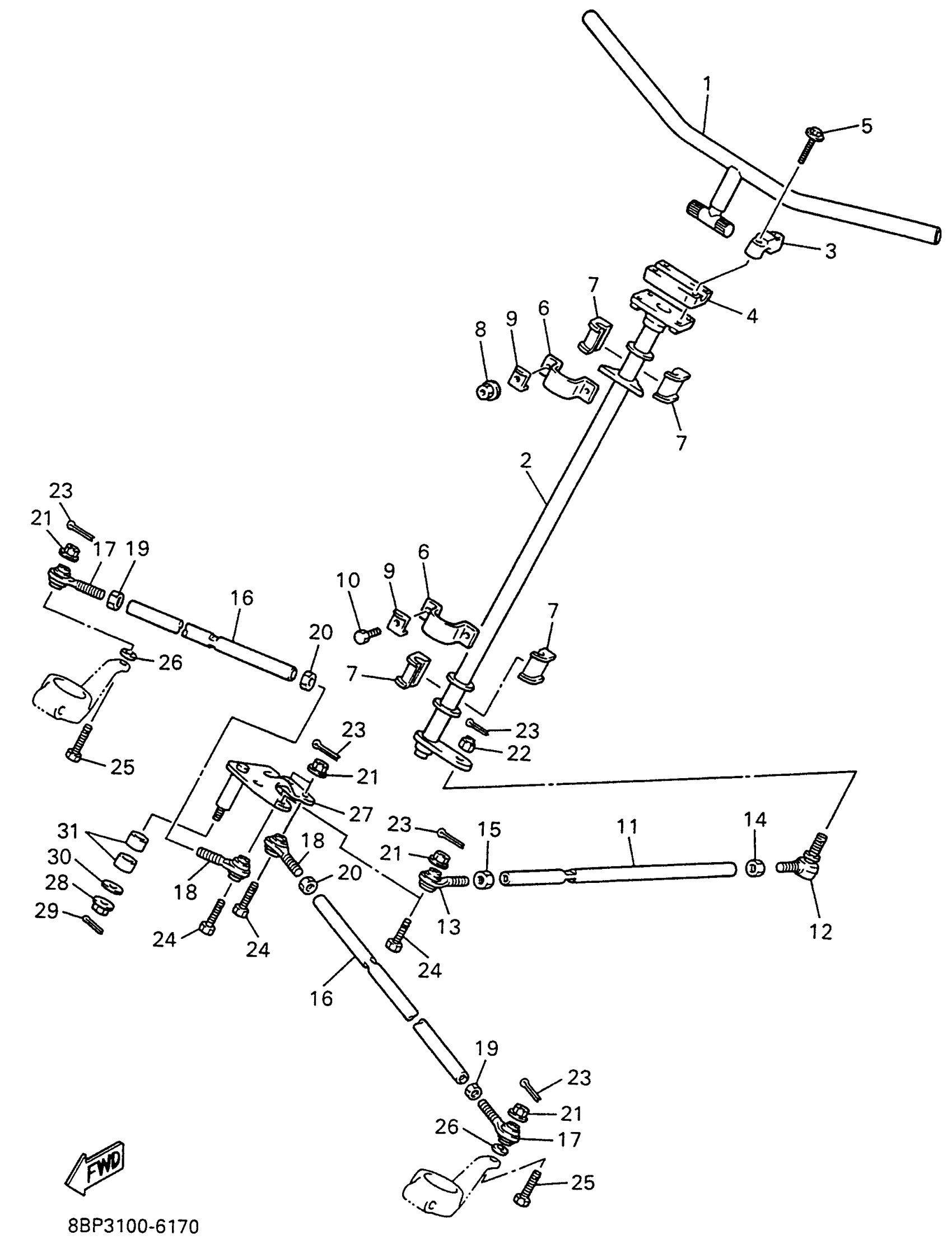

Yamaha VX500EW (VMAX 500 LE (ELEC START)) 1996 STEERING Diagram

#

Description
Price

1

COLUMN,STEERING

8AB-23811-00-00

Unavailable

2

COLUMN, STEERING 2

8AB-23813-00-00

Unavailable

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

4

HANDLE, HOLDER

164-23441-01-98

Unavailable

5

BOLT, FLANGE

95817-08055-00

$4.21

6

BRACKET, STEERING LOWER

84M-23868-00-00

Unavailable

7

BEARING, STEERING

8F3-23812-00-00

Unavailable

8

NUT, NYLON

95717-08300-00

$2.70

9

WASHER, LOCK 1

8AC-23894-01-00

$4.78

10

BOLT, HEXAGON

97017-08020-00

$9.49

11

ROD, STEERING RELAY

8AB-23821-00-00

Unavailable

12

JOINT, UNIVERSAL 1

86X-23841-00-00

$59.99

13

JOINT, UNIVERSAL 3

87S-23847-01-00

$50.99

14

NUT (3WP1)

95317-10700-00

$8.49

15

NUT, HEXAGON (8A5)

90170-10186-00

$10.49

16

ROD, TIE

8AB-23831-00-00

Unavailable

17

JOINT, UNIVERSAL 2

87S-23845-01-00

Unavailable

18

JOINT, UNIVERSAL 3

87S-23847-01-00

$50.99

19

NUT (3WP1)

95317-10700-00

$8.49

20

NUT, HEXAGON (8A5)

90170-10186-00

$10.49

21

NUT, NYLON

95707-10300-00

Unavailable

22

NUT, SELF-LOCKING (8J8)

90185-10085-00

Unavailable

23

PIN, COTTER

91490-25020-00

Unavailable

24

BOLT, WITH HOLE

90102-10031-00

Unavailable

25

BOLT, PIN HOLE (8M6)

90102-10044-00

Unavailable

26

WASHER PLATE (3L6)

90201-08759-00

Unavailable

27

ARM, IDLER

8AB-23826-00-00

Unavailable

28

NUT, NYLON

95717-12300-00

Unavailable

29

PIN, COTTER

91490-30030-00

Unavailable

30

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

31

BUSH, BIMETAL FORMED

90384-20231-00

Unavailable
