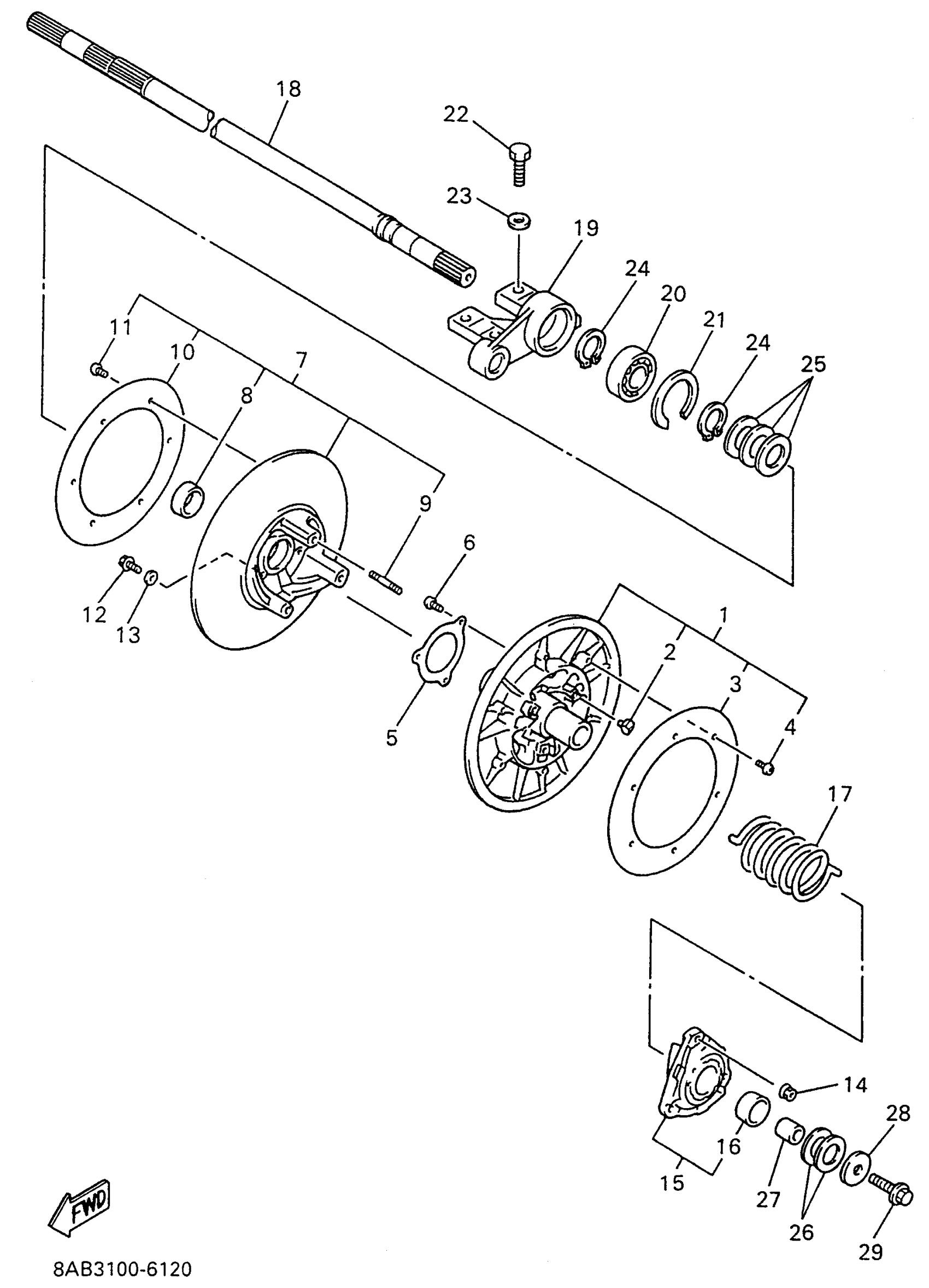

Yamaha VX500EW (VMAX 500 LE (ELEC START)) 1996 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

8CM-17660-10-00

Unavailable

2

SHOE, RAMP

8AV-17688-10-00

$32.99

3

PLATE 1

8CM-17665-00-00

Unavailable

4

GASKET, EXHAUST

98507-05008-00

$3.55

5

STOPPER, HOLDER

8BV-17656-00-00

$22.99

6

SCREW, BINDING

98907-06016-00

$9.49

7

SECONDARY SLIDING SHEAVE

8CM-17670-10-00

Unavailable

8

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

9

BOLT, STUD 3

95617-08630-00

$4.99

10

PLATE 2

8CM-17675-00-00

Unavailable

11

GASKET, EXHAUST

98507-05008-00

$3.55

12

BOLT, WASHER BASED(8BN)

90105-06734-00

$3.50

13

WASHER, PLATE (22K)

90201-061H1-00

$4.72

13

WASHER, PLATE (371)

90201-06431-00

$5.60

14

NUT(8BN)

90179-08655-00

$10.49

15

SEAT SPRING SET

8BV-17604-11-00

Unavailable

15

SEAT SPRING SET

8BV-17604-31-00

Unavailable

15

SEAT SPRING SET

8BV-17604-91-00

Unavailable

16

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

17

SPRING, TORSION(8BF)

90508-500B1-00

Unavailable

17

SPRING, TORSION(8AB)

90508-536A9-00

Unavailable

17

SPRING, TORSION(8BN)

90508-556A2-00

Unavailable

17

SPRING, TORSION(8BT)

90508-556A7-00

Unavailable

18

SHAFT, SECONDARY

8CM-17681-00-00

Unavailable

19

HOUSING, BEARING

8AB-47631-00-00

Unavailable

20

BEARING(83R)

93306-20582-00

Unavailable

21

CIRCLIP(26H)

99009-52500-00

Unavailable

22

BOLT, HEXAGON

97017-08020-00

Unavailable

23

WASHER(6TA)

92907-08600-00

Unavailable

24

CIRCLIP (256)

93410-25017-00

Unavailable

25

WASHER, PLATE (8R6)

90201-252F1-00

Unavailable

25

WASHER, PLATE (888)

90201-25526-00

Unavailable

25

WASHER, PLATE (888)

90201-25527-00

Unavailable

26

WASHER, PLATE (T=0.5)

90201-222F0-00

Unavailable

26

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

27

COLLAR

90387-1405J-00

Unavailable

28

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

29

BOLT, WASHER BASED

90105-10741-00

Unavailable
