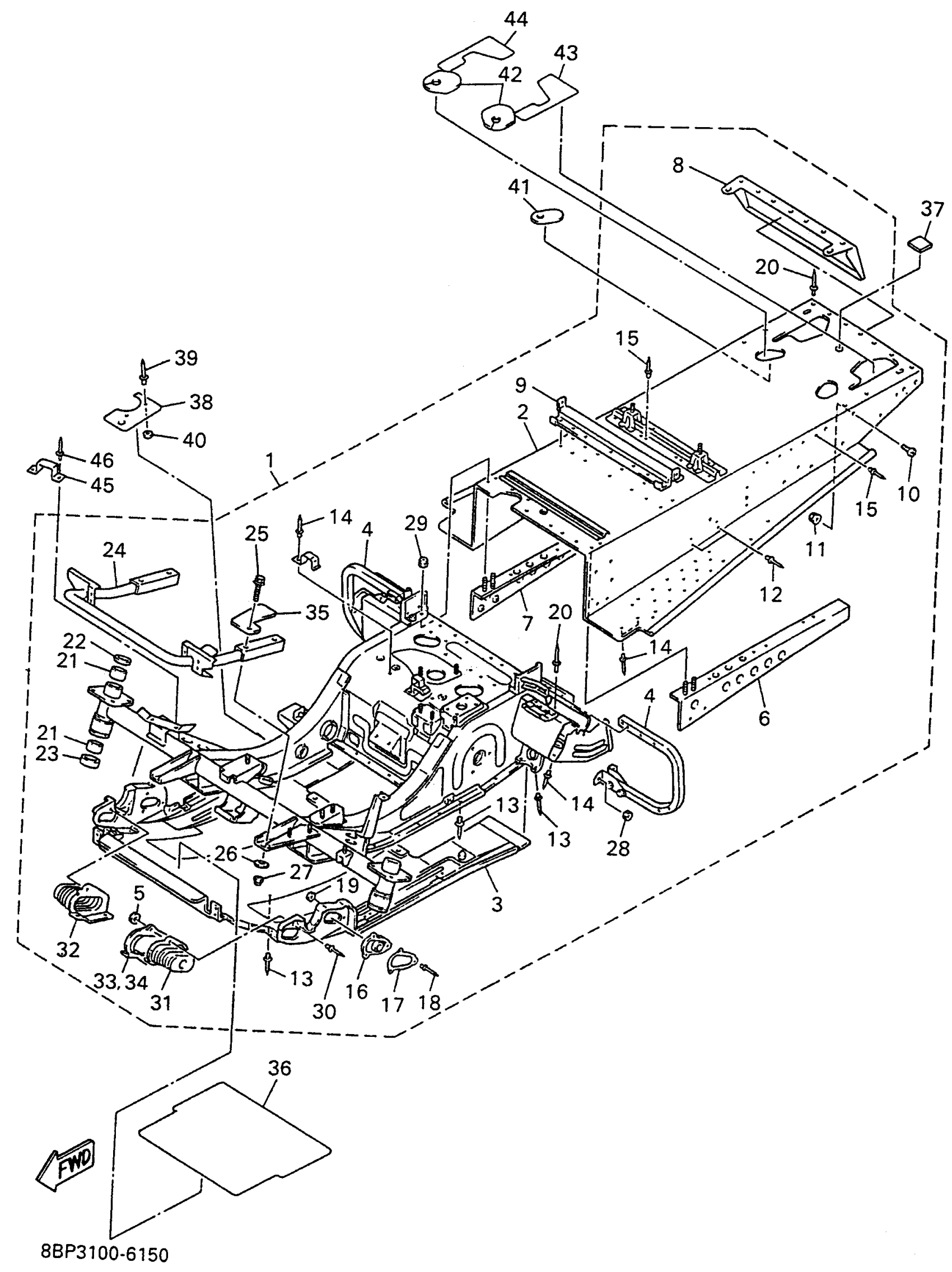

Yamaha VX500EW (VMAX 500 LE (ELEC START)) 1996 FRAME Diagram
#
1
FRAME COMP.
8BP-21910-00-00
Unavailable
2
. PANEL, FRAME
8CL-21911-10-00
Unavailable
3
. PANEL, SUB FRAME 1
8AB-21912-00-00
Unavailable
4
. REINFORCEMENT, FOOTREST 1
8AB-21926-00-00
Unavailable
5
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
6
. PATCH 4
8AB-21964-00-00
Unavailable
7
. PATCH 5
8AB-21965-00-00
Unavailable
8
RNFCMNT,FRAME REAR
89A-21923-20-00
Unavailable
9
. BRACKET, SEAT FITTING
8AB-21946-00-00
Unavailable
10
SCREW,BINDING
98907-08014-00
Unavailable
11
NUT, FLANGE(JN5)
95707-08500-00
$3.13
12
RIVET, BLIND (8K1)
90267-40076-00
$8.49
13
RIVET, BLIND
90267-48018-00
$9.49
14
RIVET, BLIND (8J5)
90267-48057-00
$8.49
15
RIVET(89R)
90269-04044-00
Unavailable
16
COVER 1
8M6-2198F-00-00
Unavailable
17
SPACER
8M6-21998-00-00
Unavailable
18
RIVET, BLIND
90267-40029-00
Unavailable
19
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
20
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
21
BUSH, BIMETAL FORMED (8M6)
90384-36134-00
Unavailable
22
OIL SEAL (8M6)
93102-36232-00
Unavailable
23
OIL SEAL (8M6)
93103-36117-00
Unavailable
24
. BUMPER, FRONT 2
8AB-77512-00-00
Unavailable
25
BOLT, FLANGE
95817-08040-00
Unavailable
26
WASHER, PLATE (3Y6)
90201-083A6-00
Unavailable
27
NUT, NYLON
95717-08300-00
Unavailable
28
NUT, NYLON
95707-06300-00
Unavailable
29
NUT, NYLON
95717-08300-00
Unavailable
30
RIVET, BLIND
90267-47197-00
Unavailable
31
. COVER 1
8AB-2198F-00-00
Unavailable
32
. COVER 2
8AB-2198G-00-00
Unavailable
33
. PLATE, STRING BRACKET 1 (L, H)
82M-2195E-00-00
Unavailable
34
. PLATE, STRING BRACKET 2 (R, H)
82M-2195F-00-00
Unavailable
35
. COVER 3
8AB-2198J-00-00
Unavailable
36
SHIELD, HEAT
8AB-2199H-00-00
Unavailable
37
DAMPER
5H0-8235Y-M0-00
Unavailable
38
SHIELD, NOISE
8AB-2199F-00-00
Unavailable
39
RIVET, BLIND
90267-48018-00
$9.49
40
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
41
PATCH 5
82M-21965-00-00
Unavailable
42
PATCH 5
88R-21965-00-00
Unavailable
43
COVER 6
8AB-1246J-00-00
Unavailable
44
COVER 7
8AB-1246K-00-00
Unavailable
45
STAY, MUFFER
8CM-2194J-10-00
Unavailable
46
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
