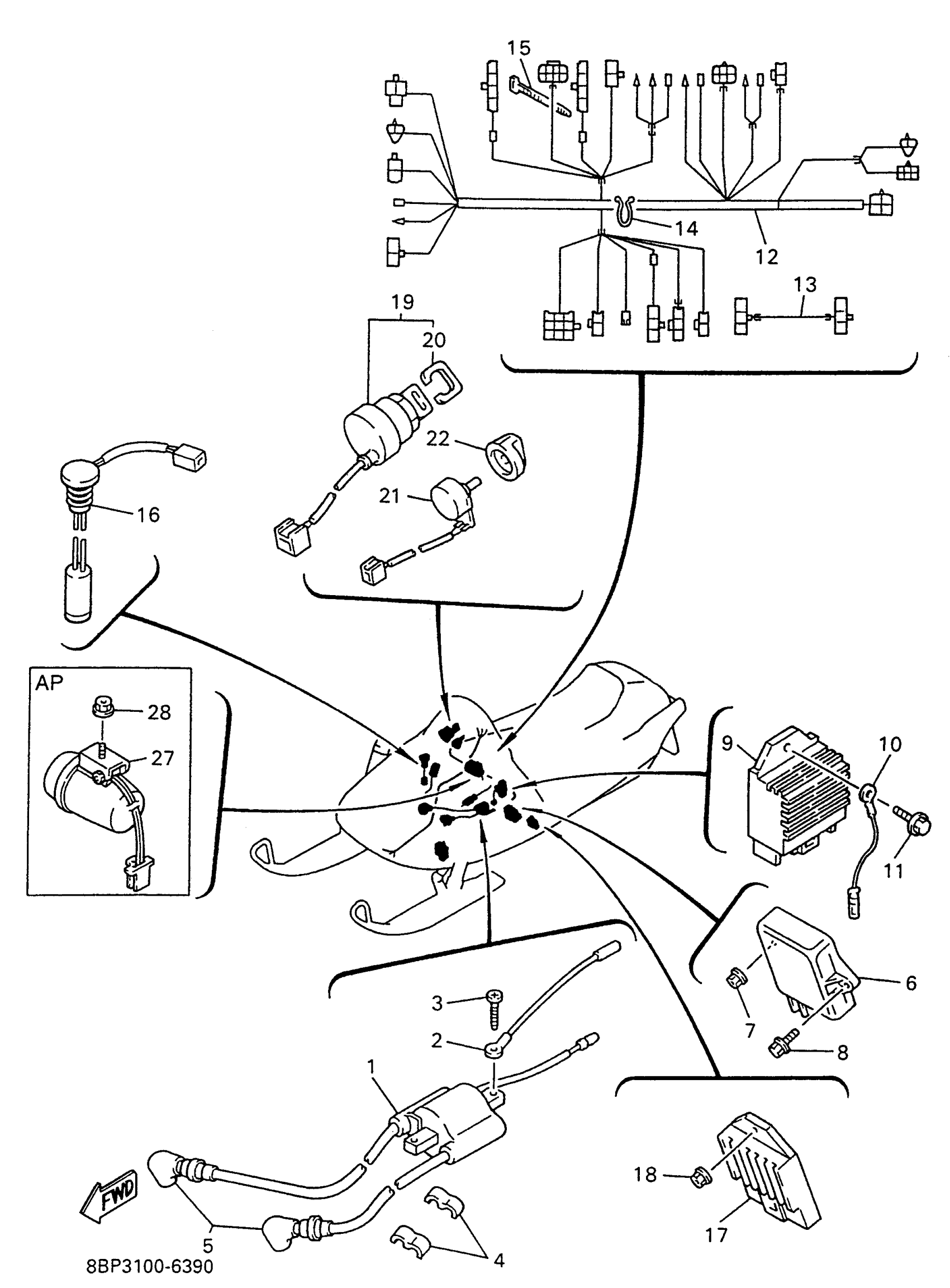

Yamaha VX500EW (VMAX 500 LE (ELEC START)) 1996 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

8AB-82310-07-00

$85.99

2

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

3

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

4

CLAMP, CORD

861-82361-00-00

Unavailable

5

PLUG CAP ASSY

8DG-82370-00-00

$49.99

6

C.D.I. UNIT ASSEMBLY

8AB-85540-00-00

Unavailable

7

NUT, FLANGE(4MV)

95707-06500-00

$1.23

8

BOLT, FLANGE

95817-06016-00

$2.75

9

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

$95.99

10

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

11

BOLT, FLANGE

95817-06016-00

$2.75

12

WIRE HARNESS ASSEMBLY

8AB-82590-10-00

Unavailable

13

WIRE, LEAD

8AB-8471G-00-00

Unavailable

14

CLAMP

90464-20031-00

Unavailable

15

BAND

341-26397-01-00

Unavailable

16

OIL LEVEL GAUGE ASSY

3E1-85720-15-00

Unavailable

17

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

18

NUT, FLANGE(4MV)

95707-06500-00

$1.23

19

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

20

CAP, KEY

526-82579-00-00

Unavailable

21

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

22

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable

23

STOP SWITCH ASSY

8H8-82550-01-00

Unavailable

24

NUT

8H8-82557-00-00

Unavailable

25

CAP, SWITCH

8H8-82552-09-00

Unavailable

26

WIRE, SUB-LEAD

89L-82318-00-00

Unavailable

27

BUZZER

8CL-83383-00-00

Unavailable

28

NUT,SELF-LOCKING

95607-06200-00

Unavailable
